Toyota 3F-E - INSPECTION OF IGNITION COIL; INSPECTION OF DISTRIBUTOR

IGO865

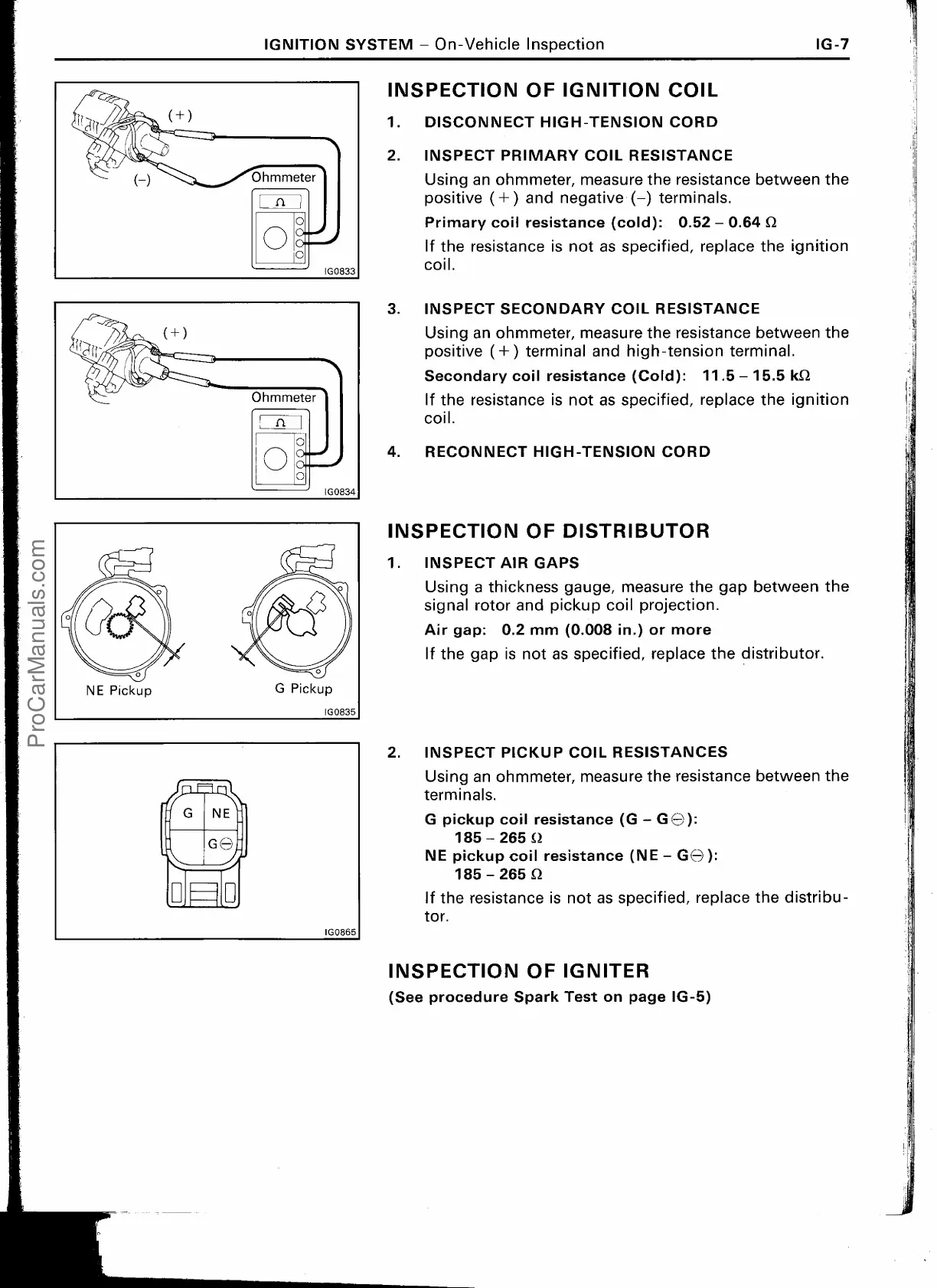

IGNITION SYSTEM — On-Vehicle Inspection IG-7
I NSPECTION OF IGNITION COIL
1.
DISCONNECT HIGH-TENSION CORD
2. INSPECT PRIMARY COIL RESISTANCE
Using an ohmmeter, measure the resistance between the
positive (+) and negative (—) terminals.
Primary coil resistance (cold): 0.52 — 0.64 Q
If the resistance is not as specified, replace the ignition
coil.
3.
INSPECT SECONDARY COIL RESISTANCE
Using an ohmmeter, measure the resistance between the
positive (+) terminal and high-tension terminal.
Secondary coil resistance (Cold): 11 .5 — 15.5 kQ
If the resistance is not as specified, replace the ignition
coil.
4. RECONNECT HIGH-TENSION CORD
I
NSPECTION OF DISTRIBUTOR
1.
INSPECT AIR GAPS
Using a thickness gauge, measure the gap between the
signal rotor and pickup coil projection.
Air gap: 0.2 mm (0.008 in.) or more
If the gap is not as specified, replace the distributor.
2.
INSPECT PICKUP COIL RESISTANCES
Using an ohmmeter, measure the resistance between the
terminals.
G pickup coil resistance (G — GO):
185 — 265 S2
NE pickup coil resistance (NE — Ge):
185 — 265 S2
If the resistance is not as specified, replace the distribu-
tor.
I
NSPECTION OF IGNITER
(See procedure Spark Test on page IG-5)
