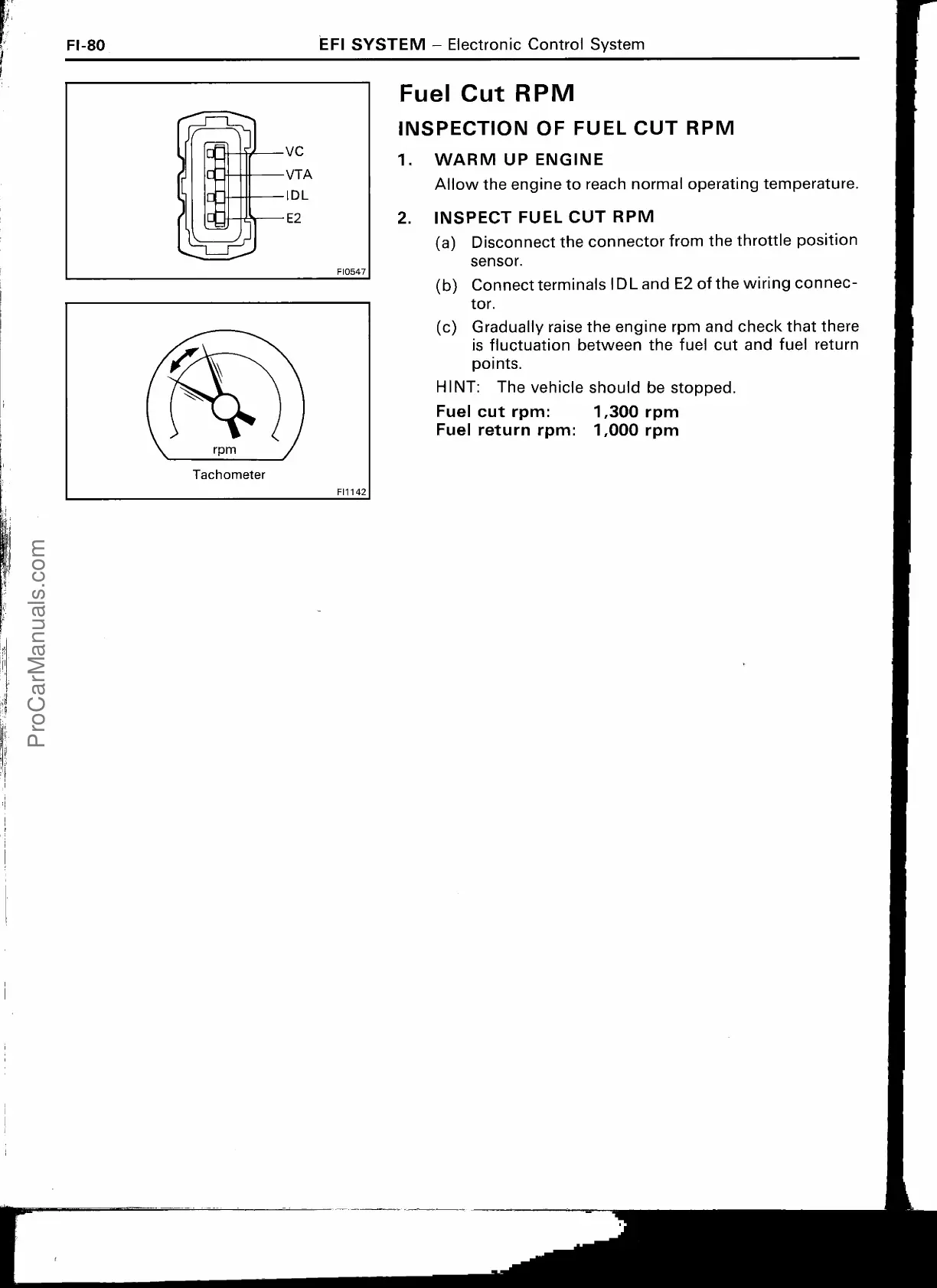

FI-80
EFI SYSTEM —
Electronic Control System
Fuel Cut RPM
I
NSPECTION OF FUEL CUT RPM
1.
WARM UP ENGINE
Allow the engine to reach normal operating temperature.
2.
I
NSPECT FUEL CUT RPM
(a)
Disconnect the connector from the throttle position
sensor.
(b)
Connect terminals I DL and E2 of the wiring connec-
tor.
(c)
Gradually raise the engine rpm and check that there
is fluctuation between the fuel cut and fuel return
points.
HINT: The vehicle should be stopped.
Fuel cut rpm:
1,300 rpm
Fuel return rpm: 1,000 rpm
