Toyota 3F-E - Disassembly of Cylinder Head

EM4359
EX
IN^
NOTE: Arrange the valves, v^
tainers (or valve rotators) in c
l 2W
1
2 3
4
5
6
EM1 413
EM1366
ENGINE MECHANICAL — Cylinder Head
EM-21
..t

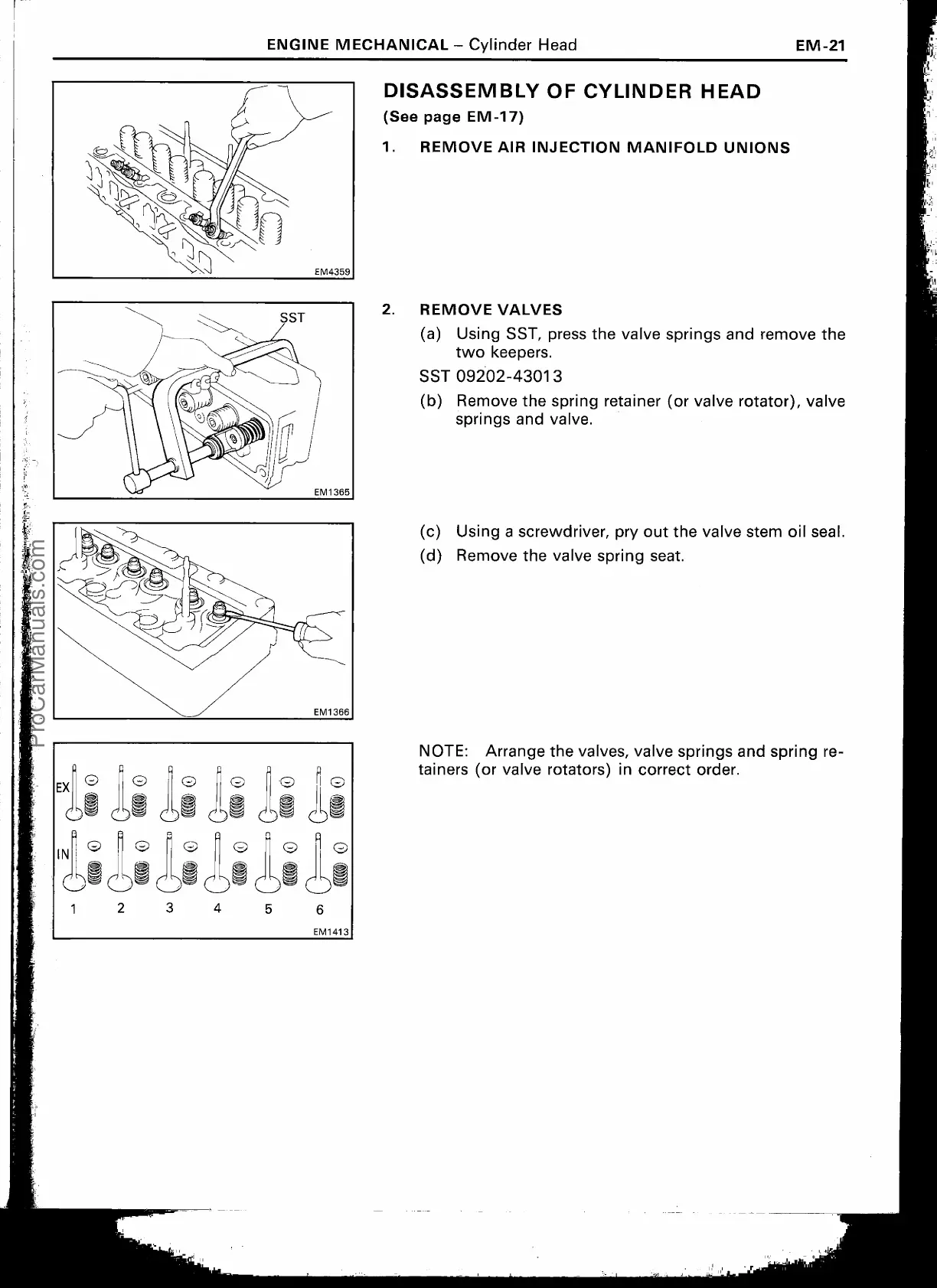

DISASSEMBLY OF CYLINDER HEAD
(See page EM-17)
1.
REMOVE AIR INJECTION MANIFOLD UNIONS
2.
REMOVE VALVES
(a)
Using SST, press the valve springs and remove the
t wo keepers.
SST 09202-43013
(b)
Remove the spring retainer (or valve rotator), valve
springs and valve.
(c)
Using a screwdriver, pry out the valve stem oil seal
(d)
Remove the valve spring seat.
