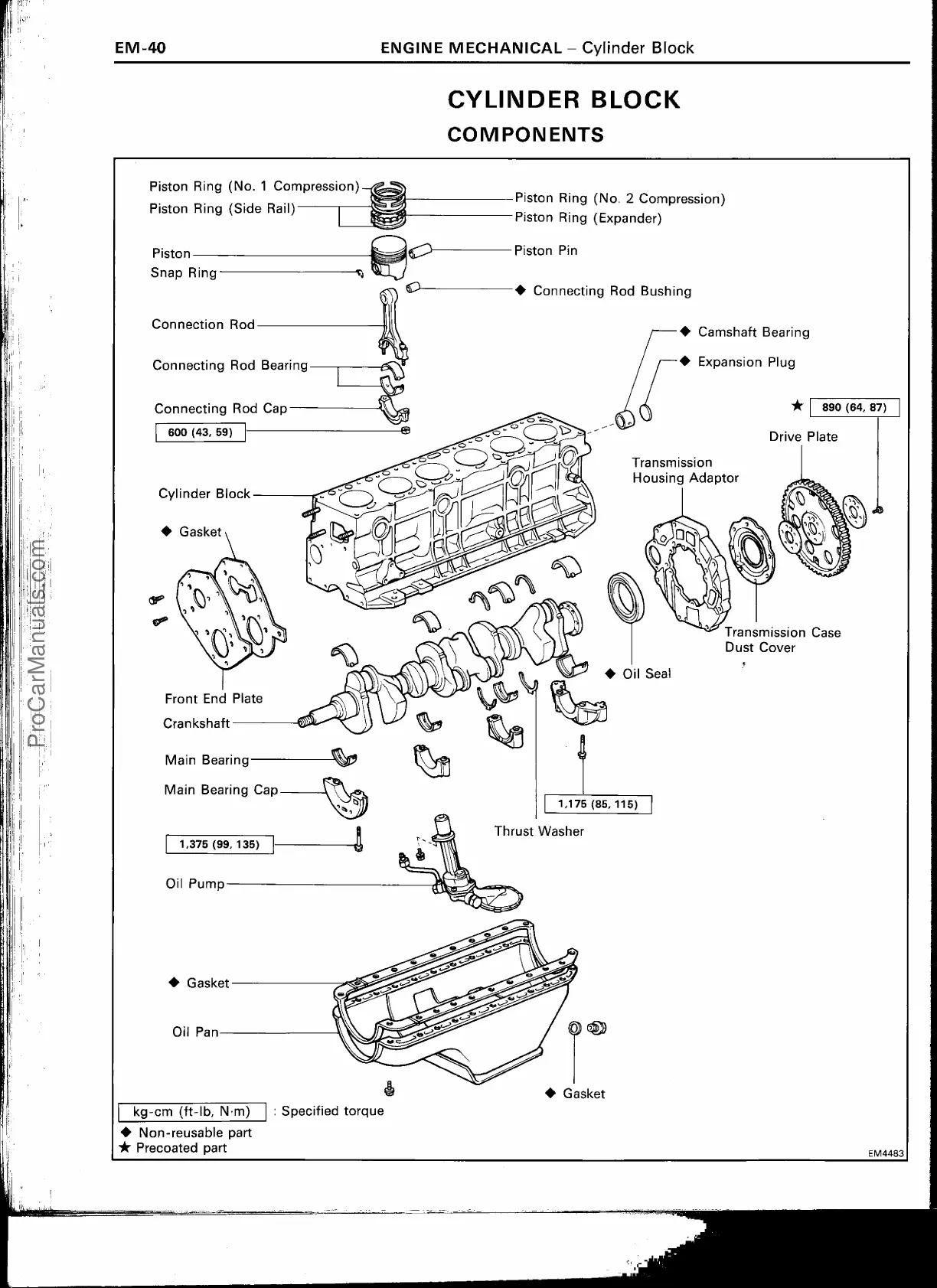

Toyota 3F-E - DISASSEMBLY OF CYLINDER BLOCK

Connection Rod
Connecting Rod Bearing
Connecting Rod Cap
♦
Camshaft Bearing
♦
Expansion Plug
Piston Ring (No. 1 Compression
Piston Ring (Side Rail)
Piston
Snap Ring
Piston Ring (No. 2 Compression)
Piston Ring (Expander)
600 (43, 59)
Cylinder Block
Drive Plate
kg-cm (ft-lb, N•m)
♦
Non-reusable part
* Precoated part
: Specified torque
EM4483
*
890 (64, 87)
EM-40 ENGINE MECHANICAL —
Cylinder Block
CYLINDER BLOCK
COMPONENTS
