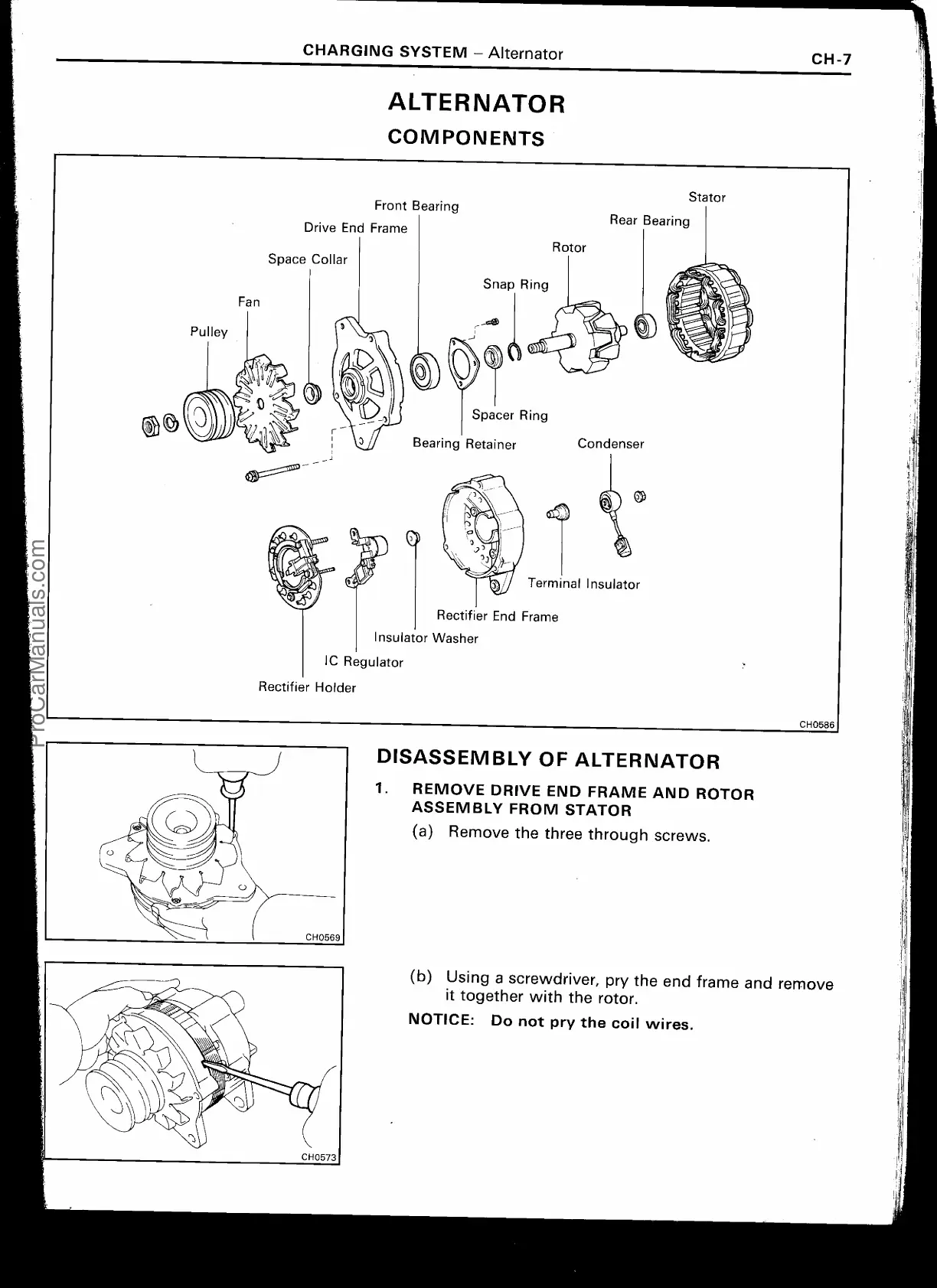

Toyota 3F-E - ALTERNATOR COMPONENTS; DISASSEMBLY OF ALTERNATOR

Terminal Insulator
Rectifier End Frame
Insulator Washer
IC Regulator
Rectifier Holder
CH0586
DISASSEMBLY OF ALTERNATOR
1.
REMOVE DRIVE END FRAME AND ROTOR
ASSEMBLY FROM STATOR
(a)
Remove the three through screws.
(b)
Using a screwdriver, pry the end frame and remove
it together with the rotor.
NOTICE: Do not pry the coil wires.
