Toyota 3F-E - Removal of Fuel Pump

Fuel Pump
Fuel Pump Bracket
35 (30 in-lb, 3.4)
Clip
Fuel Hose
kg-cm (ft-lb, N•m)
Specified torque
Fuel Pump Filter
♦
Clip
Rubber Cushion
FI-48
EFI SYSTEM - Fuel System

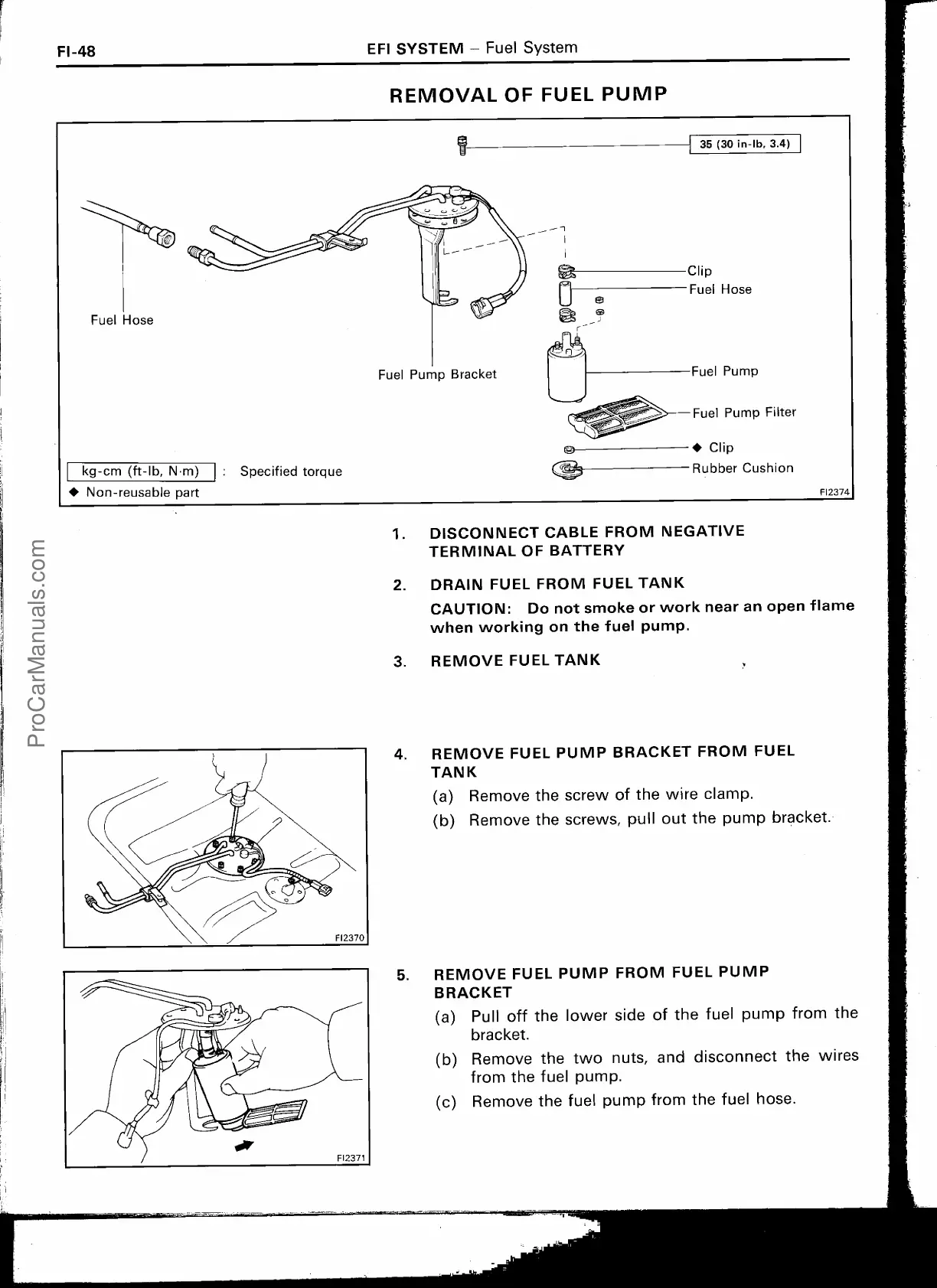

REMOVAL OF FUEL PUMP
♦
Non-reusable part
F12374
1.
DISCONNECT CABLE FROM NEGATIVE
TERMINAL OF BATTERY
2.
DRAIN FUEL FROM FUEL TANK
CAUTION: Do
not smoke or work near an open flame
when working on the fuel pump.
3.
REMOVE FUEL TANK
4.
REMOVE FUEL PUMP BRACKET FROM FUEL
TANK
(a)
Remove the screw of the wire clamp.
(b)
Remove the screws, pull out the pump bracket.
5.
REMOVE FUEL PUMP FROM FUEL PUMP
BRACKET
(a)
Pull off the lower side of the fuel pump from the
bracket.
(b)
Remove the two nuts, and disconnect the wires
from the fuel pump.
(c)
Remove the fuel pump from the fuel hose.
