Grommet
0-Ring
IIZtI
LI
J
t
4.
Install the injector to delivery pipe and cylinder head as
shown in the illustration.

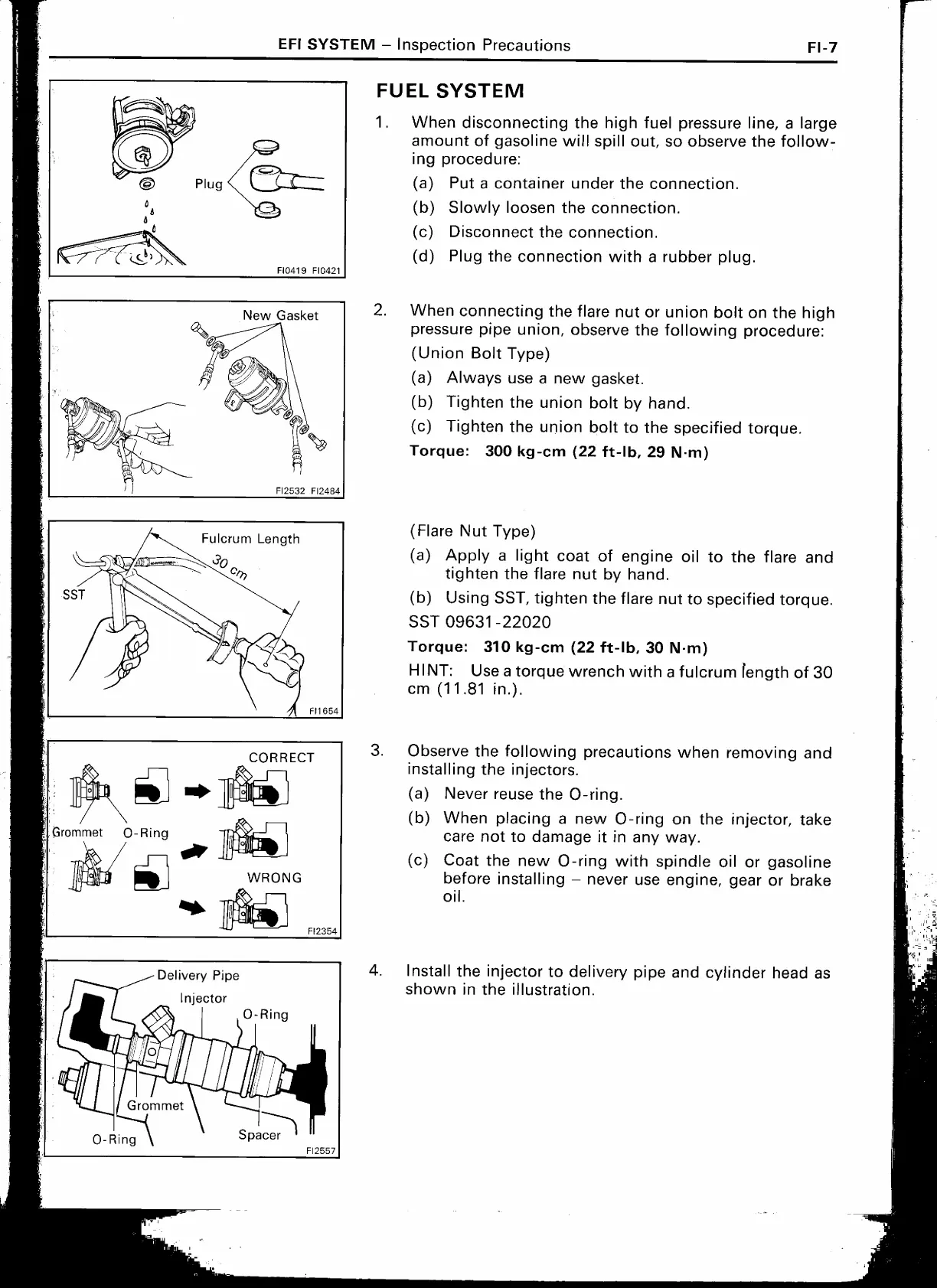

EFI SYSTEM —
Inspection Precautions
FI-7
FUEL SYSTEM
1.
When disconnecting the high fuel pressure line, a large
amount of gasoline will spill out, so observe the follow-
ing procedure:
Plug
(a) Put a container under the connection.
(b)
Slowly loosen the connection.
(c)
Disconnect the connection.
(d)
Plug the connection with a rubber plug.
F10419 F10421
1
Fulcrum Length
'
\cam
SST
F116541
2.
When connecting the flare nut or union bolt on the high
pressure pipe union, observe the following procedure:
(
Union Bolt Type)
(a)
Always use a new gasket.
(b)
Tighten the union bolt by hand.
(c)
Tighten the union bolt to the specified torque.
Torque: 300 kg-cm (22 ft-lb, 29 N•m)
(Flare Nut Type)
(a)
Apply a light coat of engine oil to the flare and
tighten the flare nut by hand.
(b)
Using SST, tighten the flare nut to specified torque.
SST 09631 -22020
Torque: 310 kg-cm (22 ft-lb, 30 N•m)
HINT: Use a torque wrench with a fulcrum length of 30
cm (11.81 in.).
3.
Observe the following precautions when removing and
installing the injectors.
(a)
Never reuse the 0-ring.
(b)
When placing a new 0-ring on the injector, take
care not to damage it in any way.
(c)
Coat the new 0-ring with spindle oil or gasoline
before installing — never use engine, gear or brake
oil.
