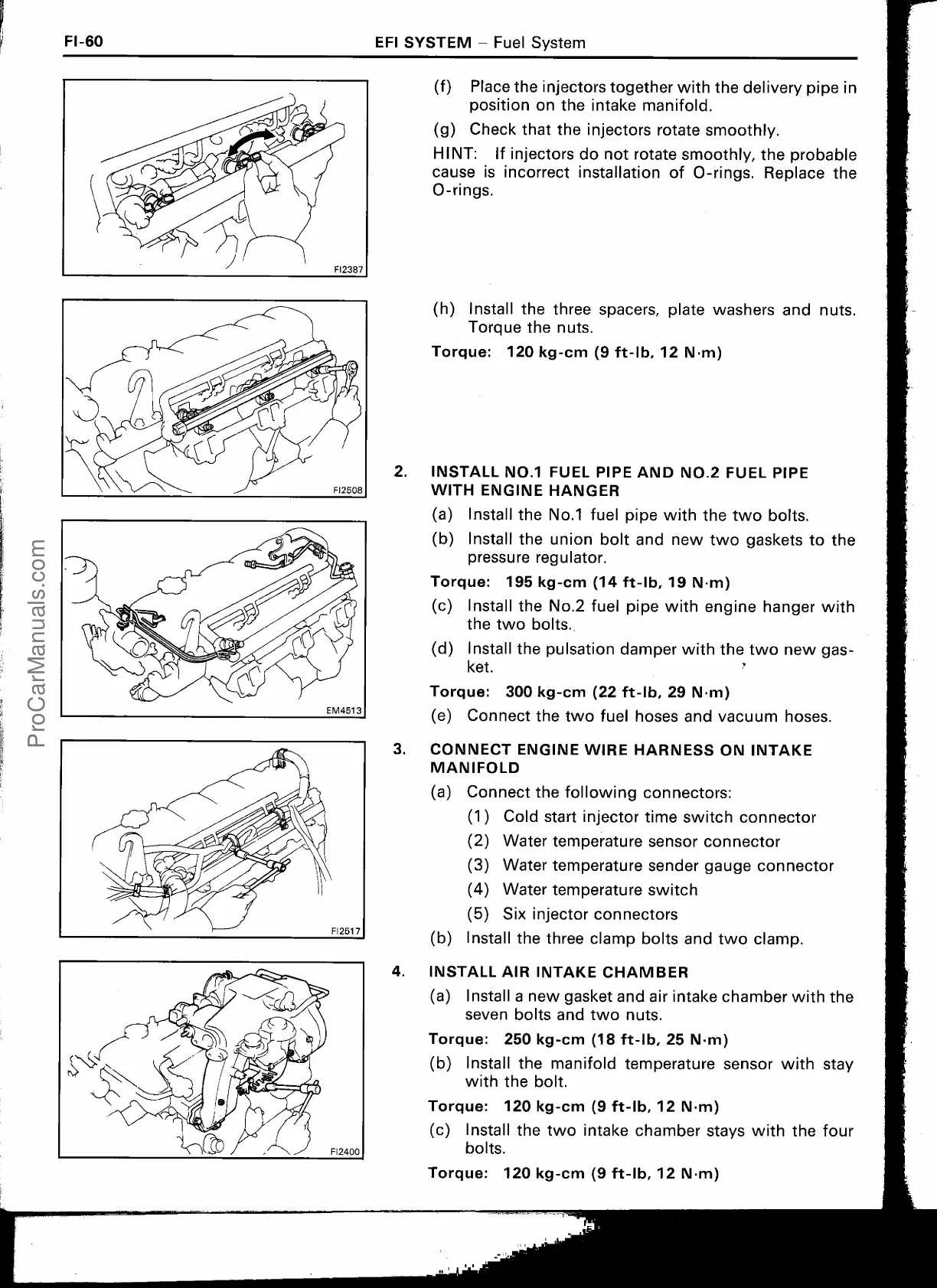

FI-60
EFI SYSTEM - Fuel System
(f)
Place the injectors together with the delivery pipe in
position on the intake manifold.
(g)
Check that the injectors rotate smoothly.
HINT: If injectors do not rotate smoothly, the probable
cause is incorrect installation of 0-rings. Replace the
0-rings.
(h)
Install the three spacers, plate washers and nuts.
Torque the nuts.
Torque: 120 kg-cm (9 ft-lb, 12 N•m)
2.
INSTALL NO.1 FUEL PIPE AND NO.2 FUEL PIPE
WITH ENGINE HANGER
(a)
Install the No.1 fuel pipe with the two bolts.
(b)
Install the union bolt and new two gaskets to the
pressure regulator.
Torque: 195 kg-cm (14 ft-lb, 19 N•m)
(c)
Install the No.2 fuel pipe with engine hanger with
the two bolts.
(d)
Install the pulsation damper with the two new gas-
ket.
Torque: 300 kg-cm (22 ft-lb, 29 N•m)
(e)
Connect the two fuel hoses and vacuum hoses.
3.
CONNECT ENGINE WIRE HARNESS ON INTAKE
MANIFOLD
(a) Connect the following connectors:
(1)
Cold start injector time switch connector
(2)
Water temperature sensor connector
(3)
Water temperature sender gauge connector
(4)
Water temperature switch
(5)
Six injector connectors
(b) Install the three clamp bolts and two clamp.
4.
INSTALL AIR INTAKE CHAMBER
(a)
Install a new gasket and air intake chamber with the
seven bolts and two nuts.
Torque: 250 kg-cm (18 ft-lb, 25 N•m)
(b)
Install the manifold temperature sensor with stay
with the bolt.
Torque: 120 kg-cm (9 ft-lb, 12 N•m)
(c)
Install the two intake chamber stays with the four
bolts.
Torque: 120 kg-cm (9 ft-lb, 12 N•m)
