Toyota 3F-E - Camshaft and bearing

Limit
Thrust clearance
STD
U/S 0.25 and 0.50
No. 1 and No. 2
No. 3 and No. 4
STD
U/S 0.25 and 0.50
STD
Limit

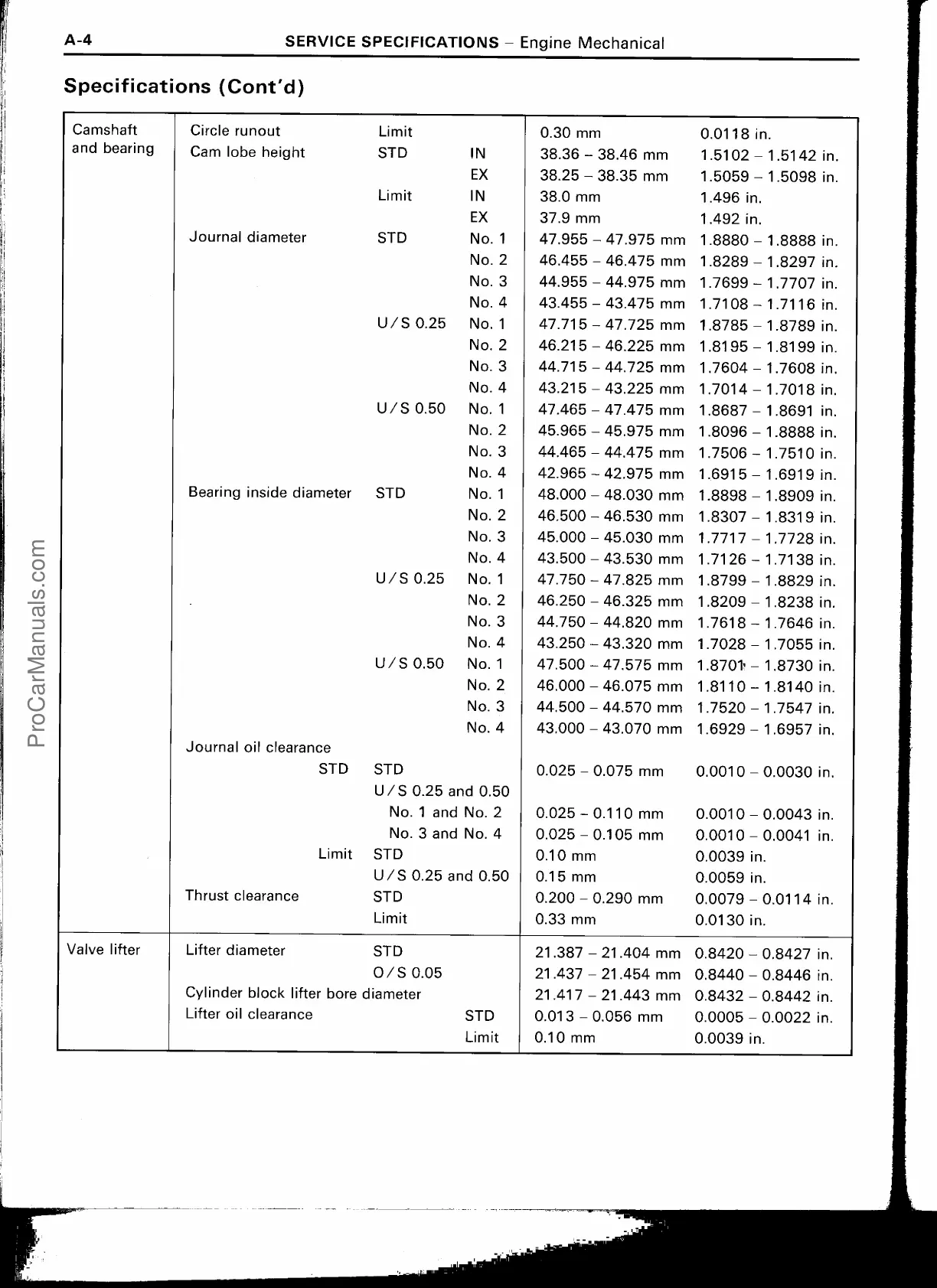

A-4
SERVICE SPECIFICATIONS -
Engine Mechanical
Specifications (Cont'd)
Camshaft
Circle runout
Limit
0.30 mm
0.0118 in.
and bearing
Cam lobe height
STD
IN
38.36 -
38.46 mm
1.5102 -
1 .5142 in.
EX
38.25 -
38.35 mm
1.5059 -
1.5098 in.
Limit
IN
38.0 mm
1.496 in.
EX
37.9 mm
1.492 in.
Journal diameter
STD
No. 1
47.955
- 47.975 mm
1.8880 -
1.8888 in.
No. 2
46.455
- 46.475 mm
1.8289 -
1 .8297 in.
No.
3
44.955
- 44.975 mm
1 .7699 -
1.7707 in.
No. 4
43.455
- 43.475 mm
1.7108 - 1 .71 16 in.
U/S 0.25
No. 1
47.715
- 47.725 mm
1 .8785 -
1 .8789 in.
No. 2
46.215
- 46.225 mm
1 .8195 -
1.8199 in.
No.
3
44.715
- 44.725 mm
1.7604 -
1 .7608 in.
No. 4
43.215
- 43.225 mm
1.7014 -
1.7018 in.
U/S 0.50
No. 1
47.465
- 47.475 mm
1.8687 -
1.8691 in.
No. 2
45.965
- 45.975 mm
1 .8096 -
1 .8888 in.
No.
3 44.465
- 44.475 mm
1.7506 -
1.7510 in.
No. 4
42.965
- 42.975 mm
1 .6915 -
1 .6919 in.
Bearing inside diameter
STD
No.
1
48.000
- 48.030 mm
1.8898 - 1.8909 in.
No.
2
46.500
- 46.530 mm
1.8307 -
1.8319 in.
No. 3
45.000
- 45.030 mm
1 .7717 -
1 .7728 in.
No. 4
43.500
- 43.530 mm
1 .7126 -
1.7138 in.
U/S 0.25
No. 1
47.750
- 47.825 mm
1.8799 - 1.8829 in.
No. 2
46.250
- 46.325 mm
1 .8209 -
1.8238 in.
No.
3 44.750
- 44.820 mm
1.7618 -
1.7646 in.
No. 4
43.250
- 43.320 mm
1 .7028 -
1 .7055 in.
U/S 0.50
No. 1
47.500
- 47.575 mm
1 .8701 -
1.8730 in.
No. 2
46.000
- 46.075 mm
1.8110 - 1.8140 in.
No.
3
44.500
- 44.570 mm
1 .7520 -
1.7547 in.
No. 4
43.000
- 43.070 mm
1.6929 -
1.6957 in.
Journal oil clearance
STD
0.025 - 0.075 mm
0.0010 - 0.0030 in.
Valve lifter
Lifter diameter
STD
O/S 0.05
Cylinder block lifter bore diameter
Lifter oil clearance
STD
Limit
0.025 - 0.110 mm
0.025 - 0.105 mm
0.10 mm
0.15 mm
0.200 - 0.290 mm
0.33 mm
21 .387 - 21 .404 mm
21 .437 - 21 .454 mm
21 .417 - 21 .443 mm
0.013 - 0.056 mm
0.10 mm
0.0010 - 0.0043 in.
0.0010 - 0.0041 in.
0.0039 in.
0.0059 in.
0.0079 - 0.0114 in.
0.0130 in.
0.8420 - 0.8427 in.
0.8440 - 0.8446 in.
0.8432 - 0.8442 in.
0.0005 - 0.0022 in.
0.0039 in.
