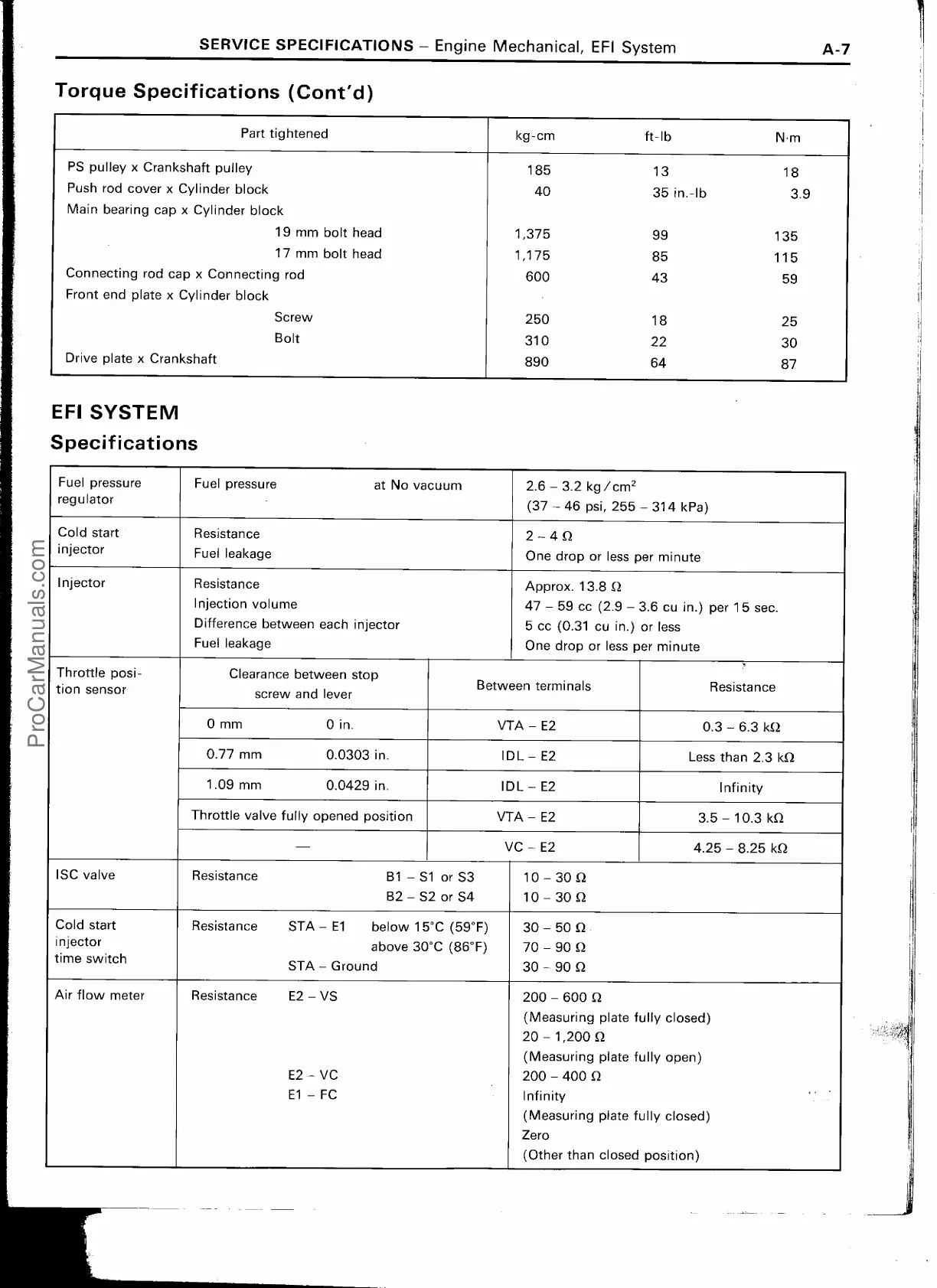

SERVICE SPECIFICATIONS —
Engine Mechanical, EFI System
A-7
Torque Specifications (Cont'd)
Part tightened
kg-cm
ft-lb
N•m
PS pulley x Crankshaft pulley
1
85
1
3
1
8
Push rod cover x Cylinder block
40
35 in.-lb
3.9
Main bearing cap x Cylinder block
1
9 mm bolt head
1,375
99
1
35
1
7 mm bolt head
1,175
85
115
Connecting rod cap x Connecting rod
600
43
59
Front end plate x Cylinder block
Screw
250
1
8
25
Bolt
310
22
30
Drive plate x Crankshaft
890
64
87
EFI SYSTEM
Specifications
Fuel pressure
Fuel pressure
at No vacuum
2.6 — 3.2 kg/cm2
regulator
(37 — 46 psi, 255 — 314 kPa)
Cold start
Resistance
2 — 4 1)
injector
Fuel leakage
One drop or less per minute
Injector
Resistance
Approx. 13.8 S2
Injection volume
47 — 59 cc (2.9 — 3.6 cu in.) per 15 sec.
Difference between each injector
5 cc (0.31 cu in.) or less
Fuel leakage
One drop or less per minute
Throttle posi-
Clearance between stop
tion sensor
screw and lever
Between terminals
Resistance
0 mm
0 in.
VTA — E2
0.3 — 6.3 kS2
0.77 mm
0.0303 in.
IDL — E2
Less than 2.3 kf2
1.09 mm
0.0429 in.
IDL — E2
Infinity
Throttle valve fully opened position
VTA — E2
3.5 — 10.3 kf2
VC - E2
4.25 - 8.25 k)
ISC valve
Resistance
B1 — Si or S3
1
0 — 30 4
B2—S2orS4
10-30t2
Cold start
Resistance
STA — El
below 15°C (59°F)
30 — 50 Q
injector
above 30°C (86'F)
70 — 90 4
ti
me switch
STA — Ground
30 — 90 S2
Air flow meter
Resistance
E2 — VS
200 — 600 0
(
Measuring plate fully closed)
20 — 1,200 Q
(
Measuring plate fully open)
E2—VC
200-400Q
El — FC
Infinity
"
(
Measuring plate fully closed)
Zero
(
Other than closed position)
