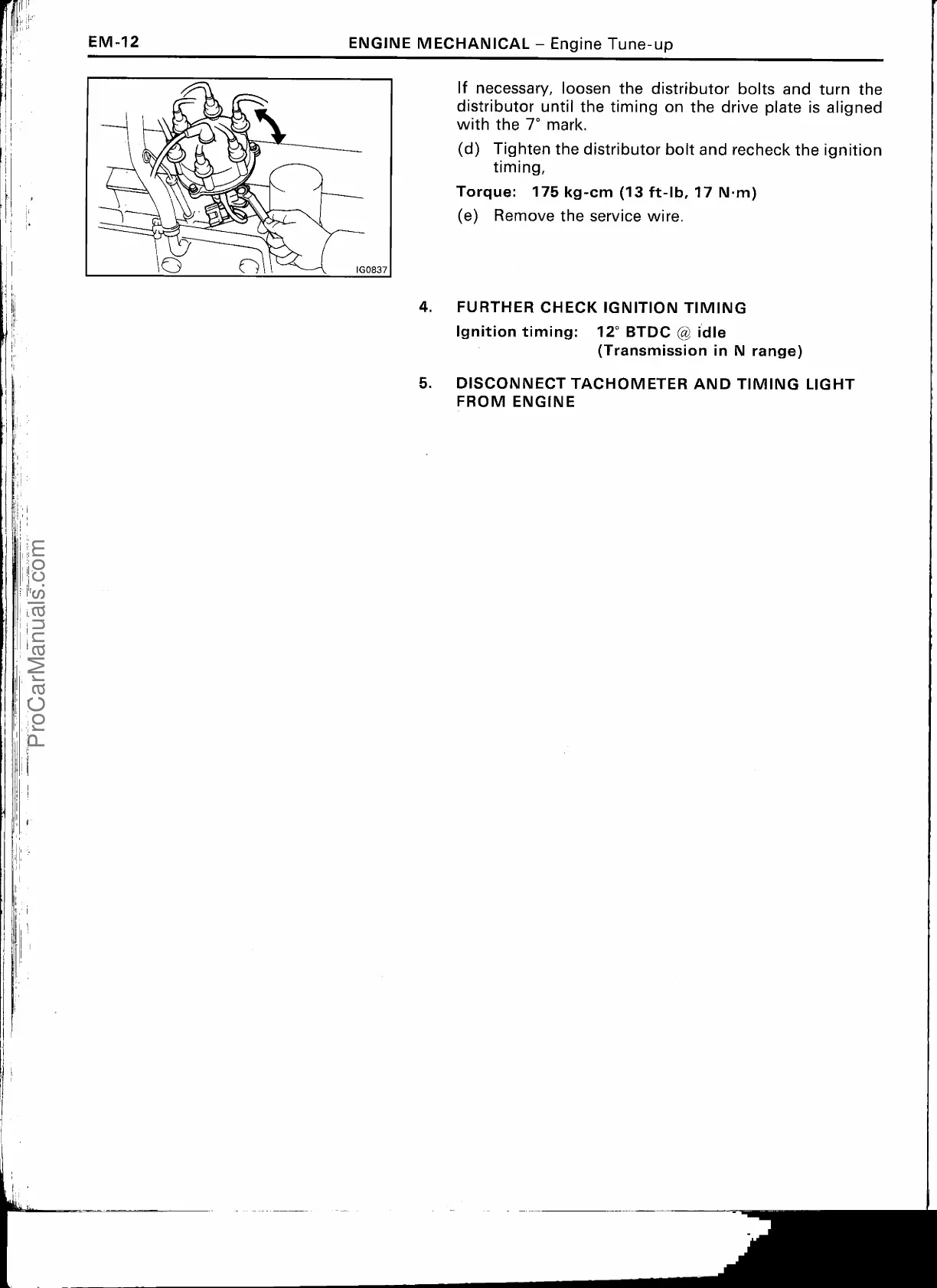

EM-12
ENGINE MECHANICAL —
Engine Tune-up
IG0837
If necessary, loosen the distributor bolts and turn the
distributor until the timing on the drive plate is aligned
with the 7° mark.
(d)
Tighten the distributor bolt and recheck the ignition
ti
ming,
Torque: 175 kg-cm (13 ft-lb, 17 N•m)
(e)
Remove the service wire.
4.
FURTHER CHECK IGNITION TIMING
Ignition timing: 12° BTDC @ idle
(Transmission in N range)
5.
DISCONNECT TACHOMETER AND TIMING LIGHT
FROM ENGINE
