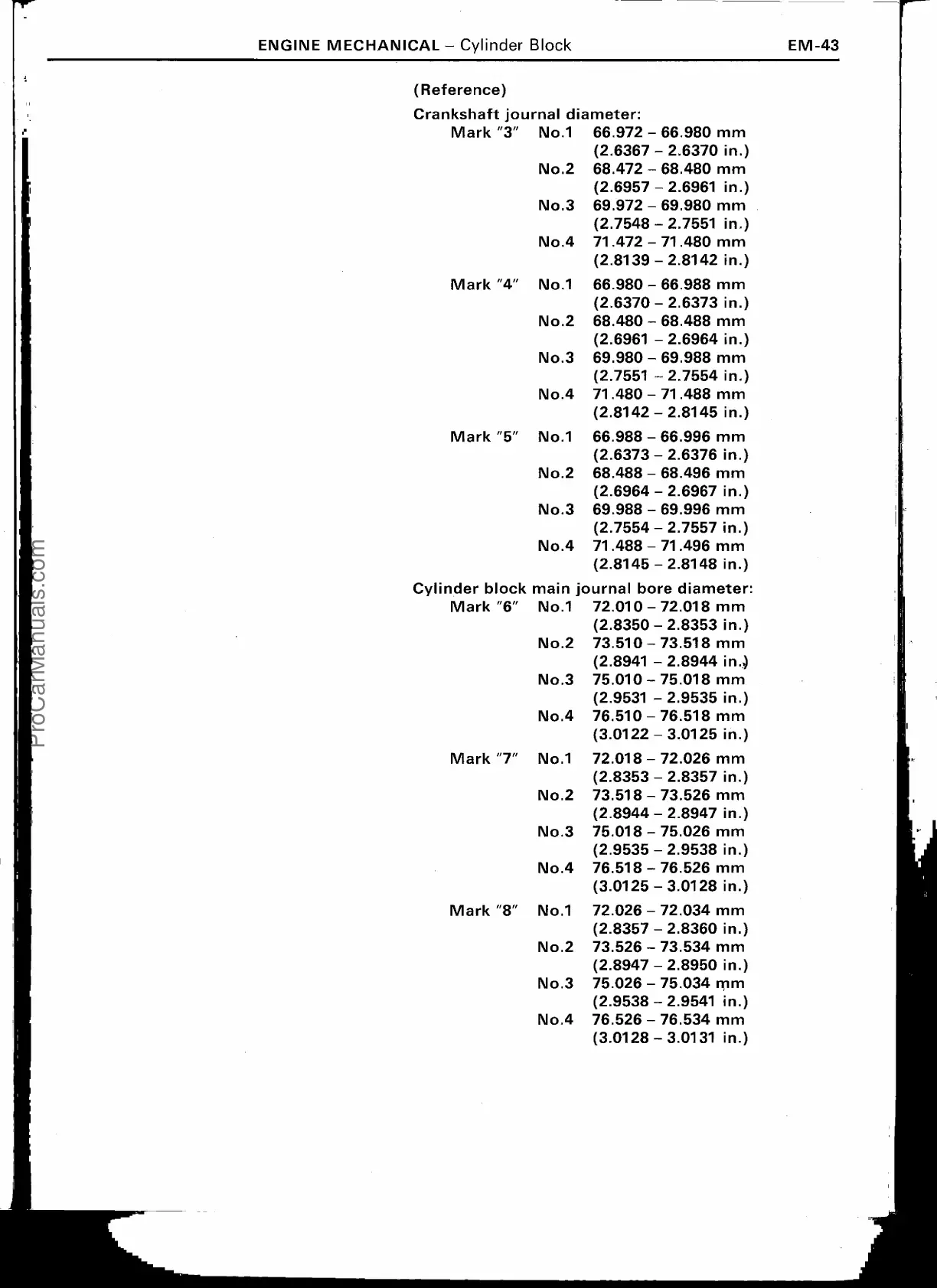

Toyota 3F-E - Page 54

ENGINE MECHANICAL - Cylinder Block EM-43
(
Reference)
Crankshaft journal diameter:
Mark "3" No.1 66.972 - 66.980 mm
(2.6367 - 2.6370 in.)
No.2 68.472 -
68.480 mm
(2.6957 - 2.6961 in.)
No.3 69.972 - 69.980 mm
(2.7548 - 2.7551 in.)
No.4
71 .472 -
71 .480 mm
(2.8139 - 2.8142 in.)
Mark "4"
No.1 66.980 - 66.988 mm
(2.6370 - 2.6373 in.)
No.2
68.480 - 68.488 mm
(2.6961 - 2.6964 in.)
No.3 69.980 -
69.988 mm
(2.7551 - 2.7554 in.)
No.4
71 .480 - 71 .488 mm
(2.8142 - 2.8145 in.)
Mark "5"
No.1
66.988 - 66.996 mm
(2.6373 - 2.6376 in.)
No.2 68.488 - 68.496 mm
(2.6964 - 2.6967 in.)
No.3 69.988 - 69.996 mm
(2.7554 - 2.7557 in.)
No.4 71.488 -
71 .496 mm
(2.8145 - 2.8148 in.)
Cylinder block main journal bore diameter:
Mark "6"
No.1
72.010 -
72.018 mm
(2.8350 - 2.8353 in.)
No.2 73.510 - 73.518 mm
(2.8941 - 2.8944 in.)
No.3 75.010 -75.018 mm
(2.9531 - 2.9535 in.)
No.4
76.510- 76.518 mm
(3.0122
- 3.0125 in.)
Mark "7" No.1 72.018 -
72.026 mm
(2.8353
- 2.8357 in.)
No.2
73.518 - 73.526 mm
(2.8944
- 2.8947 in.)
No.3
75.018 -
75.026 mm
(2.9535 - 2.9538 in.)
No.4
76.518 - 76.526 mm
(3.0125
- 3.0128 in.)
Mark "8" No.1
72.026 -
72.034 mm
(2.8357 - 2.8360 in.)
No.2 73.526 -
73.534 mm
(2.8947 - 2.8950 in.)
No.3 75.026 -
75.034 mm
(2.9538
- 2.9541 in.)
No.4 76.526 -
76.534 mm
(3.0128
- 3.0131 in.)
