TP-Link TD-VG5612

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
101
4.16 Firewall
There are four submenus under the Firewall menu: Rule, LAN Host, WAN Host and Schedule.
Click any of them, and you will be able to configure the corresponding function.
4.16.1 Rule
Choose menu “Firewall”
→
“Ru le ”, and then you can view and set Access Control rules in the
screen as shown in Figure 4-99.

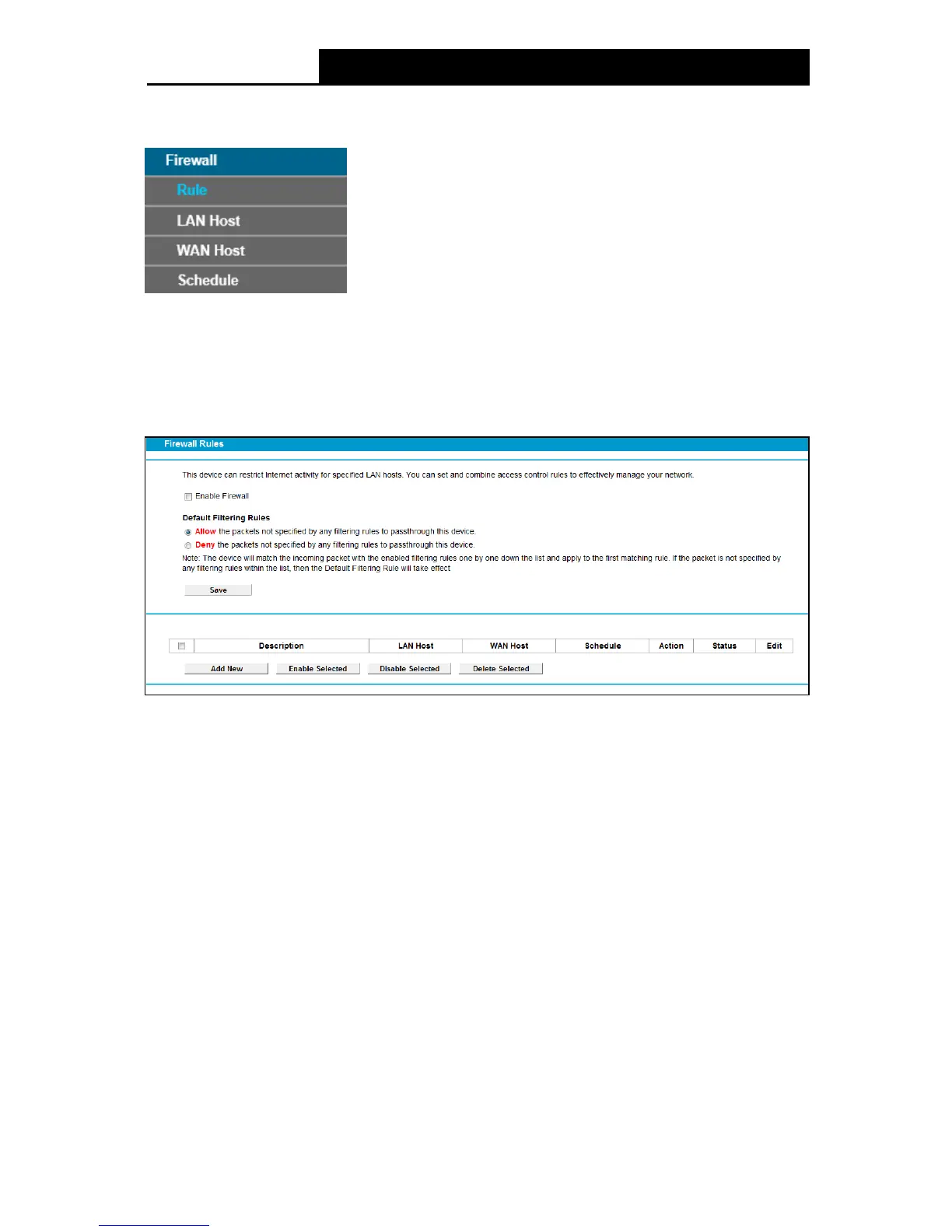

Figure 4-99
 Enable Fire wall: Select the check box to enable the Firewall function, so the Default Filtering
Rules can take effect.
 Description: Here displays the description of the rule and this name is unique.
 LAN Host: Here displays the host selected in the corresponding rule.
 WAN Host: Here displays the WAN host selected in the corresponding rule.
 Schedule: Here displays the schedule selected in the corresponding rule.
 Status: Here displays the status of the rule, enabled or not.
 Edit: Here you can edit or delete an existing rule.
 Add New: Click the Add New button to add a new rule entry.
 Enable Selected: Click the Enable Selected button to enable the selected rules in the list.
 Disable Selected: Click the Disable Selected button to disable the selected rules in the list.
 Delete Selected: Click the Delete Selected button to delete the selected entries in the table.
