TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
9
Chapter 3. Quick Installation Guide
This chapter will show you how to configure the basic functions of your TD-VG5612 300Mbps
Wireless N VoIP VDSL/ADSL Modem Router using Quick Setup Wizard within minutes.
3.1 TCP/IP Configuration
The default IP address of the TD-VG5612 300Mbps Wireless N VoIP VDSL/ADSL Modem Router
is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as
you desire. In this guide, we use all the default values for description.
Connect the local PC to the LAN port of the modem router. And then you can configure the IP
address for your PC in the following way.
Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
If you need instructions as to how to do this, please refer to Appendix B: Trouble
shooting.
2) Then the built-in DHCP server will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection.
Please click the Start menu on your desktop, select run tab, type cmd or command in the field
and press Ente r. Type ping 192.168.1.1 on the next screen, and then press Ente r.
If the result displayed is similar to the screen below, the connection between your PC and the
modem router has been established.

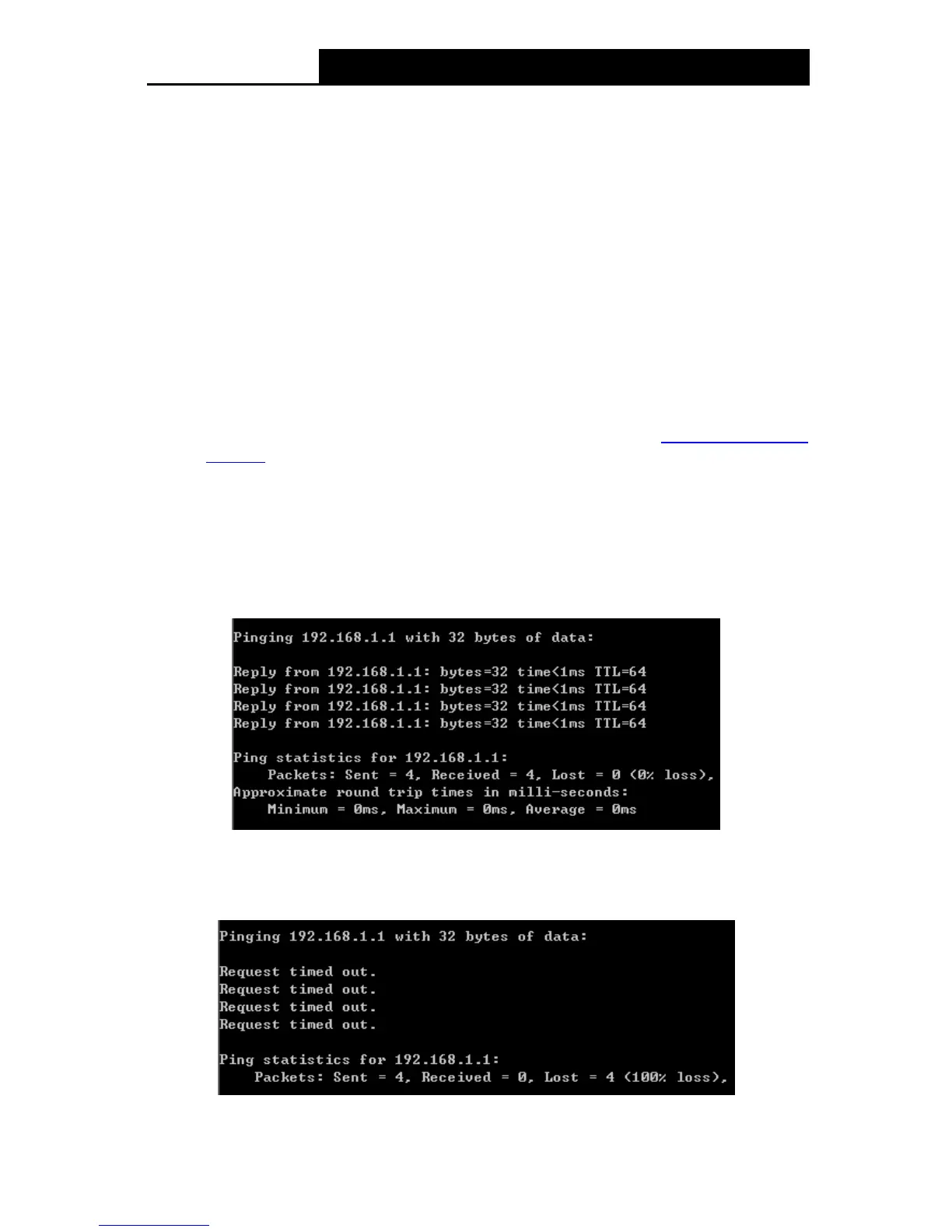

Figure 3-1
If the result displayed is similar to the screen shown below, it means that your PC has not
connected to the modem router.
Figure 3-2
