TP-Link TD-VG5612 User Manual

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
71
4.10.1 SIP Account

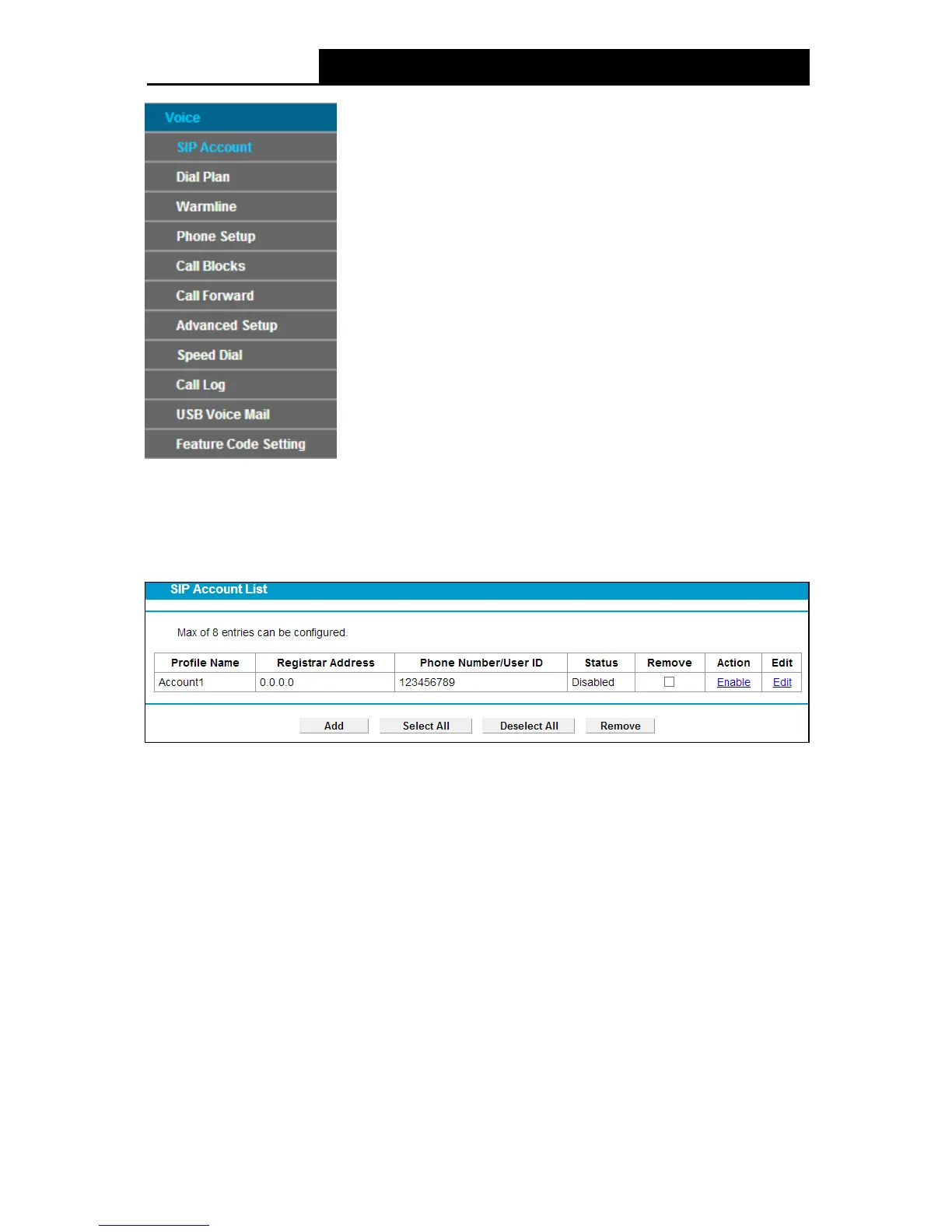

Choose “Voice ”“SIP Account”, you will see the screen similar to Figure 4-56. SIP accounts are
necessary for making VoIP calls. This section introduces how to setup the SIP(Session Initiation
Protocol) account for your Modem Router.
Figure 4-56
 Profile Name: Displays the profile name of the account.
 Registrar Address: Displays the IP address or domain name of the SIP Registrar server.
 Phone Number/User ID: Displays the phone number of the account.
 Status: Displays the status of the account. “down” means that the account has not been
registered.
 Remove: Check the box and then click the Re move button below so that the very account
will be deleted.
 Action: Click to Enable or Disable the SIP account.
 Edit: Click to modify the very account.
To set up an SIP account, click the Add button in Figure 4-56. Configure the following parameters
in Figure 4-57 and then click the Sav e button. Then an account is added. Please note that the
blanks with red asterisk behind are required to be entered.

TP-Link TD-VG5612 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	Yes
Frequency range	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	2.6 dBi
Routing protocols	RIP-1, RIP-2
USB version	2.0
RS-232 ports	0
USB ports quantity	1
Memory card slot(s)	-
RJ-11 ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	RoHS, RCM
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Product color	White
Power source type	AC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s

Weight and Dimensions

Depth	60 mm
Width	174 mm
Height	130 mm
Weight	- g
