TP-Link TD-VG5612 User Manual

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
81

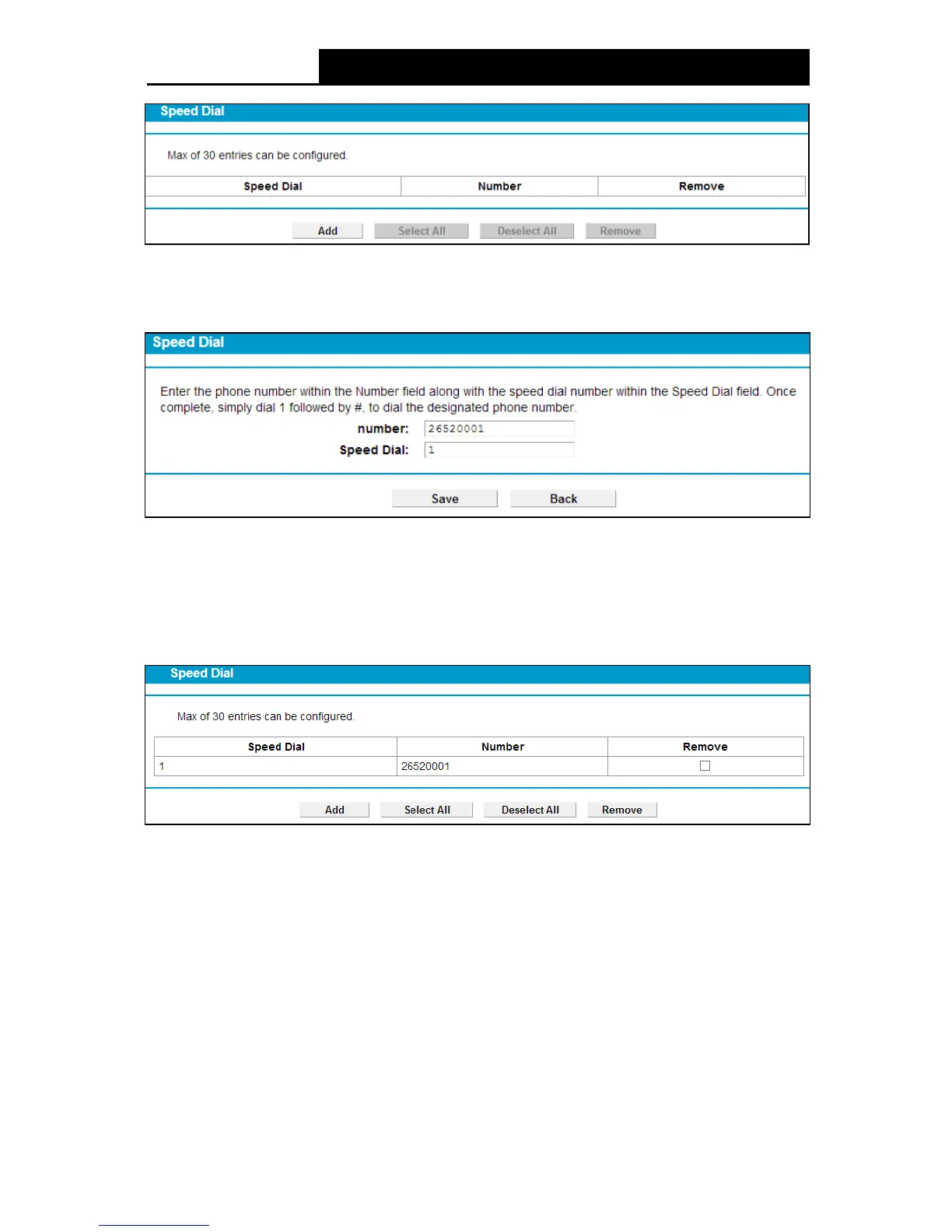

Figure 4-69
To add a Speed Dial entry, click the Add button and you will see the screen as shown in Figure
4-70. Fill in the following parameters and then click the Save button.
Figure 4-70
 Number: Enter a phone number.
 Speed Dial: Enter a number from 0~99.
Click the Save button, you will go back to the previous page and see the following list as shown in
Figure 4-71.
Figure 4-71
Click the Sav e button to make the configuration take effect. If you want to delete the entry, check
the Remove box first, and then click the Remove button.
4.10.9 Call Log
Choose “Voice ”“Call Log”, you will see the screen as shown in Figure 4-72. This function allows
you to view call logs and configure call log options.

TP-Link TD-VG5612 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	Yes
Frequency range	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	2.6 dBi
Routing protocols	RIP-1, RIP-2
USB version	2.0
RS-232 ports	0
USB ports quantity	1
Memory card slot(s)	-
RJ-11 ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	RoHS, RCM
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Product color	White
Power source type	AC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s

Weight and Dimensions

Depth	60 mm
Width	174 mm
Height	130 mm
Weight	- g
