TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
76

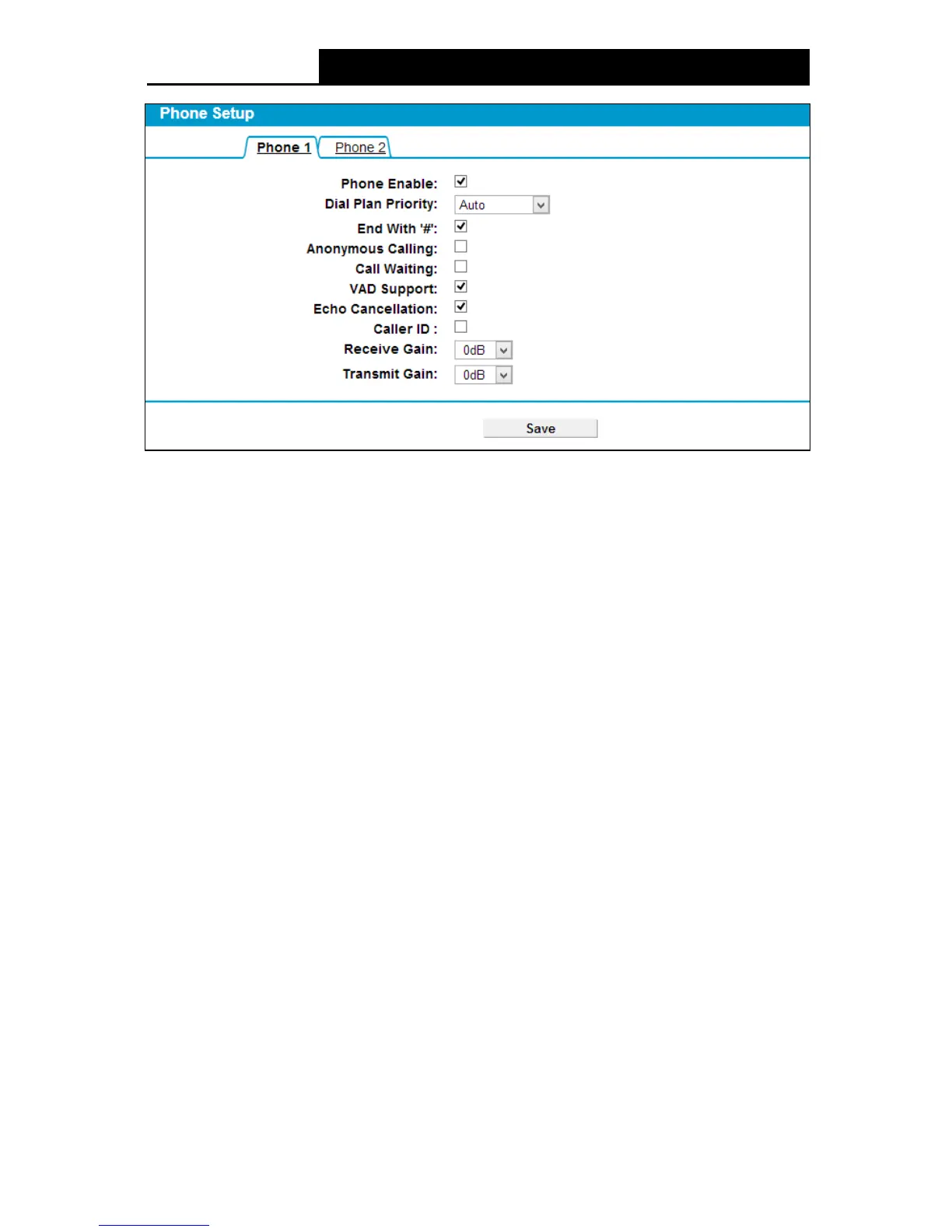

Figure 4-61
Phone Enable: Check the box behind to enable the function.
Dial Plan Priority: The parameters configured here determine which SIP account to use
when making outgoing calls. Auto means no priority.
End With#': Choose whether to use #as the end signal of your dialing or not.
Anonymous Calling: Hide the own phone number for each call and it will not be displayed on
the remote site. This feature is only available for VoIP calls and disabled by default.
Call Waiting: Check the box to enable this function. When the line is busy, the incoming call
will be indicated to wait.
VAD Support: VAD(Voice Activation Detection) prevents transmitting the silence packets to
consume the bandwidth. It is also known as Silence Suppression which is a software
application that ensures the bandwidth is reserved only when voice activity is activated. It is
enabled by default.
Echo Cancellation: Check the box to cancel echoes when calling. We recommend your keep
it checked.
Caller ID: Check the box to display the user ID or phone number of the incoming number on
your phone.
Receive Gain: Sound Volume control of speaker.
Transmit Gain: Sound Volume control of microphone.
Click the Sav e button to make the configuration take effect.
4.10.5 Call Blocks
Choose “Voice Call Blocks”, you will see the screen similar to Figure 4-62. This section allows
you to block calls.
DND Settings:
