• Site Prefix: Enter a value for the site prefix.
• Site Prefix Length: Enter a value for the site prefix length.
Click the Sav e button to save the settings.
4.5.6 MAC Clone
Choose menu “Ne t wo rk”“M AC Clone”, you can configure the MAC address of the WAN
Interface as shown below.
The WAN Interface List displays the WAN Interfaces you have configured on the section 4.5.1
WAN Settings and its default MAC Address. You can select corresponding WAN Interface from the
drop-down list and click Clone M AC To button to clone your current PC MAC, and then click
Sav e .

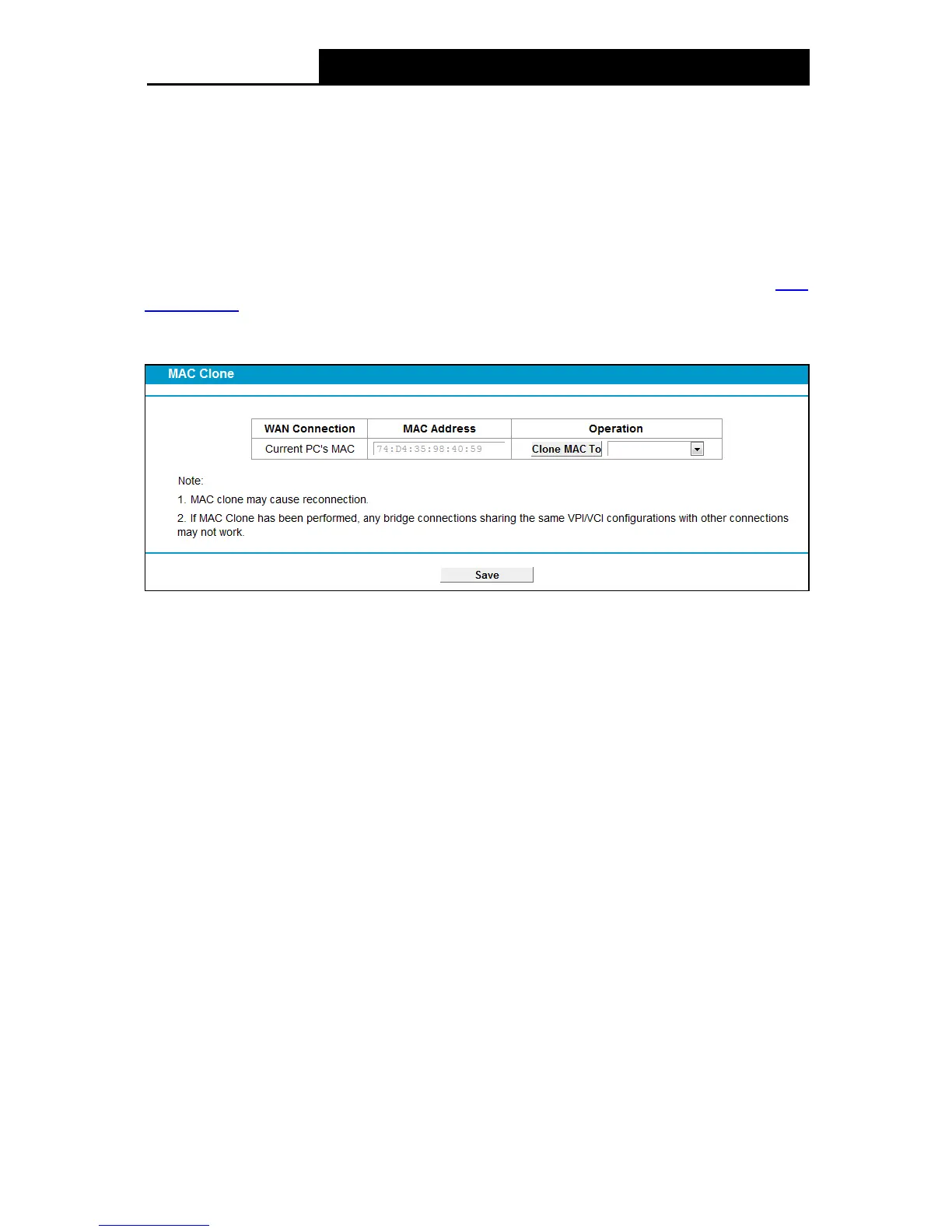

Figure 4-27
Note:
Only the WAN Ports can use MAC Address Clone function. All the clone MAC addresses must not
be the same with each other.
4.5.7 ALG Settings
Choose menu “Ne two r k”“ALG Se ttings”, and then you can configure the basic security in the
screen as shown in Figure 4-28.
