Click the Save button to save your settings.
4.5.8 DSL Settings
Choose “Networ k”“DSL Se ttings”, you can select the DSL Modulation Type and Annex Type in
the next screen. The DSL feature can be selected when you meet the physical connection
problem. Please check the proper settings with your Internet service provider.

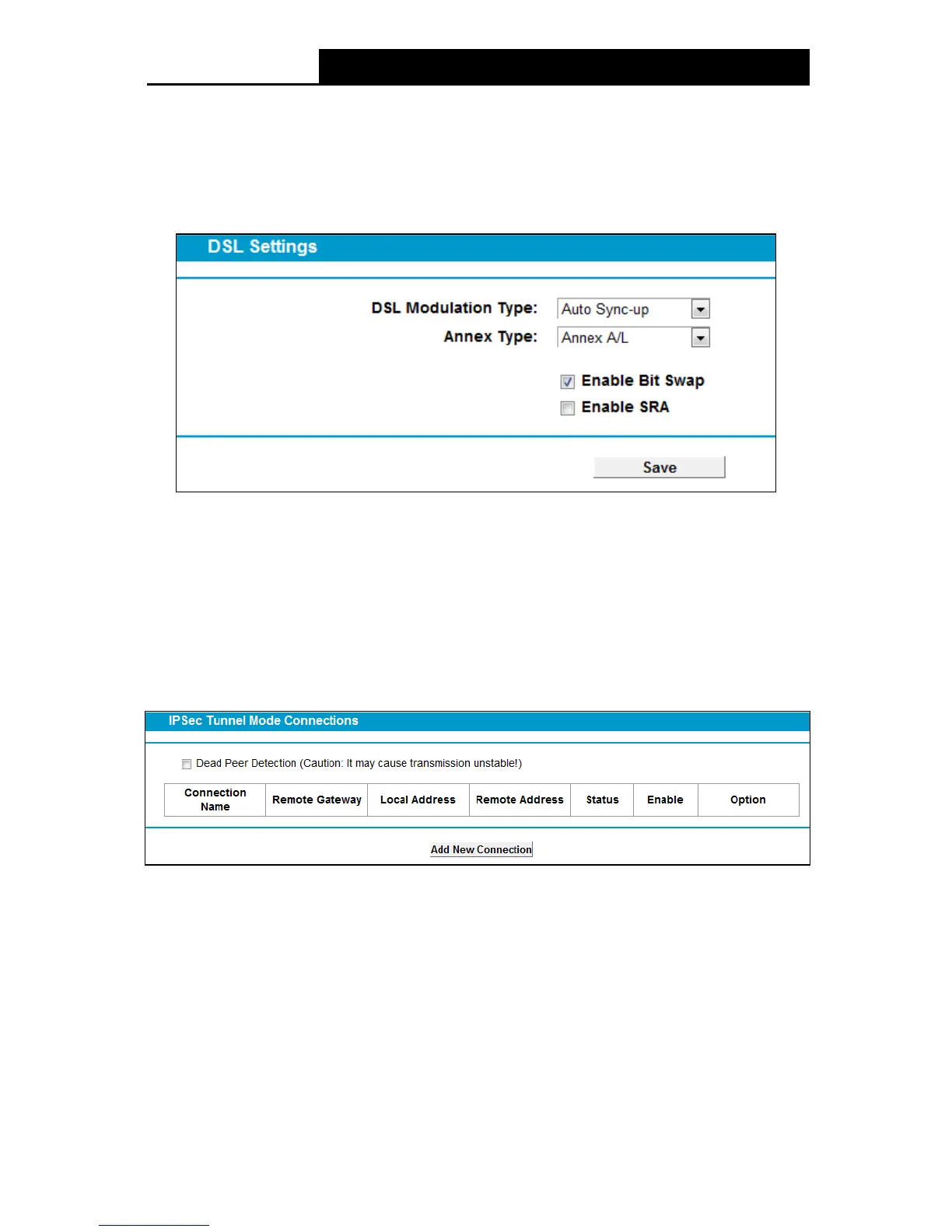

Figure 4-29
 DSL M odulation Type: Select the DSL operation Modulation Type which your DSL
connection uses.
 Annex Type : Select the DSL operation Annex Type which your DSL connection uses.
Click the Save button to save your settings.
4.5.9 IPSec VPN
Choose “Ne twork”“IPSec VPN”, you can Add/Remove or Enable/Disable the IPSec tunnel
connections on the screen as shown in Figure 4-30.
Figure 4-30
This section will guide you to configure a VPN tunnel between two TD-VG5612s. The topology is
as follows.
