TP-Link TD-VG5612

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
113

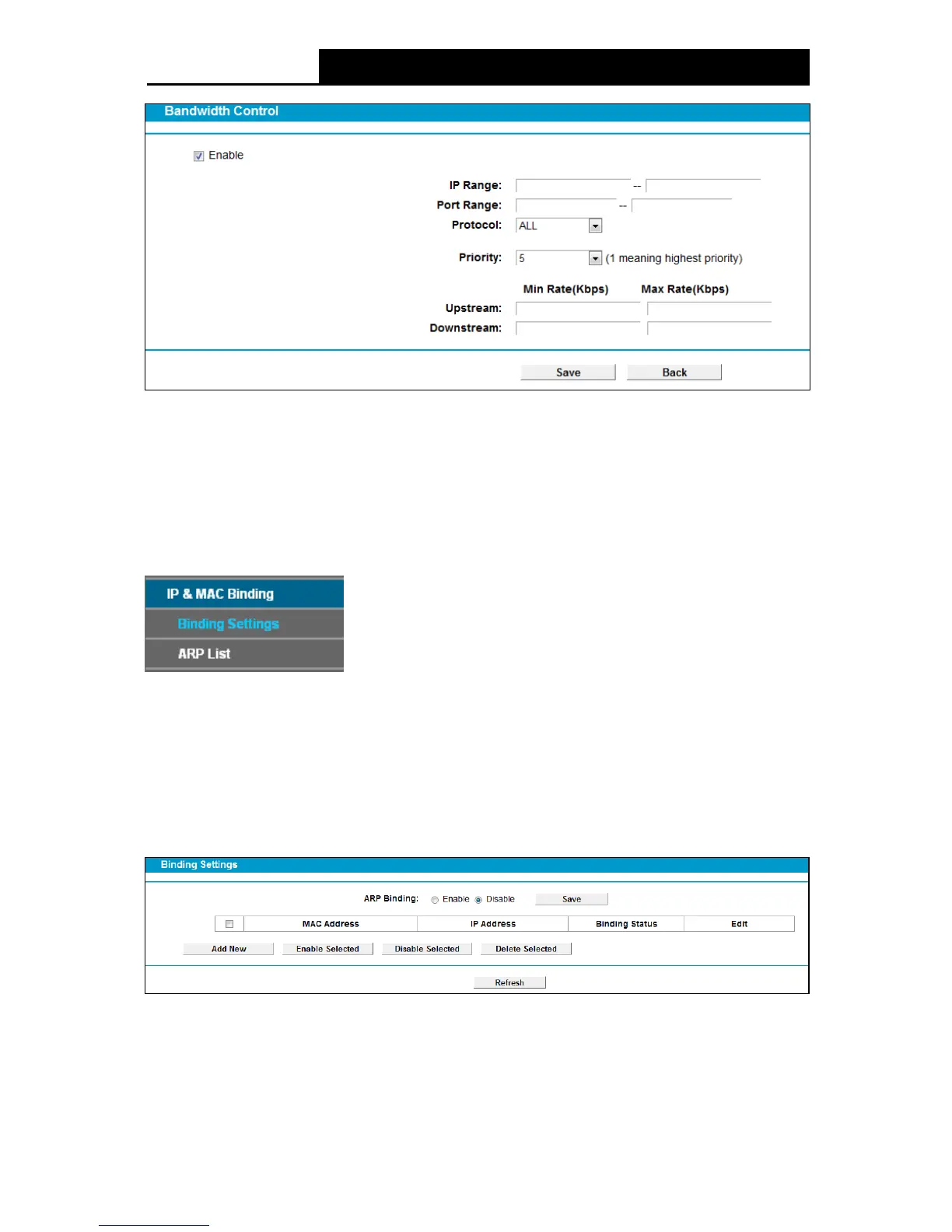

Figure 4-121
3. Click the Save button.
Click the Enable/ Disable Selected button to make selected entries enabled or disabled.
Click the Delete Selected button to delete selected entries.
4.20 IP & MAC Binding
There are two submenus under the IP &MAC Binding menu: Binding Settings and ARP List .
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.
4.20.1 Binding Settings
This page displays the IP & M AC Binding Setting table; you can operate it in accord with your
desire (shown in
Figure 4-122).
Figure 4-122
 M AC Ad dr e ss: The MAC address of the controlled computer in the LAN.
 IP Address: The assigned IP address of the controlled computer in the LAN.
 Bounding Status: Check this option to enable ARP binding for a specific device.
