TP-Link TD-VG5612 User Manual

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
111

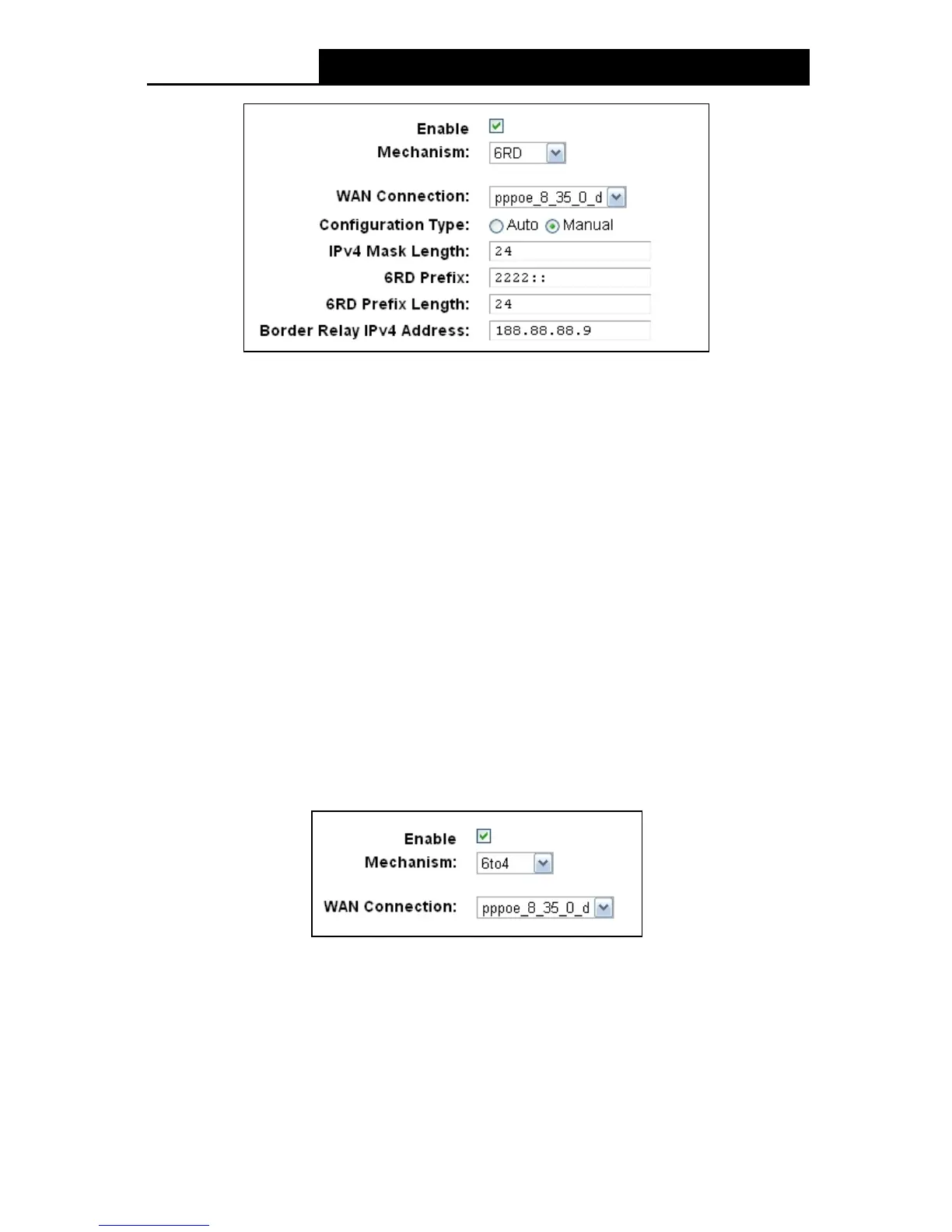

Figure 4-118
 WAN Connection: Select a WAN connection from the drop-down list. Only the connected
WAN connections can be shown in the drop-down list.
 Configuration Type: Select a configuration type for this tunnel. Auto means to obtain the
following parameters automatically while Manual means you set them manually. If Auto is
selected, only Dynamic IP connection can be selected from the drop-down list.
 IPv4 Mask Length: The length of the selected WAN connection’s IPv4 mask.
 6RD Pre fix: The prefix of the 6RD tunnel.
 6RD Pre fix Le ngth: The length of the 6RD prefix.
 Border Relay IPv4 Address: The IPv4 address of the border relay router of 6RD tunnel.

Note:
In this type, there should not have any IPv6 WAN connections. If there are IPv6 WAN connections,
the page will prompt you to delete all the IPv6 WAN connections.
3) 6to4
This type is used in the situation that your WAN connection is IPv4 while LAN connection is IPv6.
Select 6to4, and you will see the screen as shown in Figure 4-119.
Figure 4-119
 WAN Connection: Select a WAN connection from the drop-down list. Only the connected
WAN connections can be shown in the drop-down list.

Note:
In this type, there should not have any IPv6 WAN connections. If there are IPv6 WAN connections,
the page will prompt you to delete all the IPv6 WAN connections.

TP-Link TD-VG5612 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	Yes
Frequency range	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	2.6 dBi
Routing protocols	RIP-1, RIP-2
USB version	2.0
RS-232 ports	0
USB ports quantity	1
Memory card slot(s)	-
RJ-11 ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	RoHS, RCM
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Product color	White
Power source type	AC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s

Weight and Dimensions

Depth	60 mm
Width	174 mm
Height	130 mm
Weight	- g
