24

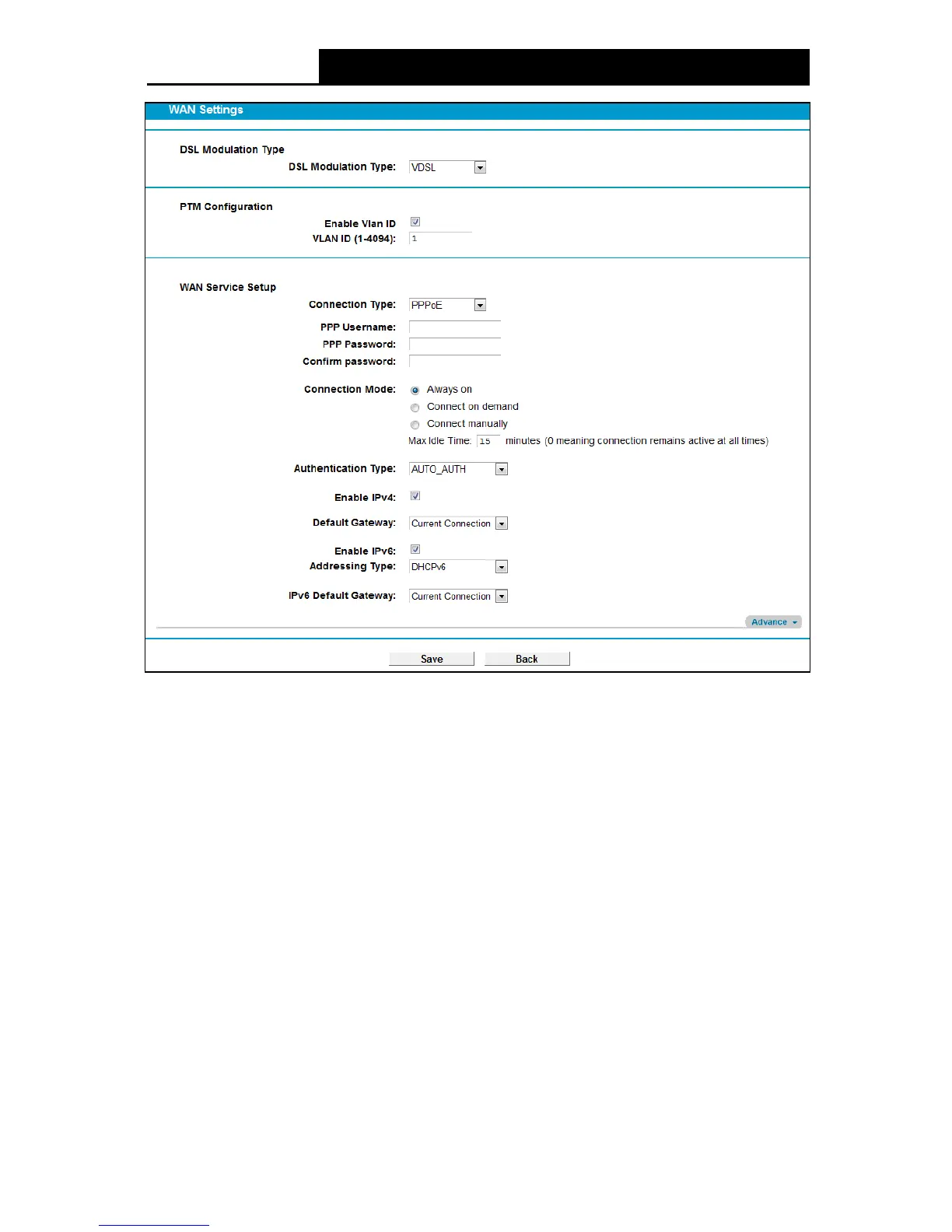

Figure 4-7
PPP Username/Password/Confirm password: Enter the User Name, Password and
Confirm password provided by your ISP. These fields are case-sensitive.
Connection Mode: For PPPoE connection, you can select Always on or Connect on
de mand or Connect manually. Connect on demand is dependent on the traffic. If there is no
traffic (or Idle ) for a pre-specified period of time, the connection will
drop down automatically.
And once there is traffic send or receive, the connection will be automatically on.
Authentication Type : Select the Authentication Type from the drop-down list, the default
method is AUTO_AUTH, and you can leave it as a default setting.
Enable IPv4: Check this box to enable IPv4.
Enable IPv6: Check this box to enable IPv6.
De fault Gate way: Select a WAN connection from the drop-down list as the IPv4 default
gateway.
IPv6 Default Gateway: Select a WAN connection from the drop-down list as the IPv6 default
gateway.
Click Advance, advanced selections for WAN Service Setup can be shown.
Service Name/Server Name: Enter the Service Name and Server Name if it was provided by
your ISP. You can leave them blank, if the ISP doesn’t provide them.
