26
4.5.1.2 ADSL WAN Settings
For ADSL mode, there are six different configurations for the connection types, which are Static IP,
Dynamic IP, PPPoE, PPPoA, IPoA and Bridge. You can select the corresponding types according
to your needs.

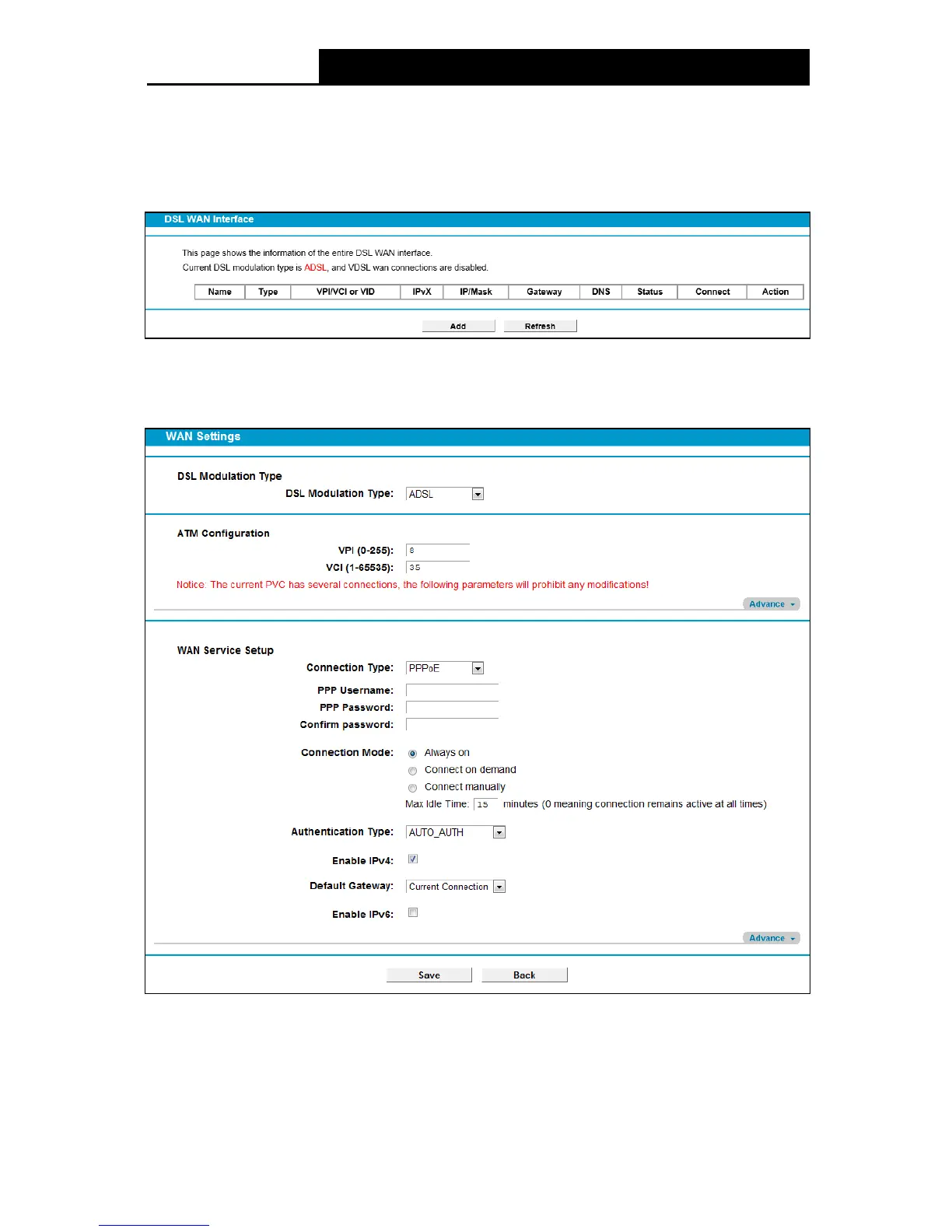

Figure 4-9
Click Add to add a new entry, you can configure the parameters for PTM and WAN Service in the
next screen (shown in Figure 4-10).
Figure 4-10
DSL Modulation Type:
DSL M odulation Type : The modem router supports two modulation types: ADSL and VDSL,
you can select the corresponding types according to your needs.
