35

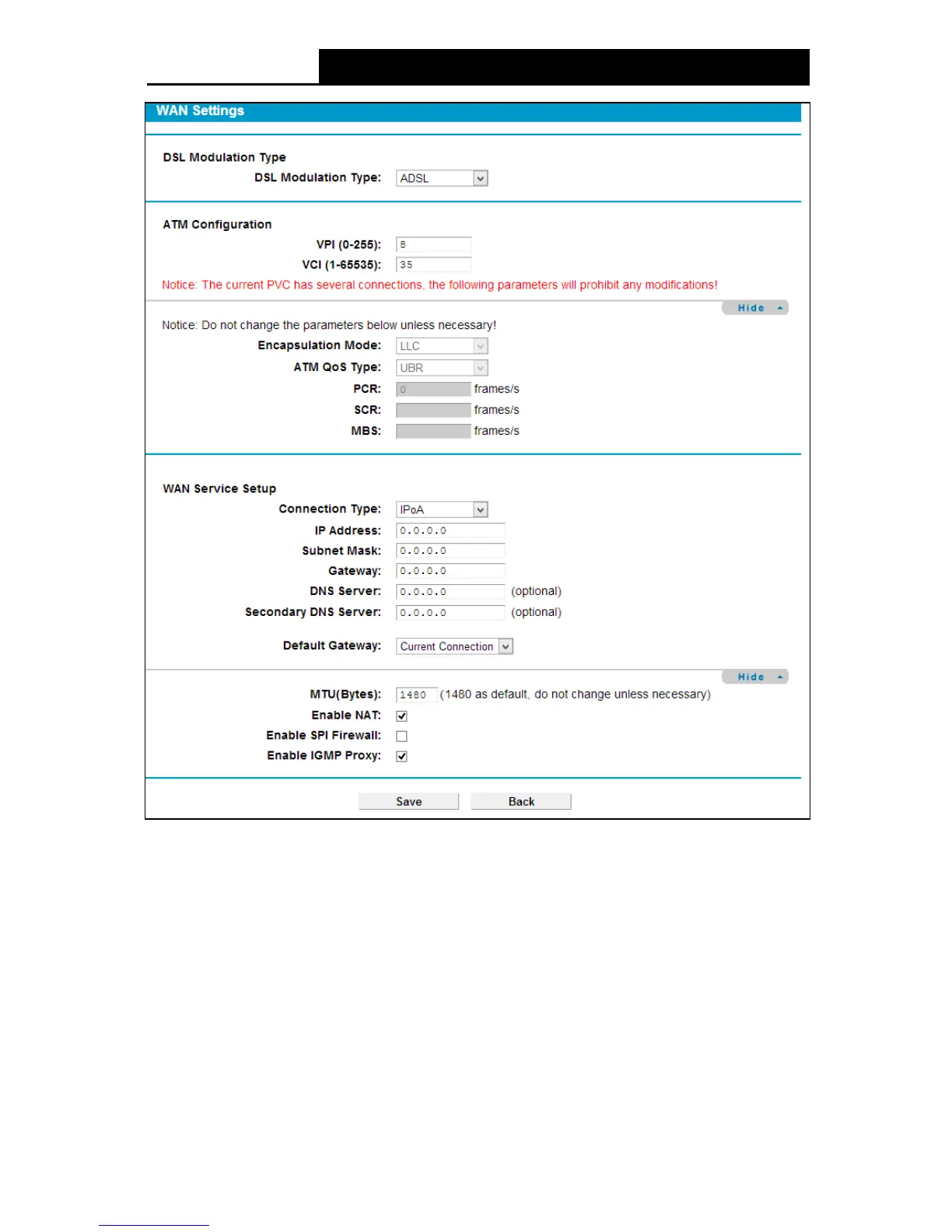

Figure 4-15
IP Address/Subne t Mask: Enter the IP Address and Subnet Mask provided by ISP. If you
forget, you can ask your ISP.
Gateway: Enter the gateway IP address in dotted-decimal notation provided by your ISP.
DNS Server/ Se condary DNS Se rv er: Type in your preferred DNS server.
De fault Gate way: Select a WAN Interface from the drop-down list as the IPv4 default
gateway.
6) Bridge
If you select this type of connection, the modem router can be configured to act as a bridging
device between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are two segments of the same physical LAN.
