TP-Link TD-VG5612 User Manual

TD-VG5612
300Mbps Wireless N VoIP VDSL/ADSL Modem Router User Guide
83
 Selected: Check the box to select the corresponding voice message.
To refresh the web page, click Refresh button.
To delete a voice message, check the Selected box and then click Remove button.
To configure the USB Voice Mail, click Config button to enter the web page as shown in Figure
4-74.

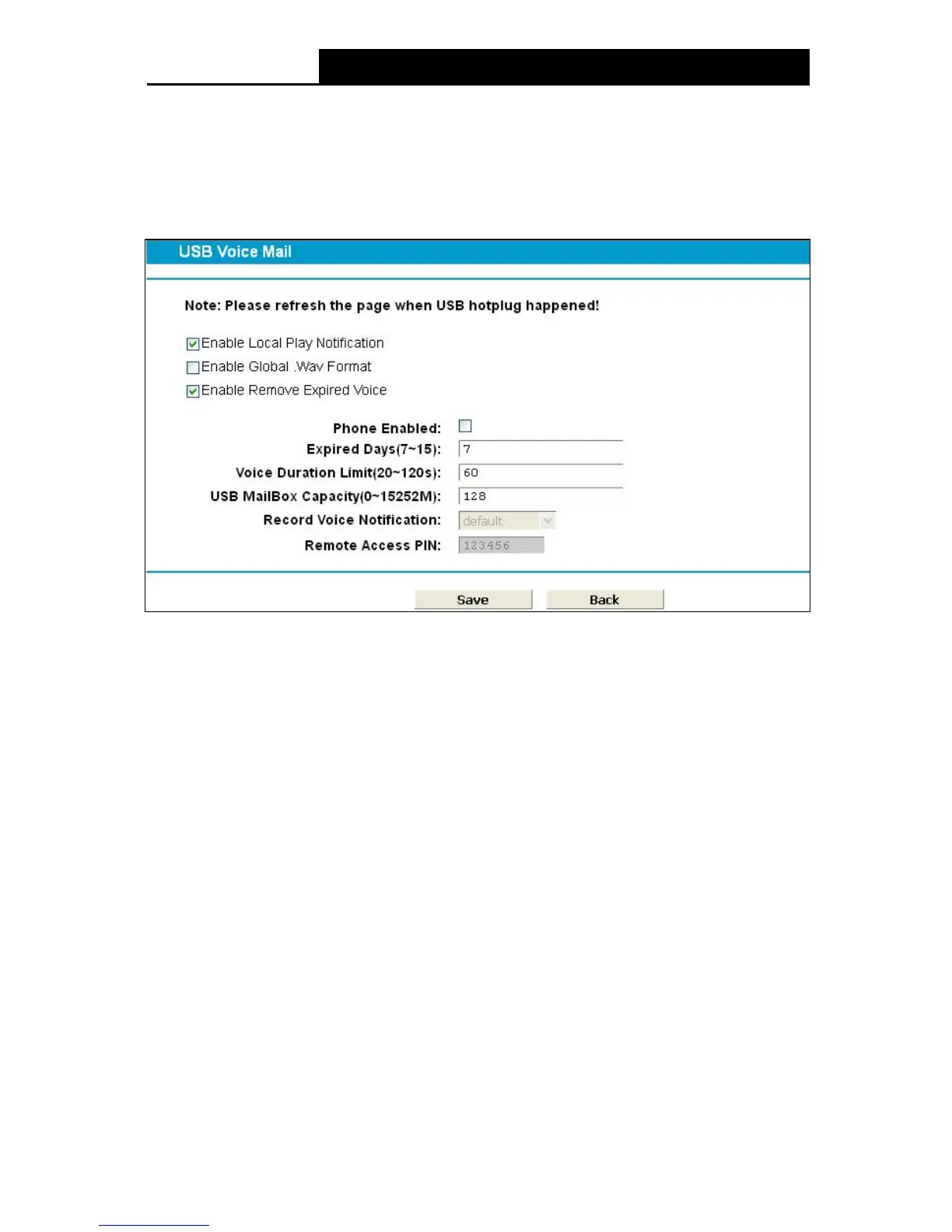

Figure 4-74
 Enable Local Play Operation Notify: Check this box so there will be sound indication for
operation when you listen to the voice messages. This is enabled by default. If you are very
familiar with the operations, you can disable it.
 Enable Global Wav Format: Check this box and all the voice message will be saved as wav
files in your USB device. It is convenient for users to listen to the voice messages on the
computer. Considering the capacity of your USB device, it is disabled by default.
 Enable Remove Expired Voice: Check this box and then the expired voice messages will be
deleted automatically. Considering the capacity of USB device, it is enabled by default.
 Phone Enable: Check the box to enable this function.
 Expired Days(7~15): Configure the days that you want the voice messages to be kept.
 Voice Duration Limit(20~120s): This option is used to limit the duration of a voice message.
 USB MailBox Capacity: Set the capacity for the USB mailbox. Please note that the capacity
set should be less than that of the USB device.
 Record Voice Notification: Select to use the default or customized voice notification.
 Remote Access PIN: This PIN code is used to listen to the voice messages in a remote place.
Operations are as follows.
1) Call the local phone and wait for the voice notification.
2) Press “*” before the notification is over.

TP-Link TD-VG5612 Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	Yes
Frequency range	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	2.6 dBi
Routing protocols	RIP-1, RIP-2
USB version	2.0
RS-232 ports	0
USB ports quantity	1
Memory card slot(s)	-
RJ-11 ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45), Phone (RJ-11)
Certification	RoHS, RCM
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Product color	White
Power source type	AC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s

Weight and Dimensions

Depth	60 mm
Width	174 mm
Height	130 mm
Weight	- g
