TP-Link TL-SG5412F User Manual

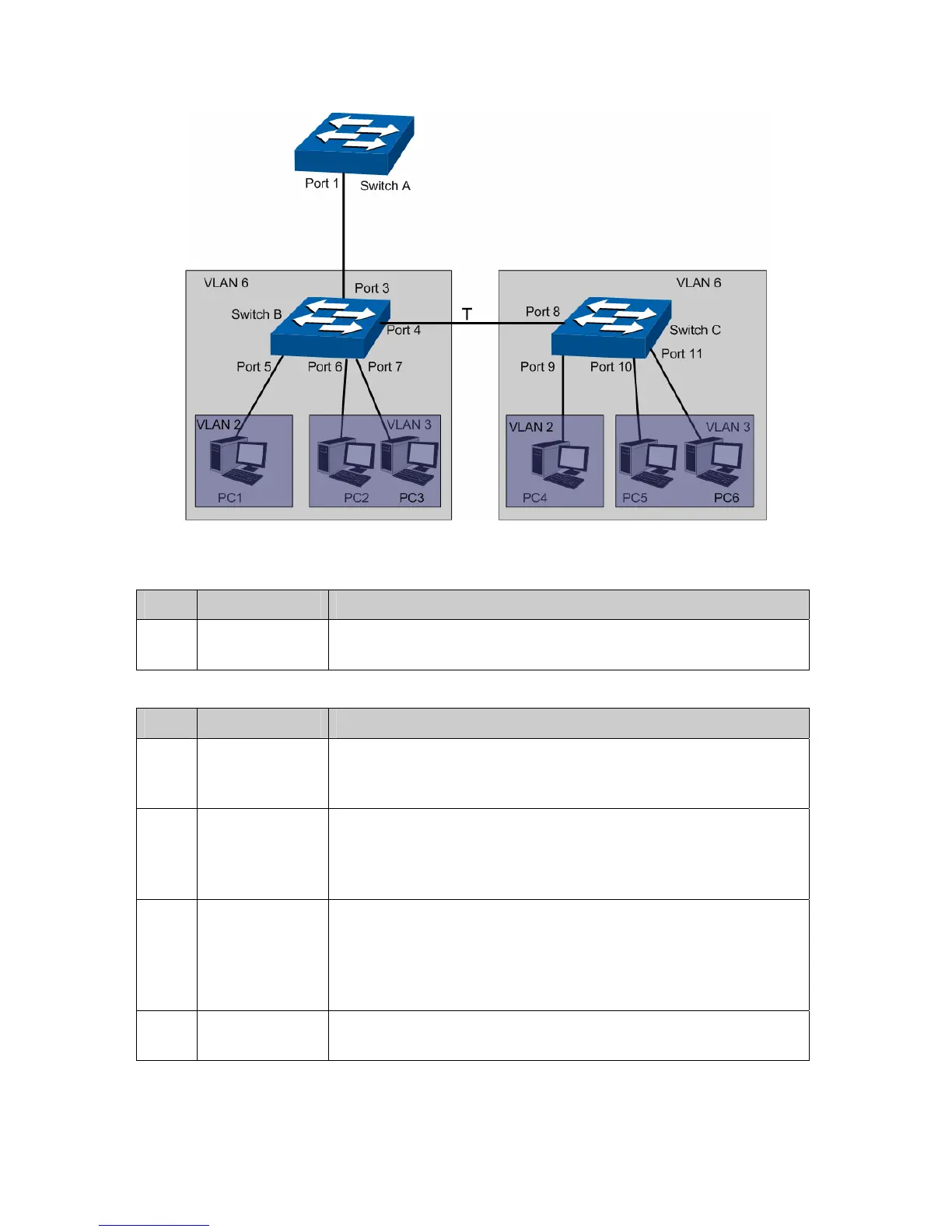

 Network Diagram
 Configuration Procedure
 Configure Switch A
Step Operation Description
1 Create VLAN6 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a
VLAN with its VLANID as 6, owning Port 1.
 Configure Switch B
Step Operation Description
1 Create Private
VLANs.
Required. On the VLAN→Private VLAN→PVLAN page, Enter the
Primary VLAN 6 and Secondary VLAN 2-3, and then click the Create
button.
2 Add
Promiscuous
port to Private
VLANs
Required. On the VLAN→Private VLAN→Port Configure page,
configure the port type of Port3 and Port4 as Promiscuous, enter
Primary VLAN 6 and Secondary VLAN 2-3, and click the Add button.
3 Add Host port to
Private VLANs
Required. On the VLAN→Private VLAN→Port Configure page,
configure the port type of Port5 as Host, enter Primary VLAN 6 and
Secondary VLAN 2, and click the Add button. Configure the port
type of Port6 and Port7 as Host, enter Primary VLAN 6 and
Secondary VLAN 3, and click the Add button
4 Configure Port4 Required. On the VLAN→802.1Q VLAN→VLAN Config page, click
the Edit button and then configure the Egress Rule of Port4 as Tag.
76

TP-Link TL-SG5412F Specifications

General

MAC address table	8000 entries
Jumbo frames support	Yes
Maximum data transfer rate	1 Gbit/s
Supported data transfer rates	10, 100, 1000Mbps
Fan	0
Wi-Fi	No
Diagnostics	VCT
Management platform	SNMP, RMON, WEB/CLI/Telnet
Authentication method	802.1X, Radius
Packet transfer speed	17.99Mpps
Connectivity technology	Wired
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSL/TLS
Switch type	Managed
Switch layer	L2
Console port	RJ-45
Fiber optic connector	SFP
SFP/SFP+ slots quantity	12
Basic switching RJ-45 Ethernet ports quantity	4
Fiber ethernet cabling technology	100BASE-FX
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Stackable	-
Form factor	1U
Certification	CE, FCC
Product color	Black
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, Windows 7\\r MAC OS\\r NetWare\\r UNIX\\r Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	260 mm
Width	440 mm
Height	44 mm
