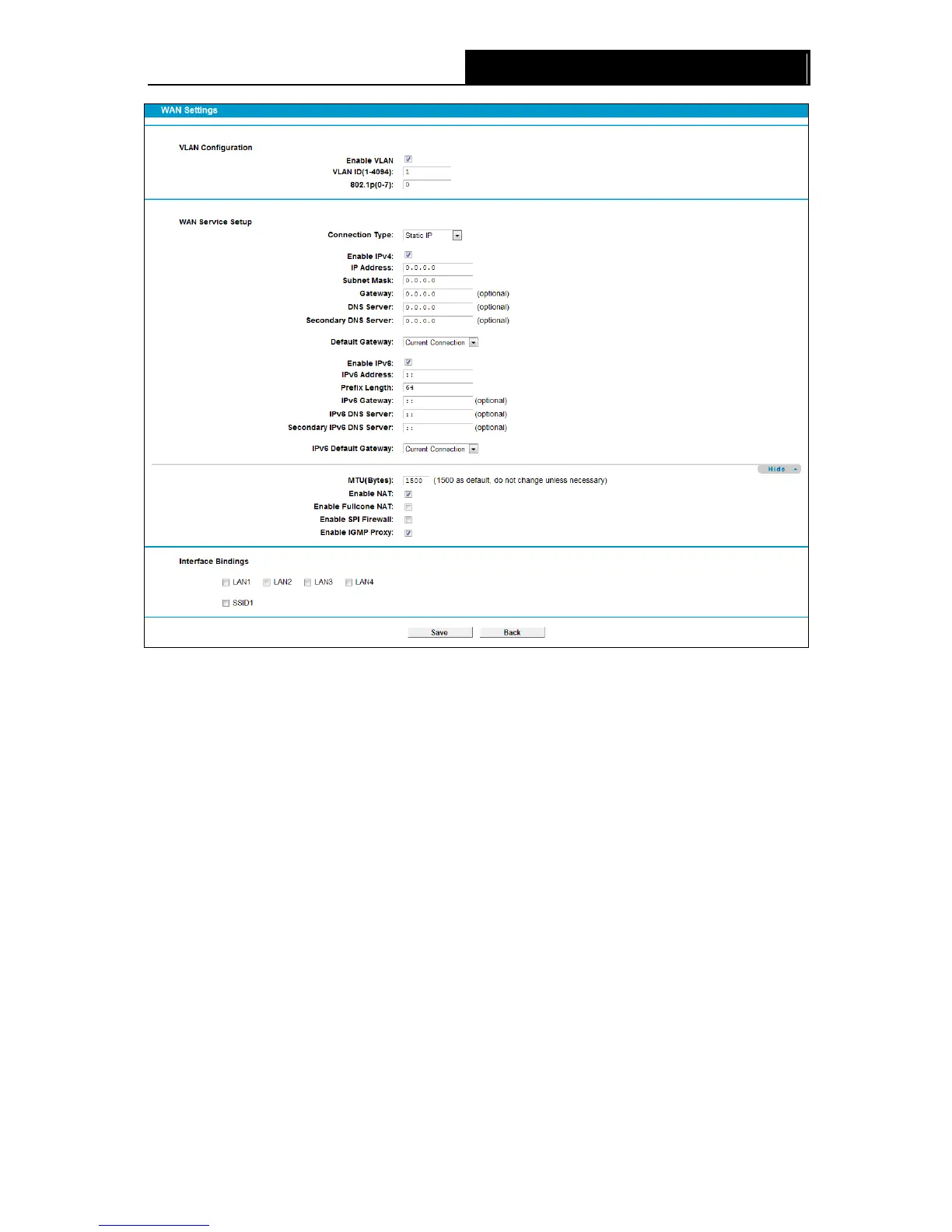

Figure 4-9
VLAN Configuration:
Enable VLAN: Enable or disable this function. Virtual LAN (VLAN) is a group of devices on
one or more LANs that are configured so that they can communicate as if they were attached
to the same LAN, when in fact they are located on a number of different LAN segments.
Because VLANs are based on logical instead of physical connections, it is very flexible for
user/host management, bandwidth allocation and resource optimization. If you want to active
this function, this function must be enabled.
VLAN ID (1~4094): Identifies the virtual channel endpoints in a VLAN network. The valid
range is from 1 to 4094. Please input the value provided by your ISP.
WAN Service Setup:
Enable IPv4
Check the box to enable IPv4.
IP Address: Enter the IP address in dotted-decimal notation provided by your ISP.
Subnet Mask: Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
Gateway: Enter the gateway IP address in dotted-decimal notation provided by your ISP.
DNS Server/ Secondary DNS Server: Here you can set DNS Server (at least one) manually.
The Route will use this DNS Server for priority.
23
