4.17.3 Bandwidth Control

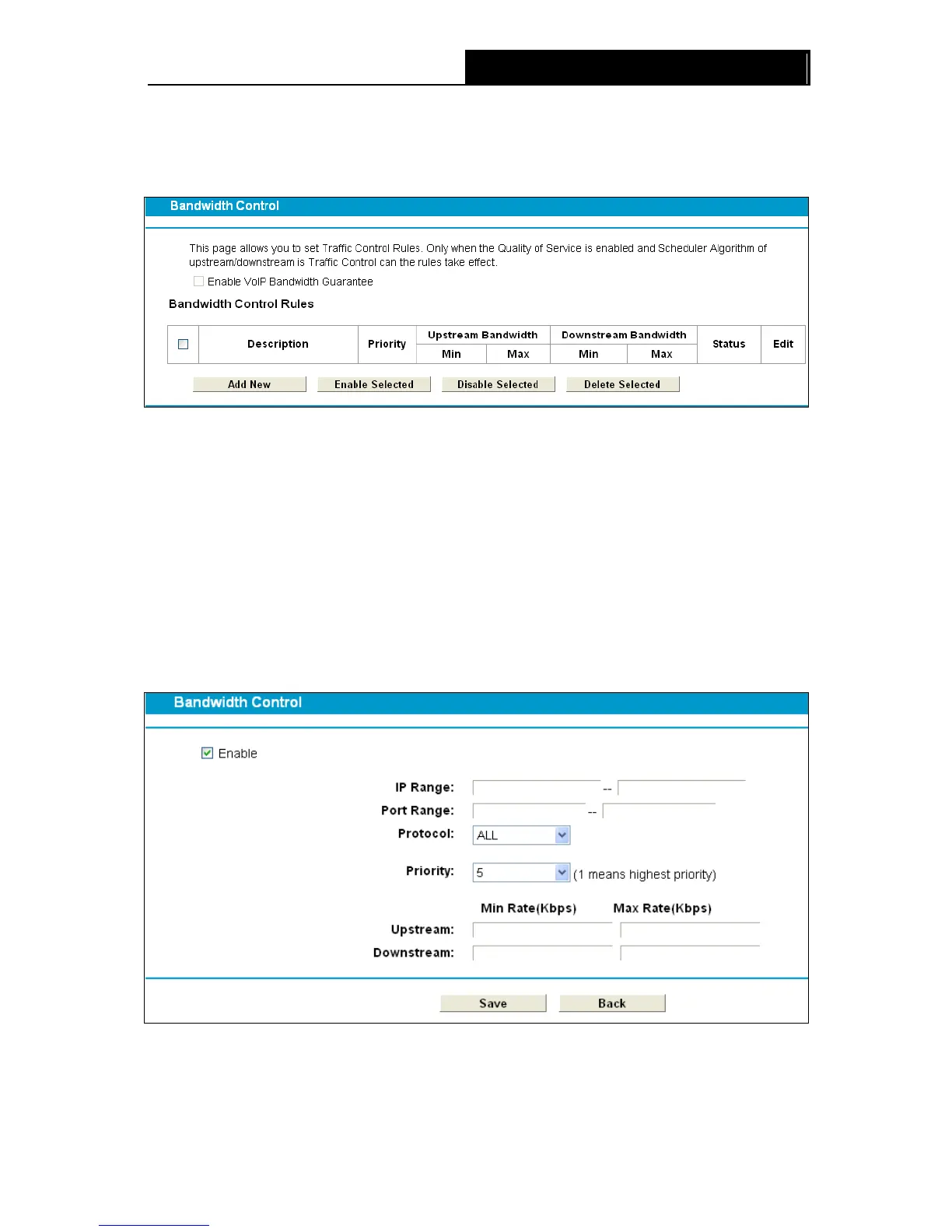

Choose menu “Quality of Service”
→
“Bandwidth Control”, and then you can view and
configure the Bandwidth Control rules in the screen below.
Figure 4-116
 Description: This is the information about the rules such as address range.
 Upstream Bandwidth: This field displays the max and mix upload bandwidth through the
WAN port, the default is 0.
 Downstream Bandwidth: This field displays the max and mix download bandwidth through
the WAN port, the default is 0.
 Edit: Click Edit to modify the rule.
To add/modify a Bandwidth Control rule, follow the steps below.
1. Click Add New shown in Figure 4-116, you will see a new screen shown in Figure 4-117.
2. Enter the information like the screen shown below.
Figure 4-117
3. Click the Save button.
