TP-Link TX-VG1530

TX-VG1530
N300 Wireless VoIP GPON Router User Guide

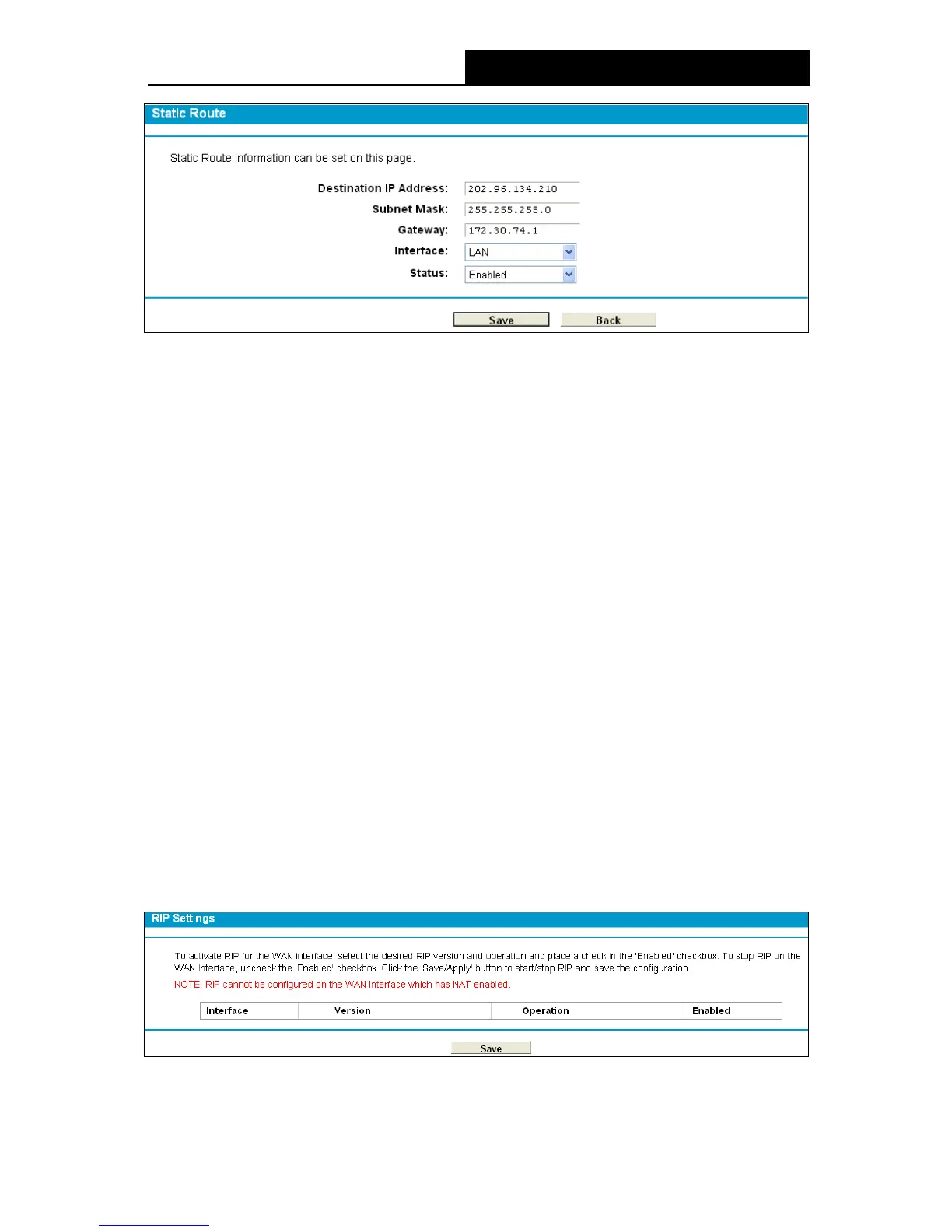

Figure 4-78
2. Enter the following data:
 Destination IP Address: The Destination IP Address is the address of the network or host
that you want to assign to a static route.
 Subnet Mask: The Subnet Mask determines which portion of an IP Address is the network
portion, and which portion is the host portion.
 Gateway: Here you should type the Gateway address correctly, and the option for
Interface will adopt the default Gateway address for the Static Route.
Interface: Select the Interface name in the text box, or else, the default Use Interface will be
adopted for the Static Route.
 Status: Select Enabled or disabled from the drop-down list.
3. Click Save to save your settings as shown in Figure 4-78.
To modify or delete an existing entry:
1. Find the desired entry in the table.
2. Click Edit as desired on the Edit column.
Click the Enable/ Disabled Selected button to make selected entries enabled/ disabled.
Click the Delete Selected button to delete selected entries.
4.10.3 RIP Settings
Choose “Route Settings”“RIP Settings”, you can see the RIP (Routing Information Protocol)
screen which allows you to configure the RIP.
Figure 4-79
78
