TX-VG1530
N300 Wireless VoIP GPON Router User Guide
Click the Save button to save your settings.
4.4.9 IPSec VPN

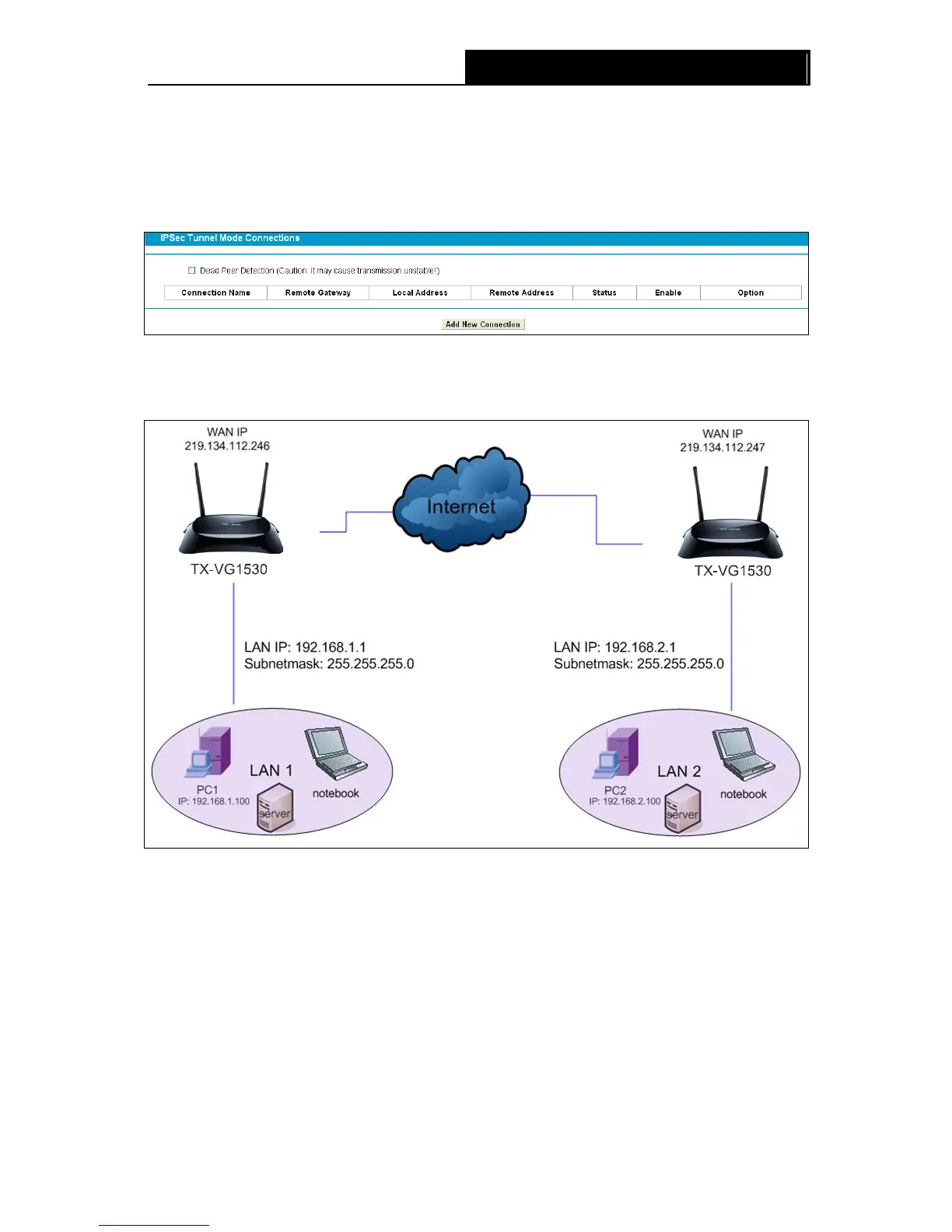

Choose “Network”“IPSec VPN”, you can add/remove or enable/disable the IPSec tunnel
connections on the screen as shown in Figure 4-24.
Figure 4-24
This section will guide you to configure a VPN tunnel between two TX-VG1530s. The topology is
as follows.

Note:
You could also use other VPN Routers to set VPN tunnels with TX-VG1530. TX-VG1530 supports
up to 10 VPN tunnels simultaneously.
Click Add New Connection in Figure 4-24 and then you will enter the screen shown in Figure
4-25.
35
