TX-VG1530
N300 Wireless VoIP GPON Router User Guide
 Mark Differentiated Service Code Point (DSCP): Enter the number to remark the DSCP
priority. To make this function take effect, make sure you have enabled DSCP mark in Figure
4-111.
 Mark 802.1P Priority: Select the type to remark the 802.1p priority. To make this function
take effect, make sure you have enabled 802.1P mark in Figure 4-111.
Click the Save button to save your settings.
Click Back to go back to the previous page
Business Classification: The QoS of this GPON router supports VoIP, TR069 and Other
business packets. Click Add New button shown in Business Classification part in Figure 4-112,
you can add a new Classification in Figure 4-115.

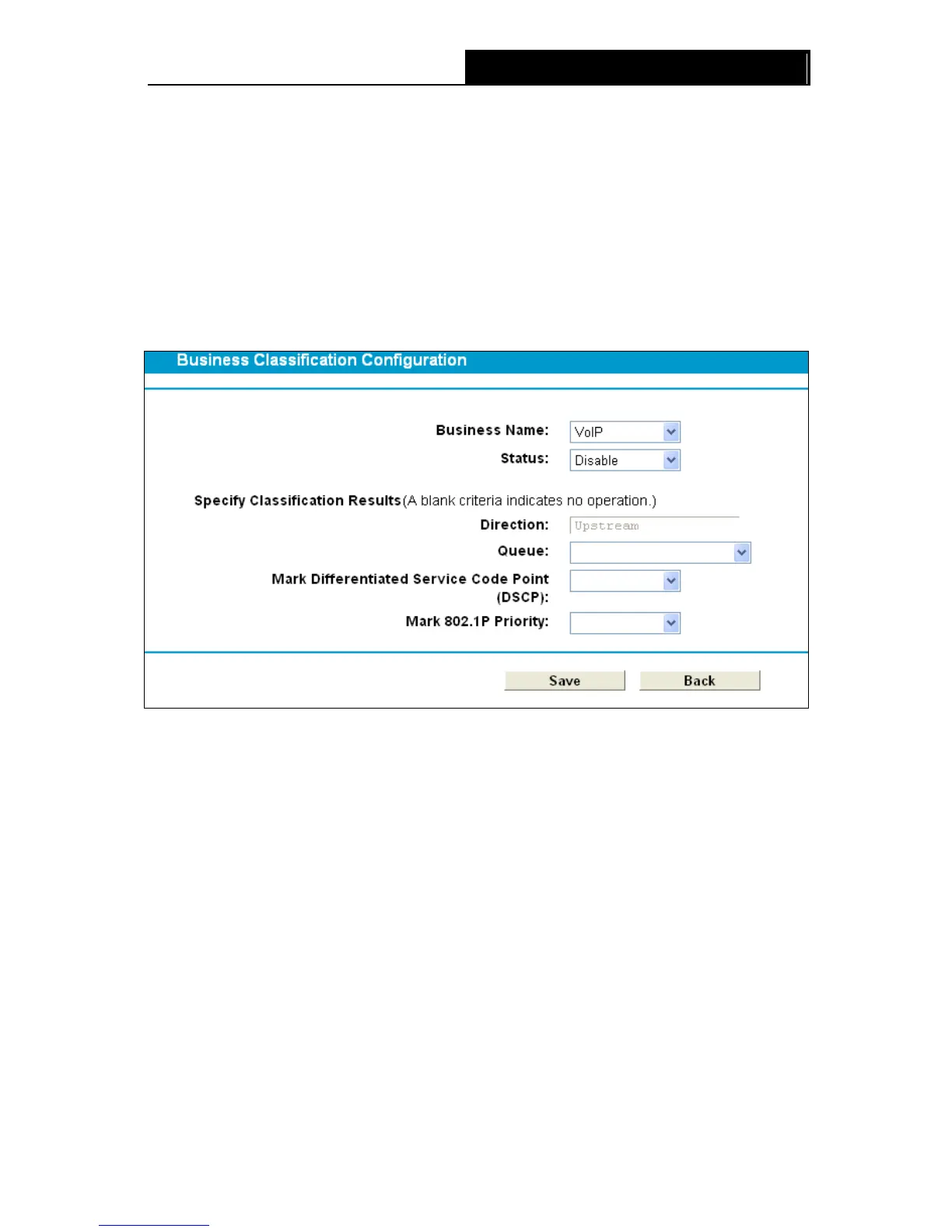

Figure 4-115
 Business Name: Select your desired type from the dropdown list.
 Status: Select the status of the classification is enabled or disabled..
 Direction: Displays the current business direction.
 Queue: Select your desired queue you have set from the dropdown list.
 Mark Differentiated Service Code Point (DSCP): Enter the number to remark the DSCP
priority. To make this function take effect, make sure you have enabled DSCP mark in Figure
4-111.
 Mark 802.1P Priority: Select the type to remark the 802.1p priority. To make this function
take effect, make sure you have enabled 802.1P mark in Figure 4-111.
Click the Save button to save your settings.
Click Back to go back to the previous page
102
