【F2.33】 Starting Frequency
Set the starting frequency of the drive, and the setting range is 0.1~10.0Hz
【F2.34】 Starting Voltage
Set the output voltage of starting frequency to give more power to overcome the
load inertia.
100V/200V series range: 0.1~50.0V
400V series range: 0.1~100.0V
【F2.35】 Base Frequency
Motor’s base frequency. Set the frequency bases on the nameplate of motor. The
setting range: 0.1~400.00Hz
【F2.36】 Base Voltage
Set the base voltage bases on the nameplate of motor.
100V/200V series range: 0.1~255.0V
400V series range: 0.1~510.0V

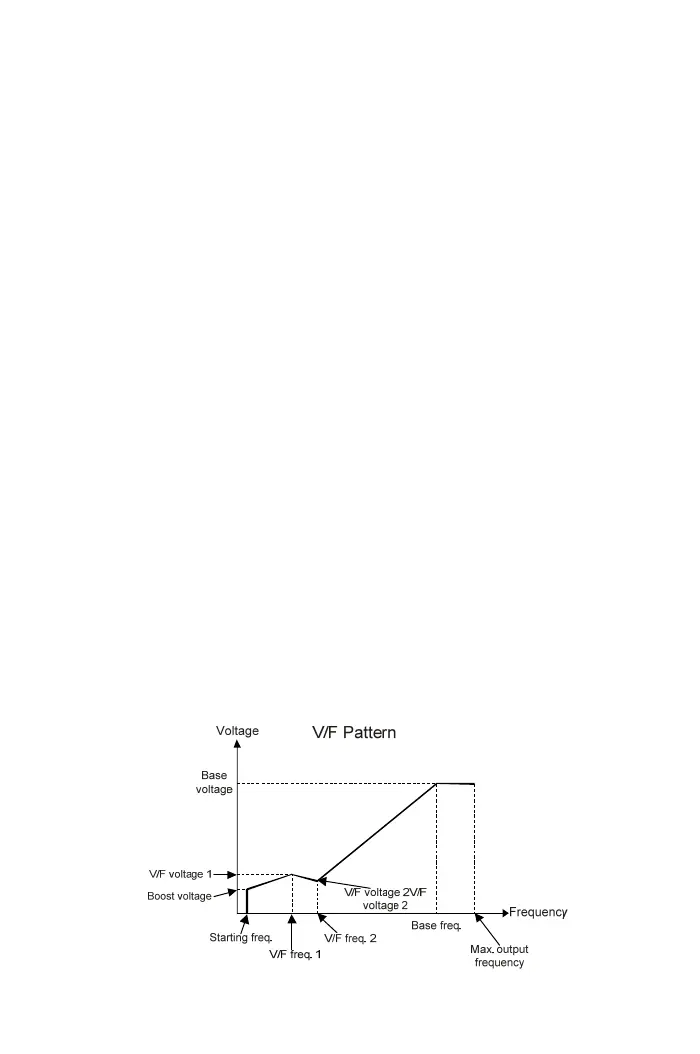

【F2.37】 V/F Frequency 1
Frequency at the first point of V/F pattern. The setting range is 0.0~399.9Hz
【F2.38】 V/F Voltage 1
Voltage at the first point of V/F pattern
100V/200V series range: 0.0~255.0V
400V series range: 0.0~510.0V
【F2.39】 V/F Frequency 2
Frequency at the second point of V/F pattern(refer to the setting of F2.37)
【F2.40】 V/F Voltage 2
Voltage at the second point of V/F pattern(refer to the setting of F2.38)
52
