※The interrelationships are as follows:
(I) Base frequency＞V/F frequency 2＞V/F frequency 1＞Start frequency
(II) V/F frequency 2＜V/F frequency 1, the V/F frequency (voltage) 2 have no
effect
(III) When V/F frequency 1 and 2＜Starting frequency, the V/F frequency
(voltage) 1 and 2 have no effect
(IV) No limitation between F2.34, F2.36, F2.38, F2.40

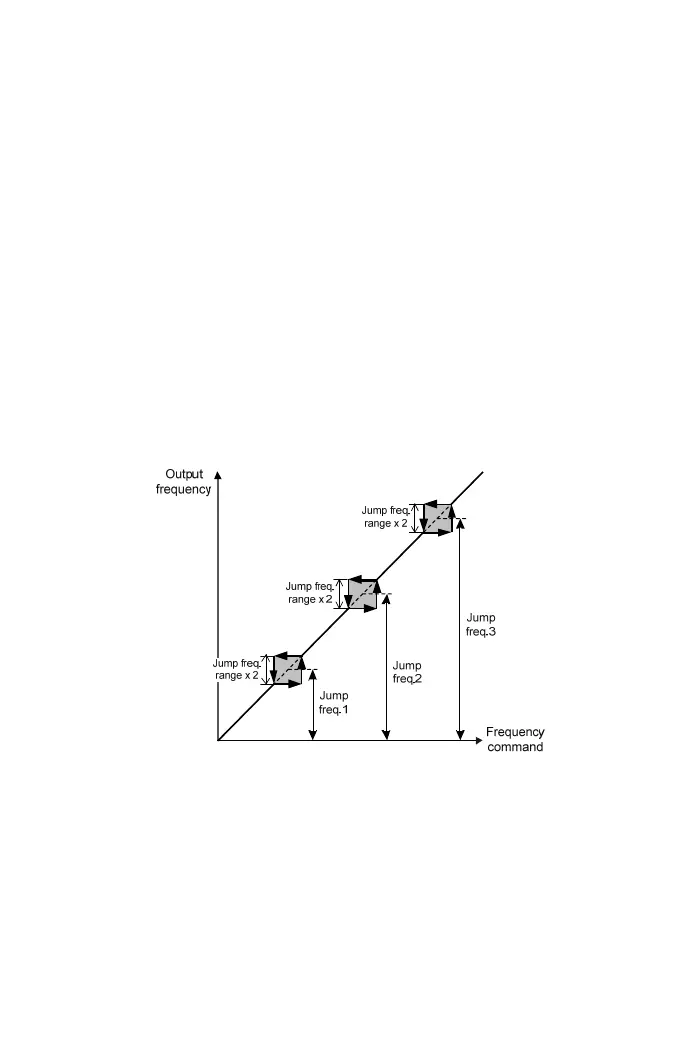

【F2.42】 Jump Frequency 1
| |
【F2.44】 Jump Frequency 3
In order to avoid the mechanical resonance, these parameters allow resonant
frequency to be jumped. The setting range is 0.0~400.00Hz
【F2.45】 Jump Frequency Range
There are three sets of jump frequency and one type of jump frequency interval.
The setting range is 0.0~25.5Hz
【F2.47】 Frequency Upper Limit
Set the ratio of the frequency upper limit (1.00=maximum output frequency), and
the setting range is 0.00~1.00
Output frequency upper limit = Frequency upper limit (F2.47)
× Maximum output
frequency (F2.32)
53
