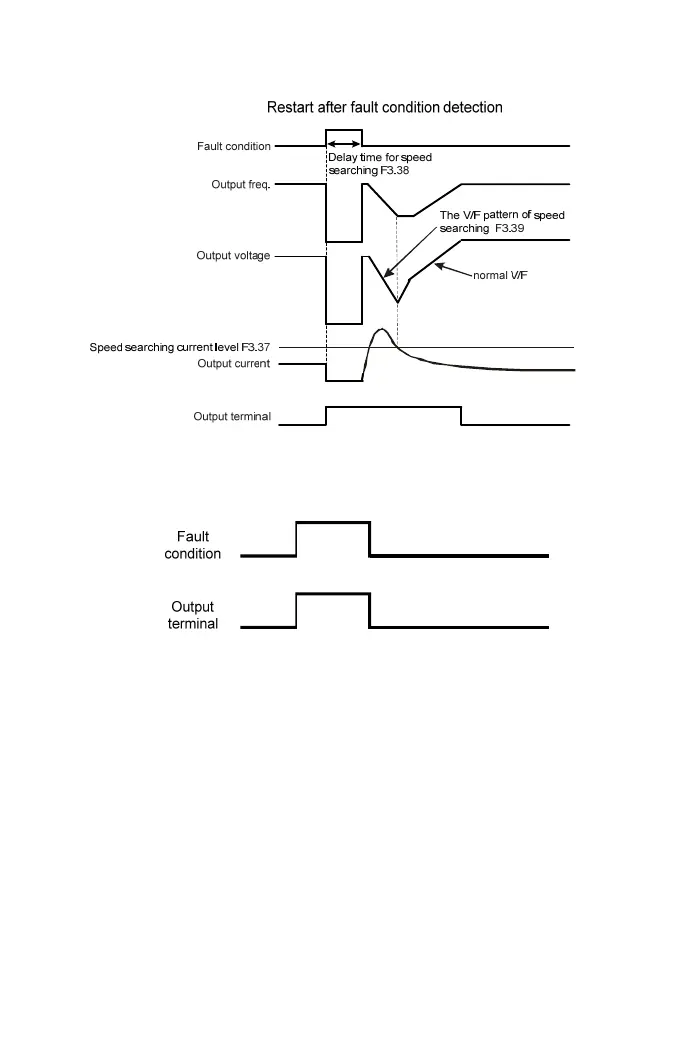

±11: Fault detection
±12: Start detection of sequential operation control
Detection when sequential operation control starts.
±13: One complete operation sector detection of sequential operation control
After one complete operation phase of sequential operation control, Ta/Tc
terminals will output the detection signal for 0.1 seconds.
±14: One complete operation cycle detection of sequential operation control
After one complete operation cycle of sequential operation control, Ta/Tc
terminals will output the detection signal for 0.1 seconds.
±15: Pause command detection of sequential operation control
Ta/Tc terminal outputs detection signal when the pause command is given
during sequential operation control.
±16: Detection of counter value 1
Detection when the counting value is equal to the setting value of F5.36
±17: Detection of counter value 2
75
