100ms
20ms

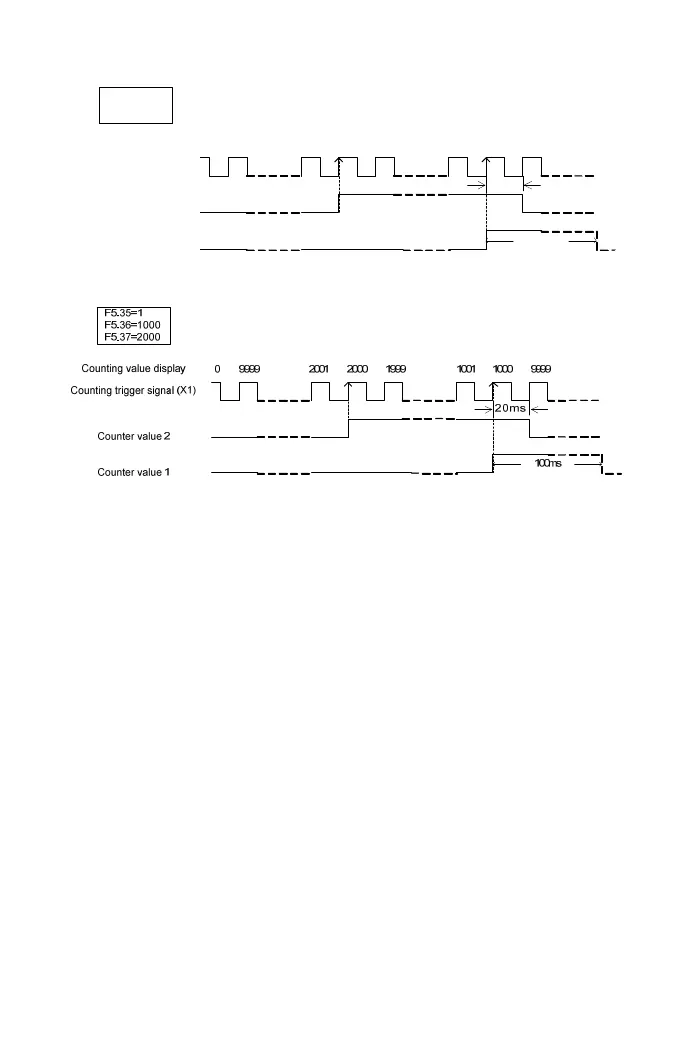

Counting value display
Counting trigger signal (X1)
Counter value 1
F5.35=0
F5.36=500
F5.37=400
Counter value 2
Down counting mode:
※The cycle of triggering signal cannot be less than 20ms(＜50Hz)
※The detection signal of multi-function output terminal must remain at least for
100ms.
【F5.39】 Constant Speed Detection Range
Setting range: 0.0~10.0Hz; see the constant speed detection setting of
multi-function output terminal (F5.26)
【F5.40】 Frequency Detection Range
Setting range: 0.0~10.0Hz; see the frequency detection setting of multi-function
output terminal (F5.26)
【F5.41】 Frequency Detection Level
Setting range: 0.0~400.00Hz; see the frequency detection setting of multi-function
output terminal (F5.26)
