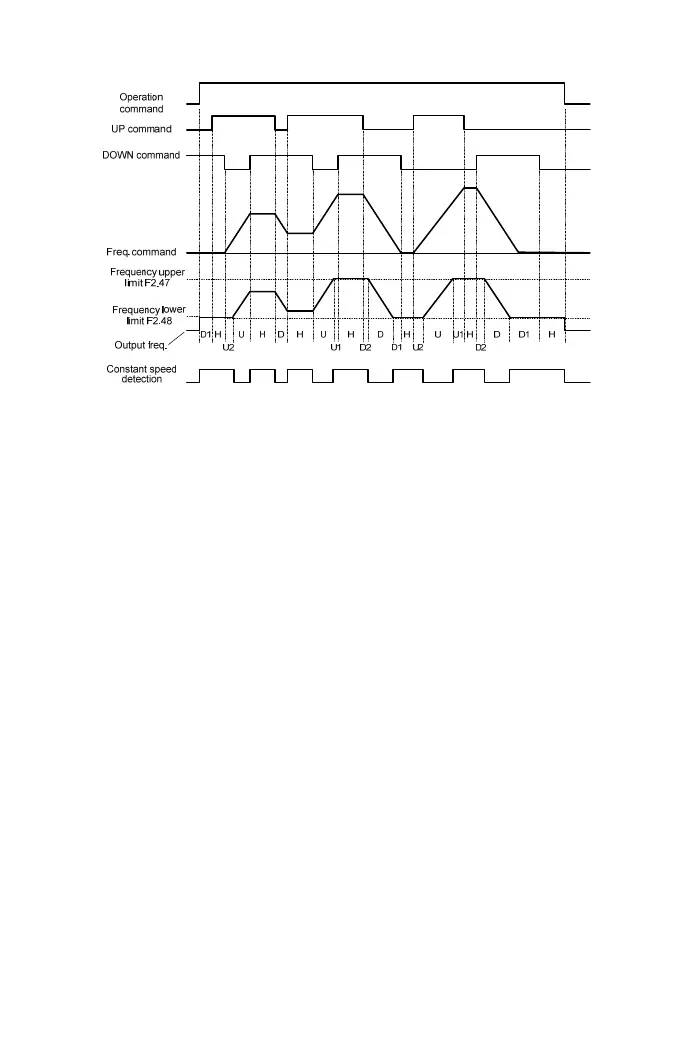

U=UP (acceleration) status
D=DOWN (deceleration) status
H=HOLD (constant speed) status
U1=UP status bounded at the upper limit of the frequency
U2=UP status bounded at the lower limit of the frequency
D1=DOWN status bounded at the lower limit of the frequency
D2=DOWN status bounded at the upper limit of the frequency
【F5.35】 Counting Mode
The settings are listed as below :
0: Up counting mode
1: Down counting mode
【F5.36】 Counter Value 1
Setting the number of counting value to conduct the relay outputs for 100ms; The
setting of counting value: 0~9999 times(see the setting of counting value detection
in 5.26).
【F5.37】 Counter Value 2
Setting the number of counting value to conduct the relay outputs until complete the
cycle. The counter setting value: 0~9999 times(see the setting of counting value
detection in 5.26).
Up counting mode:
77
