Trane Optimus RTHD - General Information; Unit Description and Components

10
RTHD-SVX01L-EN
General Information
Unit Description
The RTHD units are single compressor, helical-rotary type,
water-cooled liquid chillers designed for installation
indoors. Each unit is a completely assembled, hermetic
package that is factory-piped, wired, leak-tested,
dehydrated, charged (optional), and tested for proper
control operation before shipment.
Figure 2, p. 10 through show typical Optimus™ units and
their components. Water inlet and outlet openings are
covered before shipment. The oil tank is factory charged
with the proper amount of refrigeration oil. The unit can be
factory charged with refrigerant.

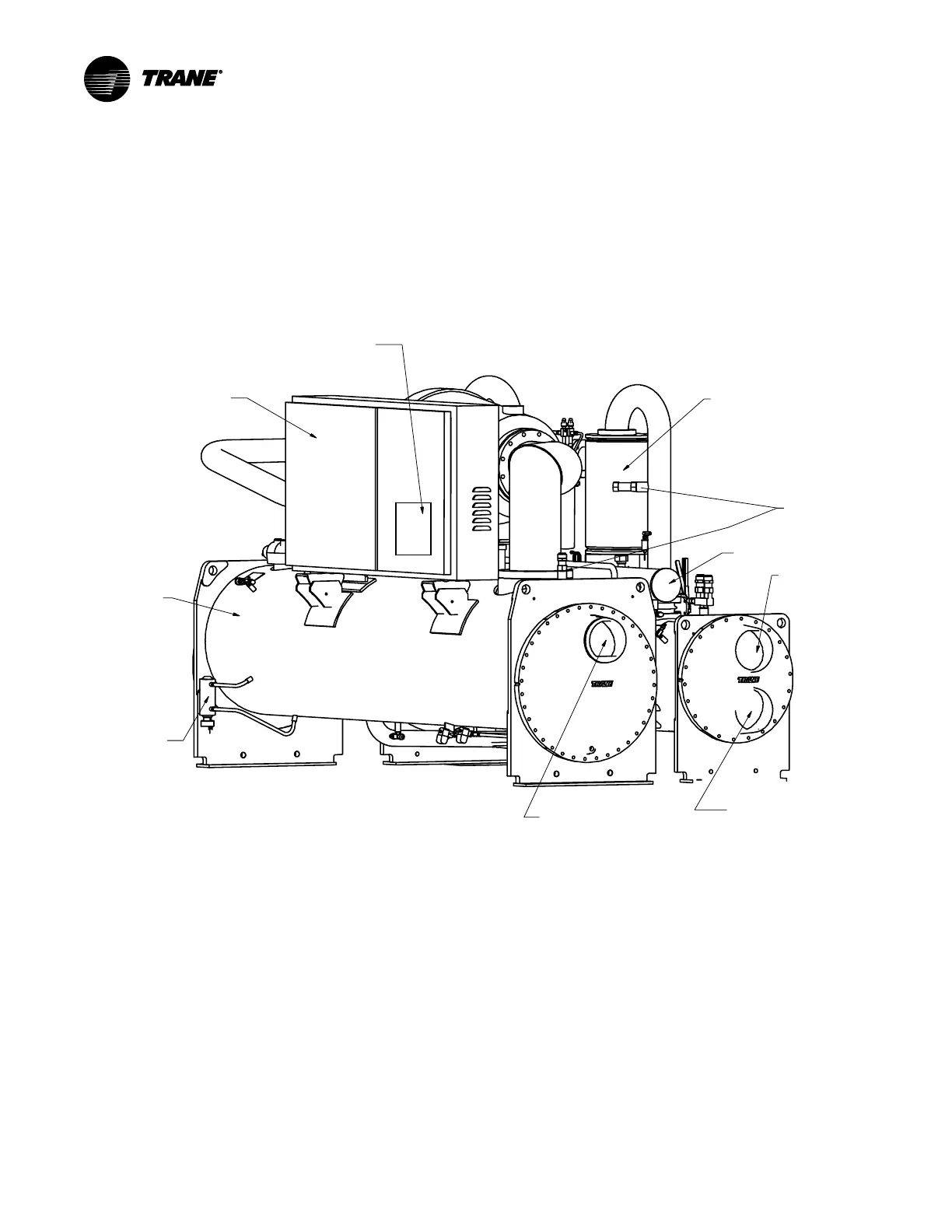

Figure 2. Component location — Optimus™ wye-delta starter (front view)
TD7 Interface
Liquid Level
Sensor
Evaporator
Water Outlet
Condenser
Water Outlet
Condenser
Water Inlet
Control Panel
Evaporator
Oil Separator
Relief Valves
Oil Sump
