Trane Optimus RTHD - Isolator Pad Placement and Pressure Drop Data

24
RTHD-SVX01L-EN

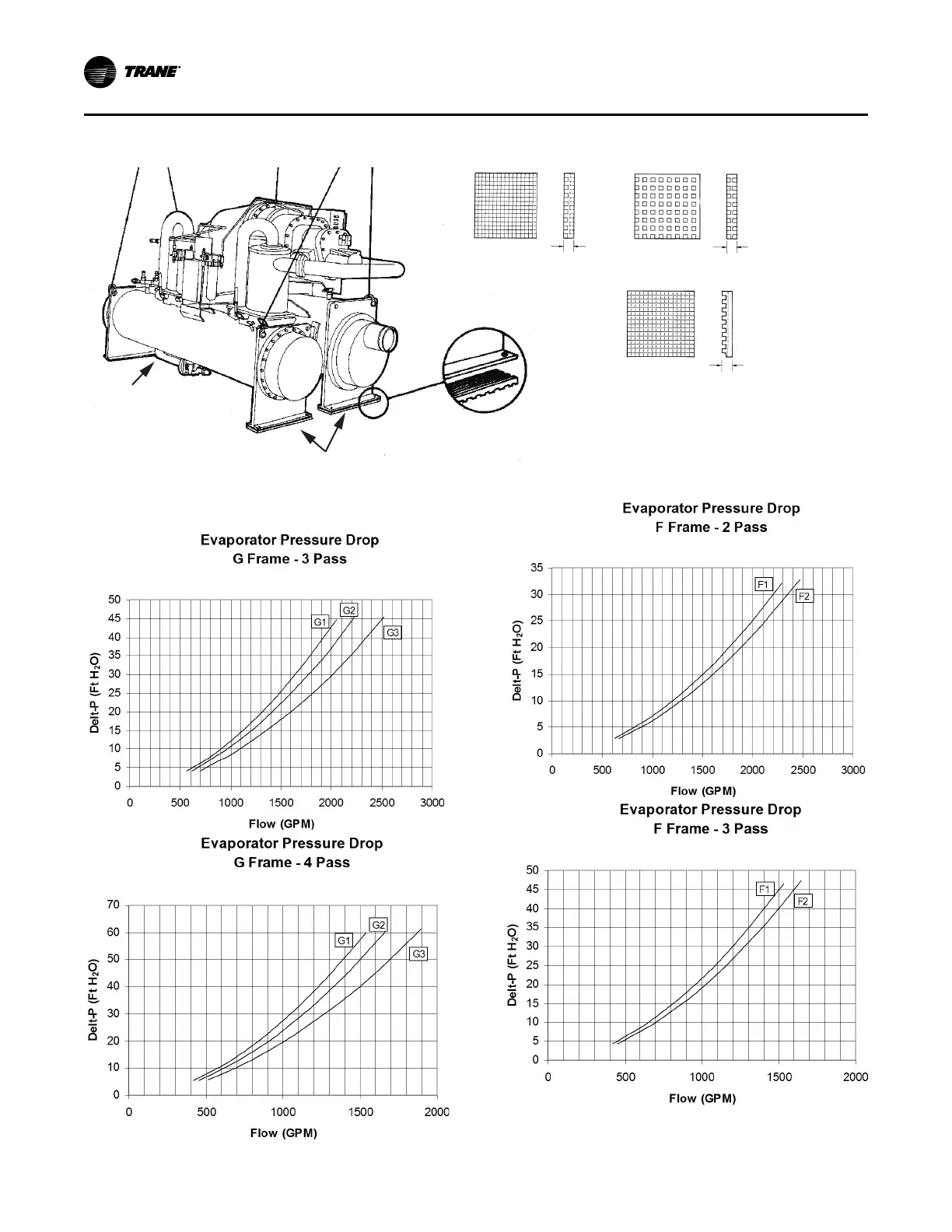

Figure 12. Isolator pad placement
Typical Elastomeric
Isolation Pad
Pads extend the full
width of the legs
A
(hidden leg)
B
C
D
Durometer: 50 ± 5 Durometer: 40 ± 5
Durometer: 55± 5
0.31
0.31
0.31
NOTE: Level unit to 1/4” (6.25mm) across length and width.
Water Pressure Drop Data
Installation Mechanical
