Trane Optimus RTHD - Evaporator and Condenser Waterboxes (BBB;BCD); Evaporator and Condenser Waterboxes (CEF;CDE;DDE;EDE;DFF;EFF;CFF)

RTHD-SVX01L-EN
29

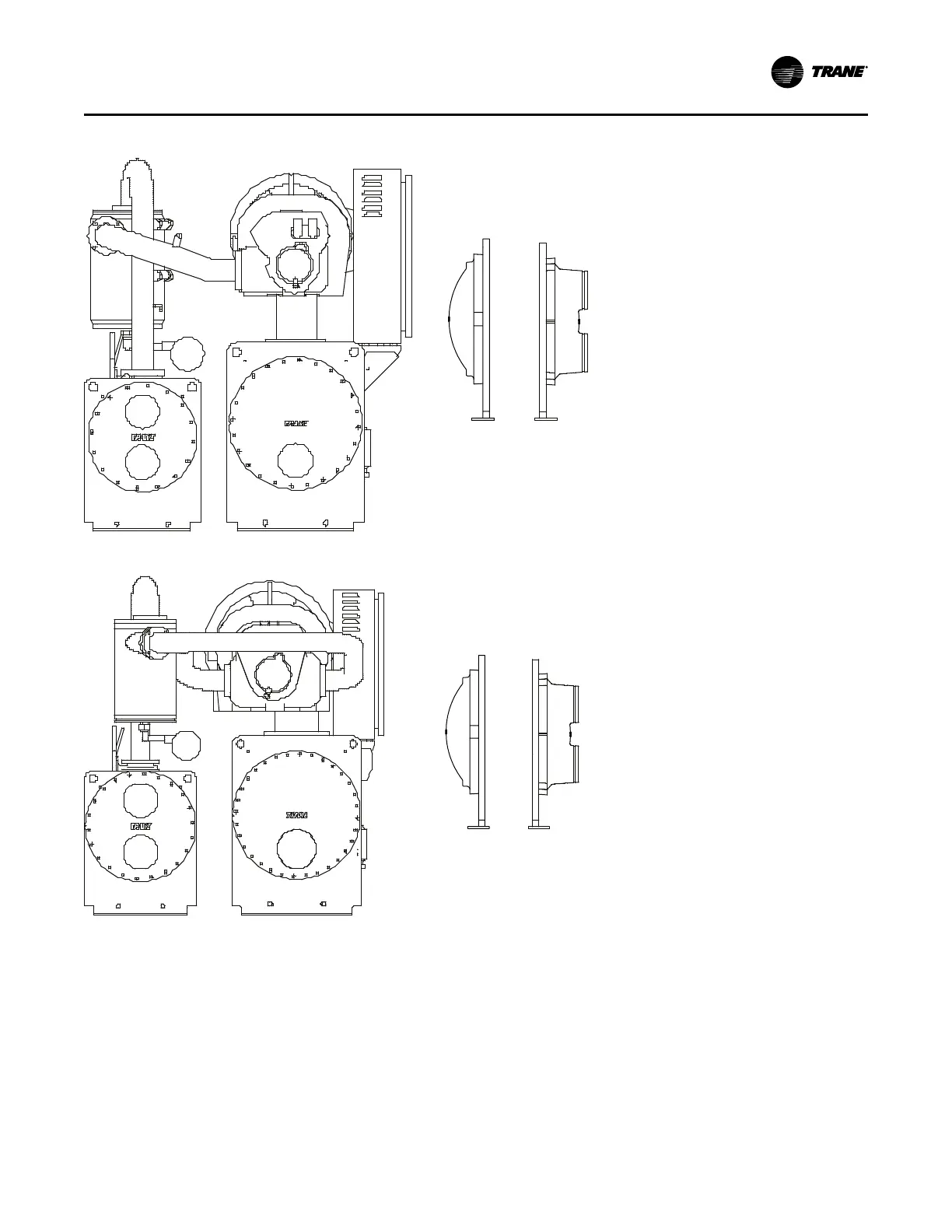

Figure 14. Condenser and evaporator waterboxes — BBB/BCD
2 Pass Evap Connection
Configuration
(left or right hand)
Depending on Water Inlet
OUT
IN
IN
COND
EVAP
Figure 15. Condenser and evaporator waterboxes — CEF/CDE/DDE/EDE/DFF/EFF/CFF
2 Pass Evap Connection
Configuration
(left or right hand)
Depending on Water Inlet
OUT
IN IN
COND EVAP
Installation Mechanical
