Moving and Rigging
The Model RTHC chiller should be moved by lifting at
designated lift points only. Refer to
Figure 5
and
Table 8
and
Table 7
for typical unit lifting and
operating weights. Refer to the rigging diagram that
ships with each unit for specific “per unit” weight
data.
WARNING
Always use lifting equipment with
a capacity exceeding unit lifting
weight by an adequate safety fac-
tor. (+10%). Follow the procedures
and diagrams in this manual and
in the submittal. Failure to do so
can result in personal injury or
death.

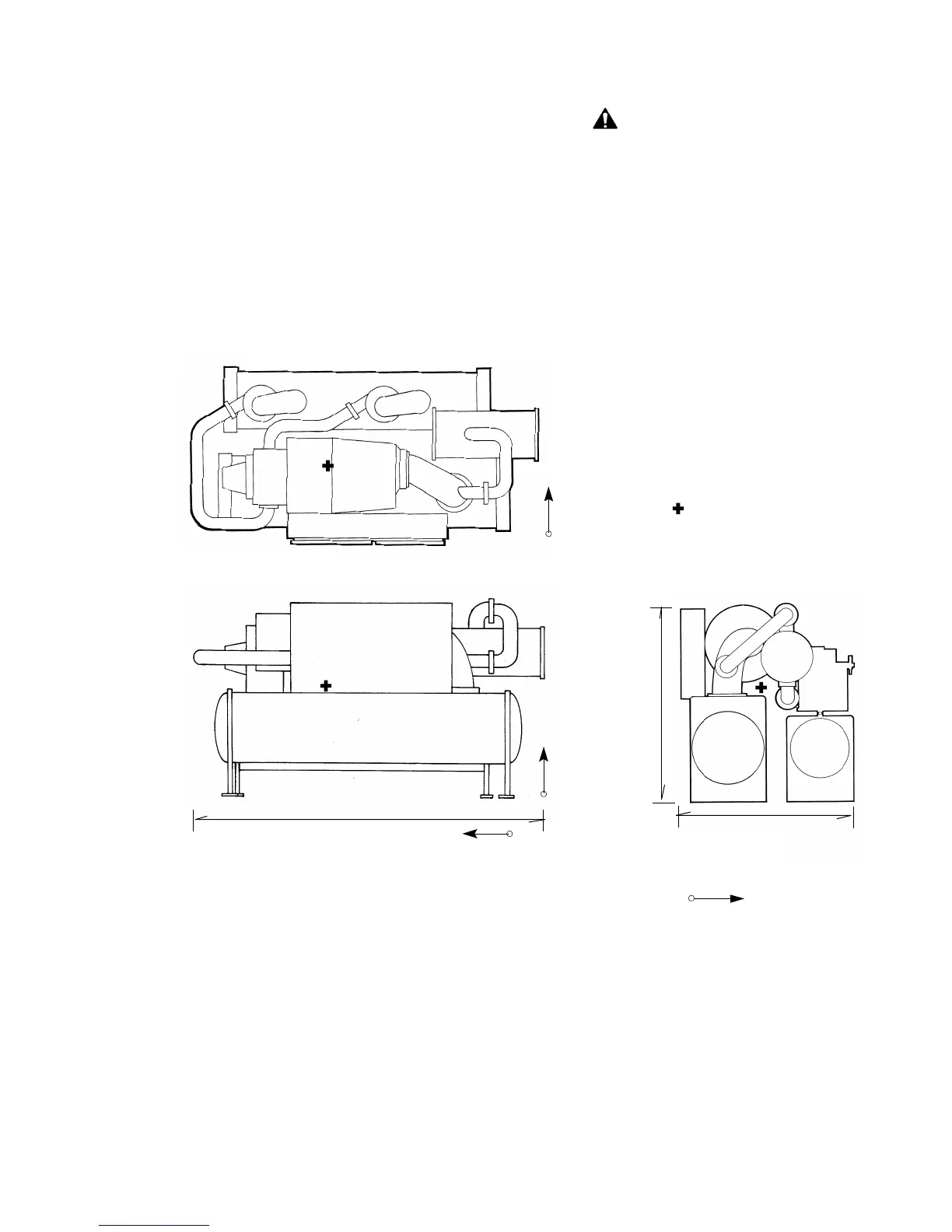

Figure 5
Unit Weights and Dimensions for Rigging
C
A
B
D
CBC, CDE: 129” (3400 mm)
DDE: 134” (3404 mm)
CBC: 72”
CDE, DDE, CEF,
CGG, DGG: 80”
CBC: 68” (1727 mm)
CDE, DDE, CEF: 68” (1727 mm)
DFF: 69” (1753 mm)
Dimensions are the same
for D1 and D2 units
Y
X
= C.G. (see Table 9)
X
Z
(1829 mm)
(2032 mm)
(1930 mm)
CGG, DGG: 70” (1778 mm)
DFF: 76”
BCD: 143” (3632 mm)
BBB: 125” (3175 mm)
CEF: 145” (3683 mm)
DFF, CGG: 149” (3785 mm)
BBB, BCD: 71”
(1803 mm)
BBB, BCD: 65” (1651 mm)
To Next Page
