Trane RTHC - Isolator Pad Placement; Acceptable Pad Configurations; Oil Separator with Shipping Bracket Installed

2 - 8 RTHC-IOM-1C

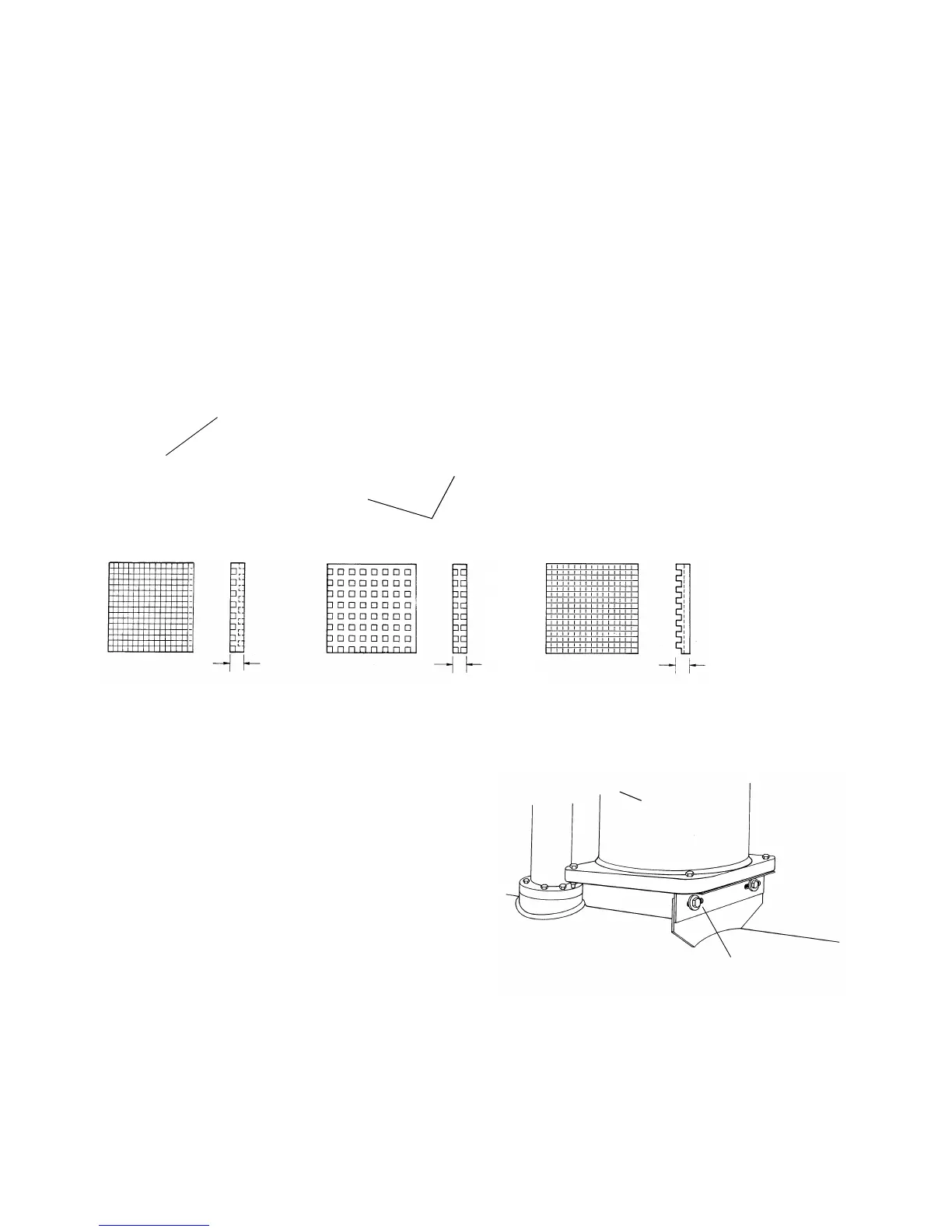

Figure 7
Isolator Pad Placement
8 The unit is shipped with four spacers (only three
on B family) on the compressor mount that protect
the isolation pads during shipping and in handling.
Remove these spacers
(Figure 9) before the unit
is operated.
9 Remove the shipping brackets from the bottom
sides of the oil separator(s) (see
Figure 8 ).
NOTE: Once shipping bracket(s) is removed, the oil
separator is only supported by the discharge line.
Figure 8
Oil Separator with Shipping Bracket Installed
Note: Level unit to 1/4” (6.35 mm) across
Typical Elastomeric
Pads extend the full
width of legs
Isolation Pad
Acceptable Pad Configurations
Durometer: 50 +/-5
width and length
0.31
0.31
0.31
Durometer: 40 +/-5 Durometer: 55 +/-10
A (hidden leg)
B
C
D
Shipping Bracket
Oil Separator
