Trane RTHC - Water Pressure Drop Data; Condenser Pressure Drop

Installation, Operation and Maintenance 2 - 17
Water Pressure Drop Data

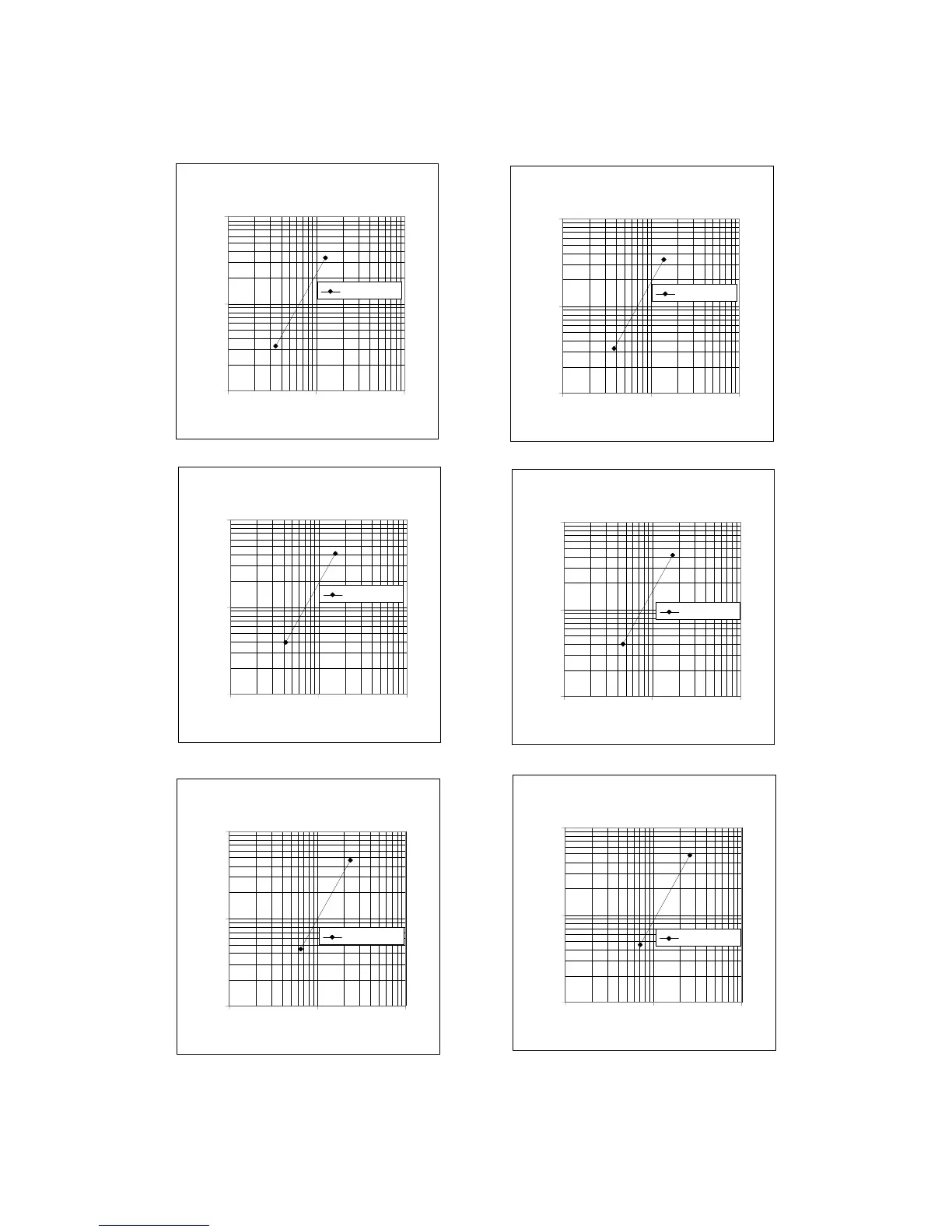

Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, E1
Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, E2
Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, F2
Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, F3
Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, G2
Condenser Pressure Drop
1
10
100
100 1000 10000
GPM
delta-P, Ft H2O
2-Pass, G3
