Installation, Operation and Maintenance 4 - 3

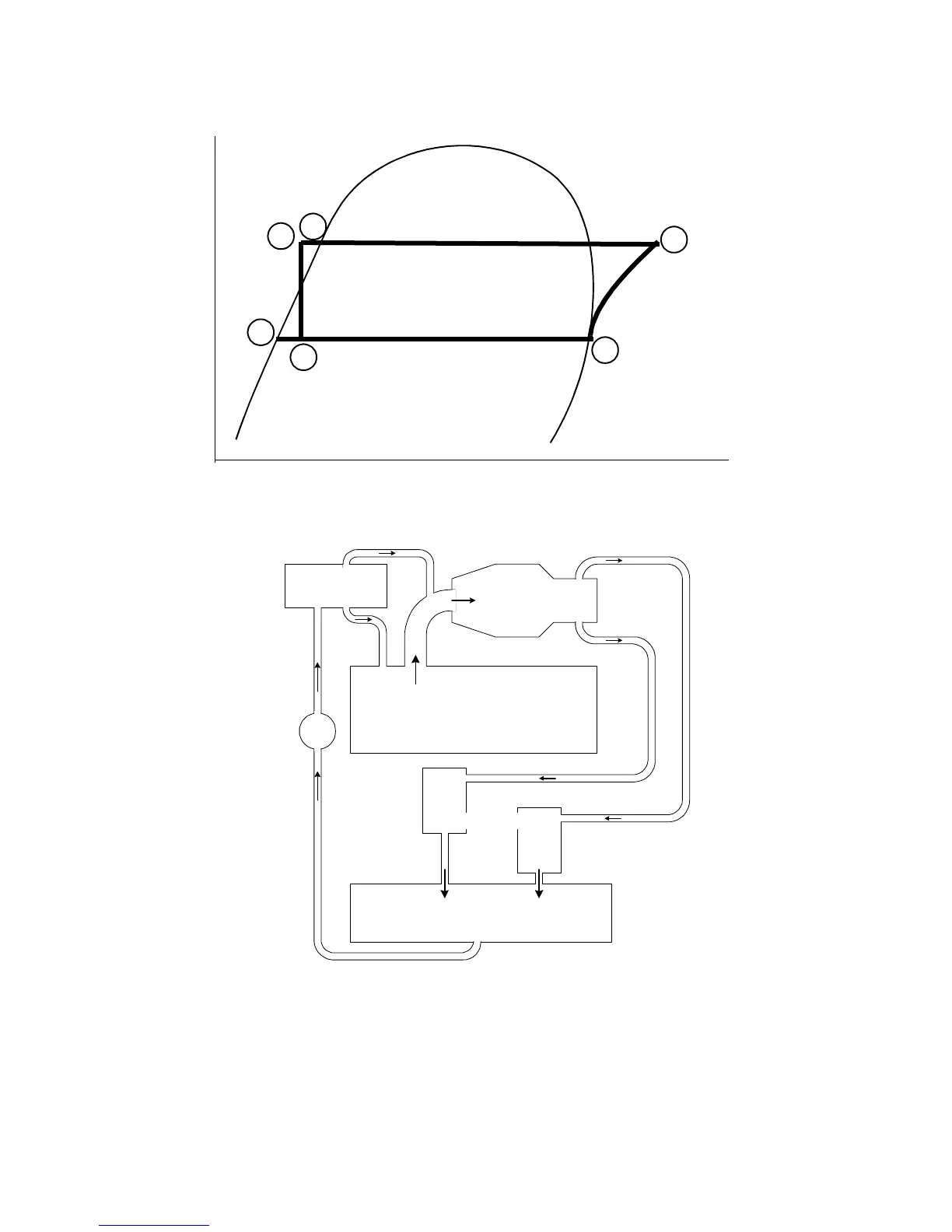

Figure 25
Pressure /Enthalpy Curve
Figure 26
Refrigerant Flow Diagram
Pressure
Enthalpy
Liquid
Gas
1
2
3
4
5
6
Compressor
Evaporator
Liquid/Vapor
Separator
Condenser
EXV
Oil Separators
