NOTE:
Duct flanges mount
7-7/16" down inside the
curb on the 1-1/2" curb
flanges.
All dimensions are in inches.

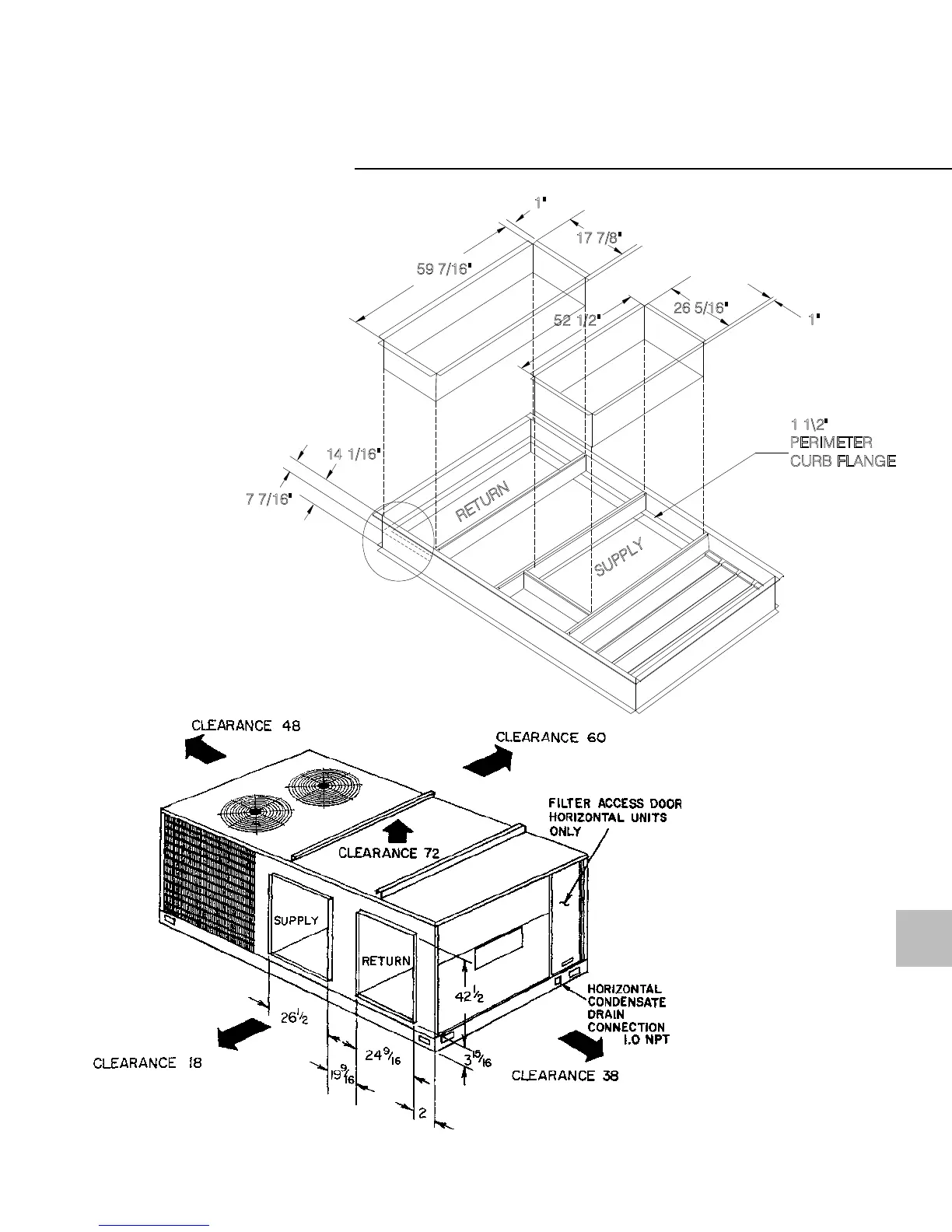

Downflow Duct Connections — Field Fabricated
Dimensional 10, 12½ Ton High Efficiency
Data 15, 17½ Ton Standard Effi-
ciency
Horizontal Unit Supply/Return
RETURN
SUPPLY
1 1\2"
PERIMETER
CURB FLANGE
59 7/16"
17 7/8"

26 5/16"
52 1/2"
1"
14 1/16"
7 7/16"
1"
