Trane Voyager - Maximum Unit and Corner Weights (Lbs) and Center of Gravity Dimensions (In.)

88
✲Indicates both downflow and horizontal units.
1

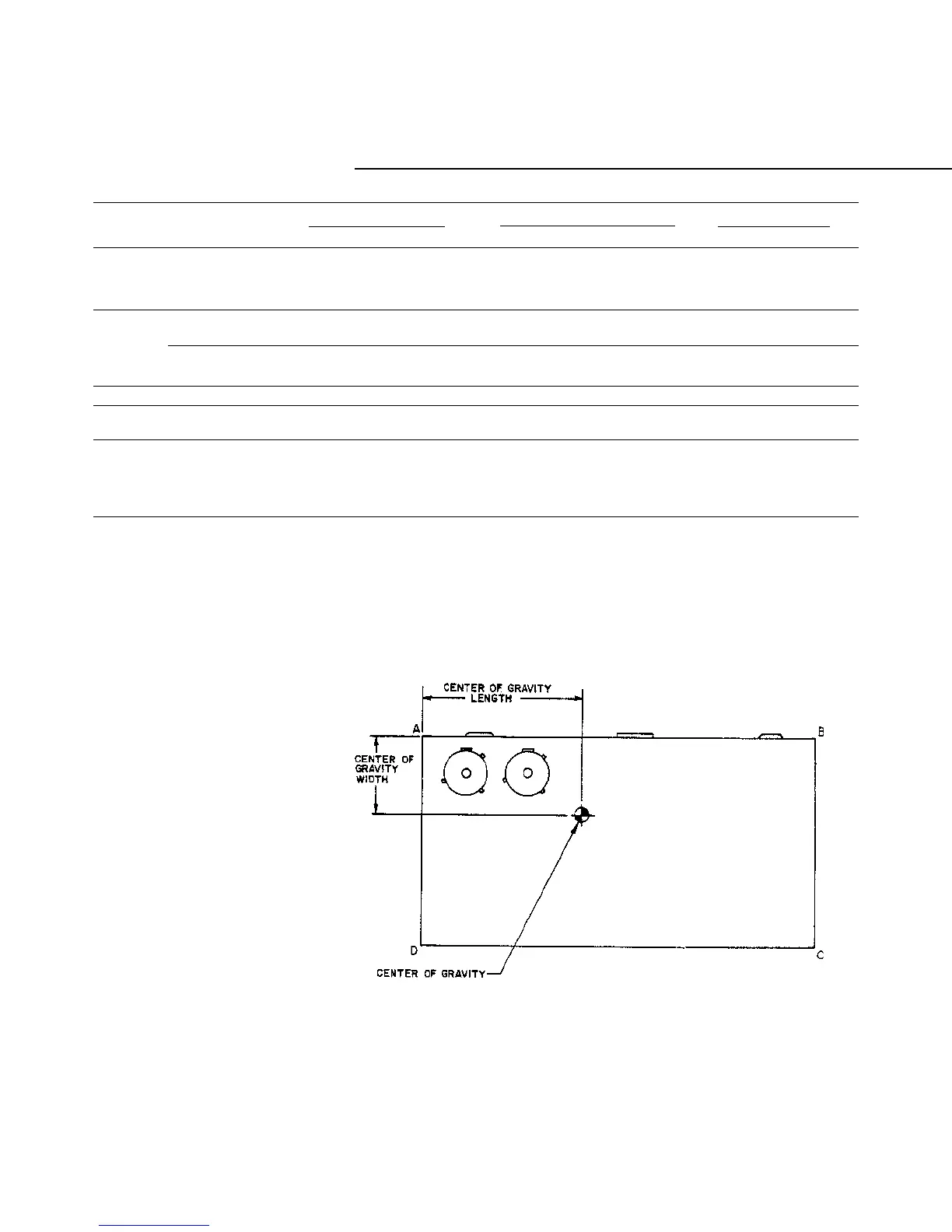

Table 88-1 Maximum Unit And Corner Weights (Lbs) And Center Of Gravity Dimensions (In.)
Unit
Maximum Weights (Lbs)
2
Corner Weights (Lbs) Center of Gravity (In.)
Tons Model No. Shipping Net A B C D Length Width
3 YCD036C/YCD037C 782/811 621/651 209/217 158/159 116/124 138/151 37/36 19/20
4YC
✲048C,/YC✲049C 811/845 639/672 216/221 159/168 123/131 142/153 37/37 19/20
5YC
✲060C,/YC✲061C 831/901 659/713 219/230 163/176 126/137 152/170 36/38 20/21
6¼ YC
✲075C/YC✲074C 938/956 750/767 238/240 192/199 144/151 176/177 39/40 21/21
YC✲090C/YC✲086C
Single Compressor
982/965 793/777 262/246 203/199 151/151 177/180 39/39 21/21
YC
✲090D/YC✲091D
Dual Compressor
1044/1057 855/869 297/298 208/214 151/156 199/200 37/37 20/20
8½ YC✲102C/YC✲103C 1169/1532 962/1233 329/395 244/326 165/231 223/280 38/43 20/26
10 YC✲120B/YC✲120C 1546/1191 1247/984 425/334 331/252 215/171 276/227 41/38 25/20
YC
✲121C 1891 1523 516 391 266 351 46 29
12½ YC✲150C/YC✲151C 1599/1915 1300/1547 430/523 342/383 234/271 294/370 42/45 26/30
15 YC
✲180B/YC✲181C 1906/2476 1538/2017 535/693 387/507 259/345 357/472 45/52 29/35
17½ YC
✲210C/YC✲211C 1987/2547 1619/2088 553/701 415/538 279/369 372/480 46/53 29/35
20 YC
✲240B/YC✲241C 2415/2645 1995/2186 656/751 503/568 352/373 459/494 53/53 35/34
25 YC
✲300B/YC✲301C 2525/2650 2105/2191 701/755 537/569 376/373 491/495 53/53 35/34
NOTE:
1. Corner weights are given for information only. 8½-25 ton units must be supported continuously by a curb or equivalent frame support.
2. Weights are approximate. Horizontal and Downflow unit and corner weights may vary slightly.
7½
Weights
