83
All dimensions are in inches.

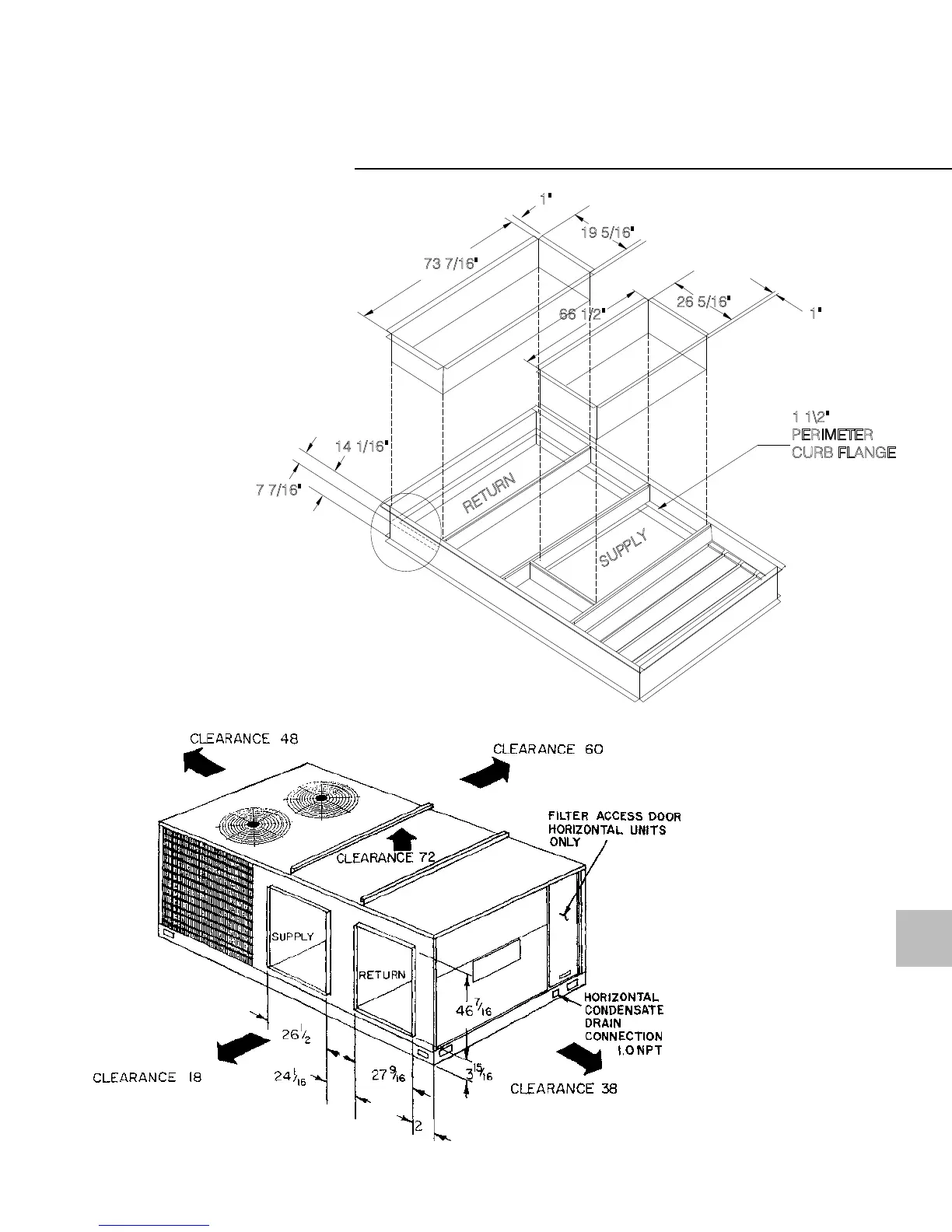

Downflow Duct Connections — Field Fabricated
NOTE:
Duct flanges mount
7-7/16" down inside the
curb on the 1-1/2" curb
flanges.
Dimensional 15-25 Ton High Efficiency
Data 20, 25 Ton Standard Effciency
Horizontal Unit Supply/Return
RETURN
SUPPLY
1 1\2"
PERIMETER
CURB FLANGE
73 7/16"
19 5/16"

26 5/16"
66 1/2"
1"
14 1/16"
7 7/16"
1"
