Vertical Turbine Pumps
Repairs
Document Name: 2001299-VTP-IOM-EN Page 49 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

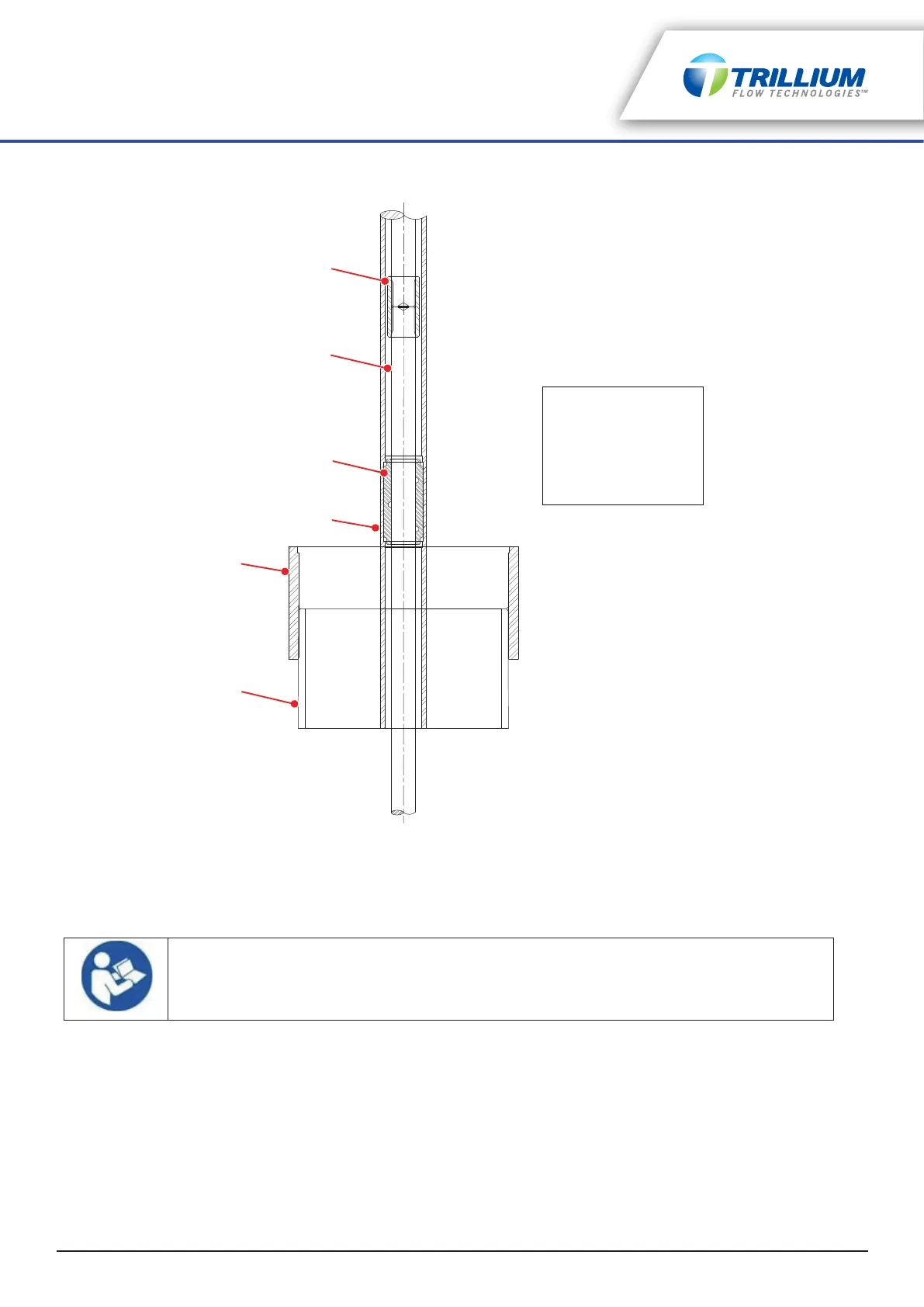

Figure 8-2: Enclosing Tube and Lineshaft
18. Disconnect each section of the column pipe one at a time and remove along with the shaft and
enclosing tube as applicable until all are removed.
19. Remove and place the bowl assembly in a clear area.
8.6 Inspection and Cleaning
• After disassembly, clean all components and examine thoroughly for physical defects, wear, corrosion
and damage.
• Check all bearing bores for total clearance over the shaft diameter. Replace all lineshaft bearings
indicating wear. The following indicates the maximum allowable diametrical clearance over existing
shaft diameter, in which case bearing must be replaced.
• 3/4
through 1 11/16 shaft - 0.020 clearance
• 1 15/16
through 2 7/16 shaft - 0.025 clearance
• 2 11/16
through 3 15/16 shaft - 0.030 clearance
Continue disassembly as outlined in separate Pump Bowl Instruction Manual.
6
5
4
3
2
1
1. Column Pipe
2. Pipe Coupling
3. Enclosing Tube
4. Lineshaft Bearing
5. Lineshaft
6. Lineshaft Coupling
