Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 64 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

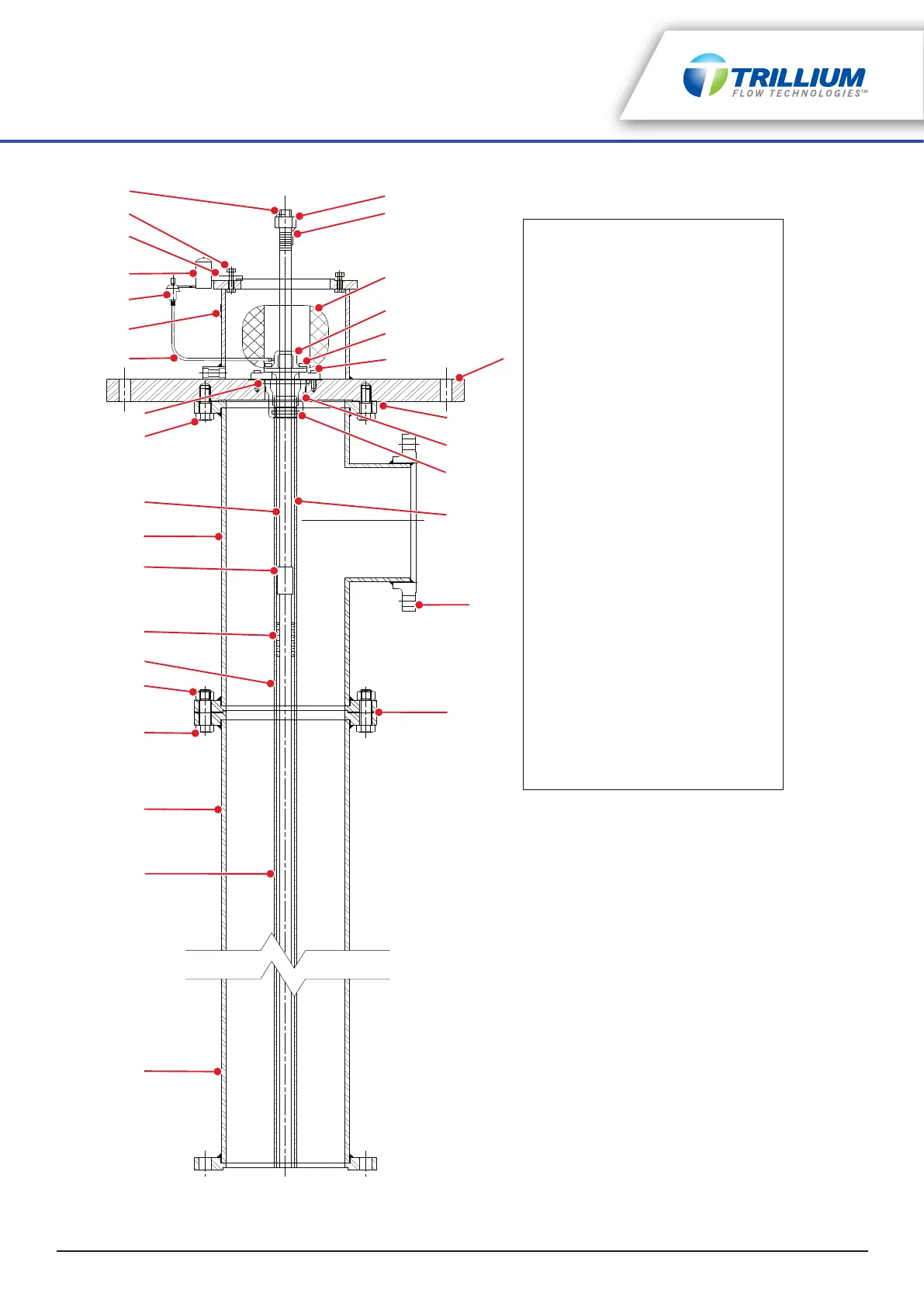

Figure 12-7: Type VU - Enclosed Lineshaft
(illustrated with manually operated lubrication assembly)
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
7
1. Headshaft Nut
2. Gib Key
3. Coupling Guard Assembly
4. Tension Nut
5. Tension Nut Lockscrew
6 Stuffing Box Cap Screws
7. Discharge Head
8. Top Column Flange Gasket
9. Tension Plate
10. Tube Nipple O-ring
11. Top Adjusting Tube
12. Underground Discharge Assembly
13. Column Gasket or O-ring
14. Bottom Column Pipe
15. 5 feet Enclosing Tube
16. Intermediate Column Pipe
17. Column Flange Bolts
18. Column Flange Nuts
19. Shaft Enclosing Tube
20. Lineshaft Bearing
21. Shaft Coupling
22. Top Column Pipe
23. Top Lineshaft
24. Top Column Flange Screws
25. Stuffing Box O-ring
26. Oil Line with Fittings
27. Nameplate with Drive Screws
28. Sight Feed Valve
29. Oil Pot with Cover
30. Oil Pot Mounting Bracket
31. Driver Bolts and Nuts
32. Headshaft Nut Lock Screw
3. Headshaft
