Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 61 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

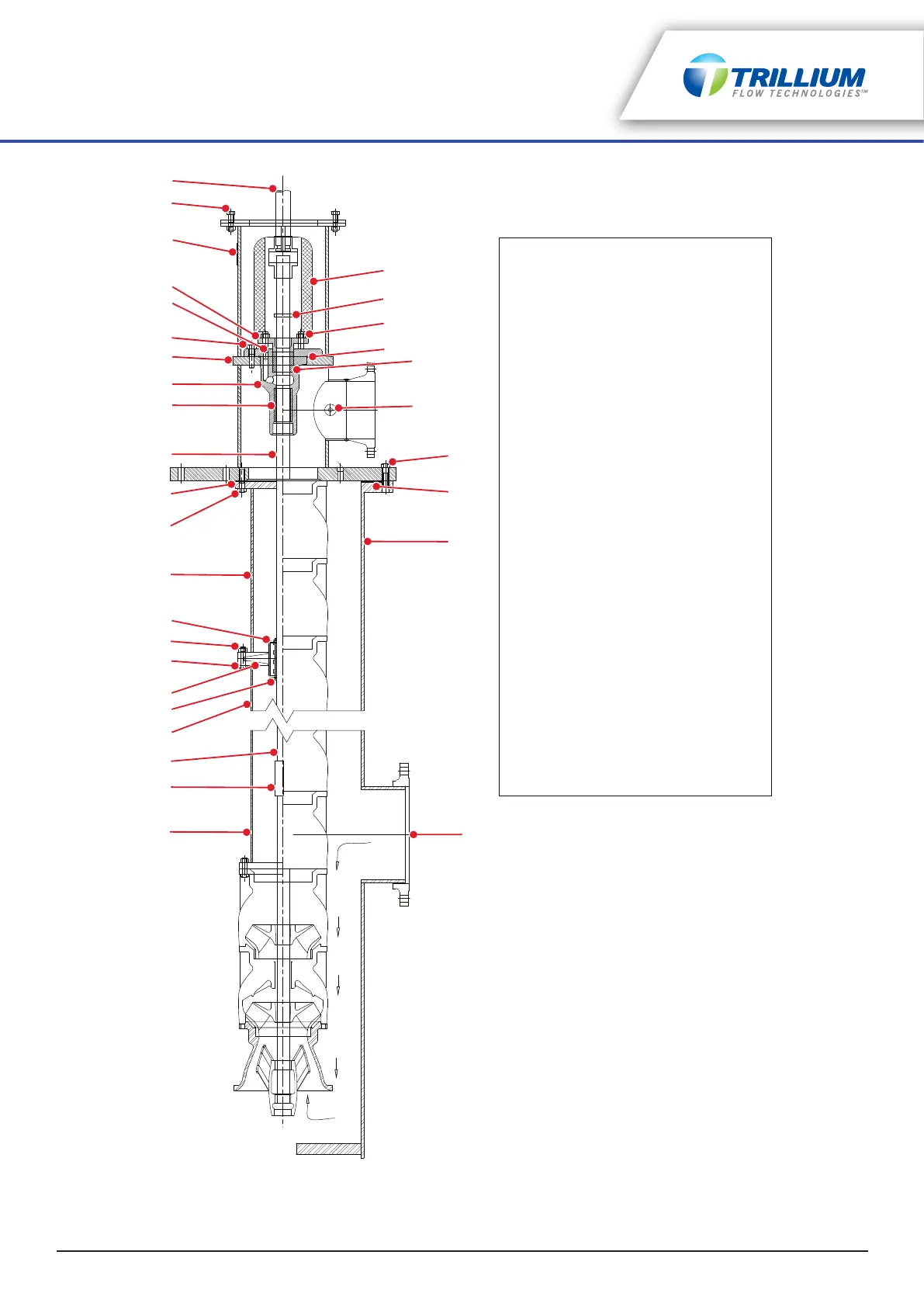

Figure 12-4: Type F and VF - Open Lineshaft
(illustrated with adjustable flange coupling without spacer and standard packing box)
11
12
13
20
21
22
23
24
25
26
27
28
29
30
31
32
19
18
17
16
15
14
10
9
8
7
6
5
4
3
2
1
1. Coupling Guard Assembly
2. Slinger
3. Packing Glands Studs and Nuts
4. Stuffing Box O-ring
5. Packing Rings
6. Pipe Plug
7. Mounting Flange Bolts or Studs
8. Mounting Flange Gasket
9. Suction Barrel
10. Suction Barrel Inlet (VF only)
11. Bottom Column Pipe
12. Shaft Coupling
13. Intermediate Lineshaft
14. Intermediate Column Pipe
15. Lineshaft Sleeve
16. Bearing Retainer
17. Column Flange Bolts
18. Column Flange Nuts
19. Lineshaft Bearing
20. Top Column Pipe
21. Top Column Flange Cap Screws
22. Stop Column Flange Gasket
23. Top Lineshaft
24. Stuffing Box Bearing
25. Stuffing Box
26. Discharge Head
27. Stuffing Box Cap Screws
28. Grease Zerk with Cover
29. Packing Gland
30. Nameplate with Driver Screws
31. Driver Nuts and Bolts
32. Driver Shaft
