Vertical Turbine Pumps
Parts List
Document Name: 2001299-VTP-IOM-EN Page 60 of 67
Revision 3 Copyright © 2014, Weir Floway, Inc. All Rights Reserved. Issue Date: December 12, 2014

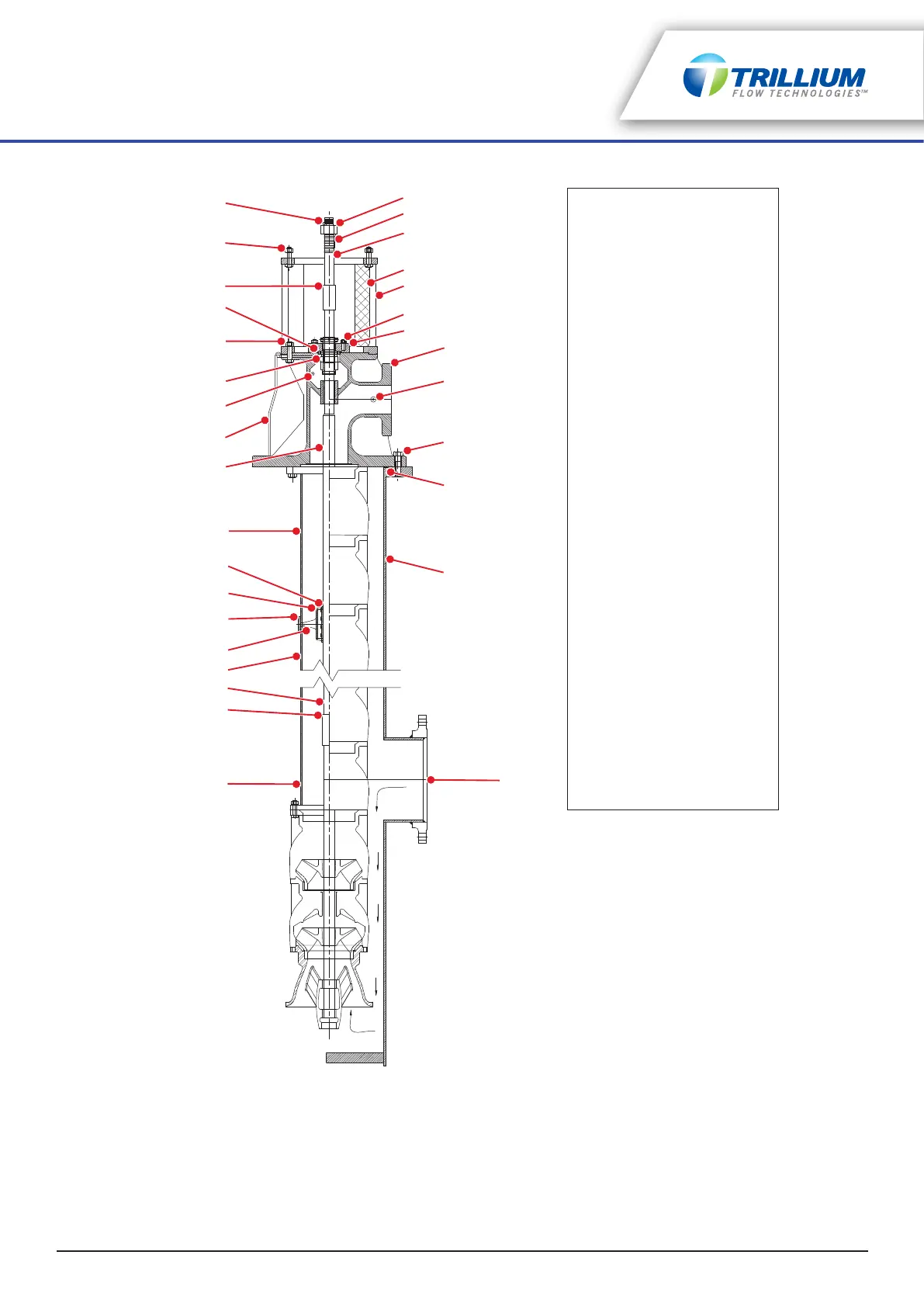

Figure 12-3: Type CF - Open Lineshaft
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
22
1. Headshaft Nut
2. Gib Key
3. Headshaft
4. Coupling Guard Assembly
5. Motor Stand
6. Seal Cover Cap Screws
7. Seal Housing Cover
8. Discharge Head
9. Pipe Plug
10. Mounting Flange Bolts or
Studs
11. Mounting Flange Gasket
12. Suction Barrel
13. Suction Barrel Inlet
14. Bottom Column Pipe
15. Shaft Coupling
16. Intermediate Lineshaft
17. Intermediate Column
Pipe
18. Bearing Retainer
19. Column Pipe Coupling
20. Lineshaft Bearing
21. Lineshaft Sleeve
22. Top Column Pipe
23. Top Lineshaft
24. By-pass with Fittings
25. Seal Housing Plug
26. Mechanical Seal Assembly
27. Motor Stand Bolts and
Nuts
28. Seal Cover Gasket or
O-ring
29. Shaft Coupling
30. Driver Nuts and Bolts
31. Headshaft Nut Lockscrew
To Next Page
